T3974-1
Aluminium & Thermoplastic EnclosuresEmpty Combination Boxes

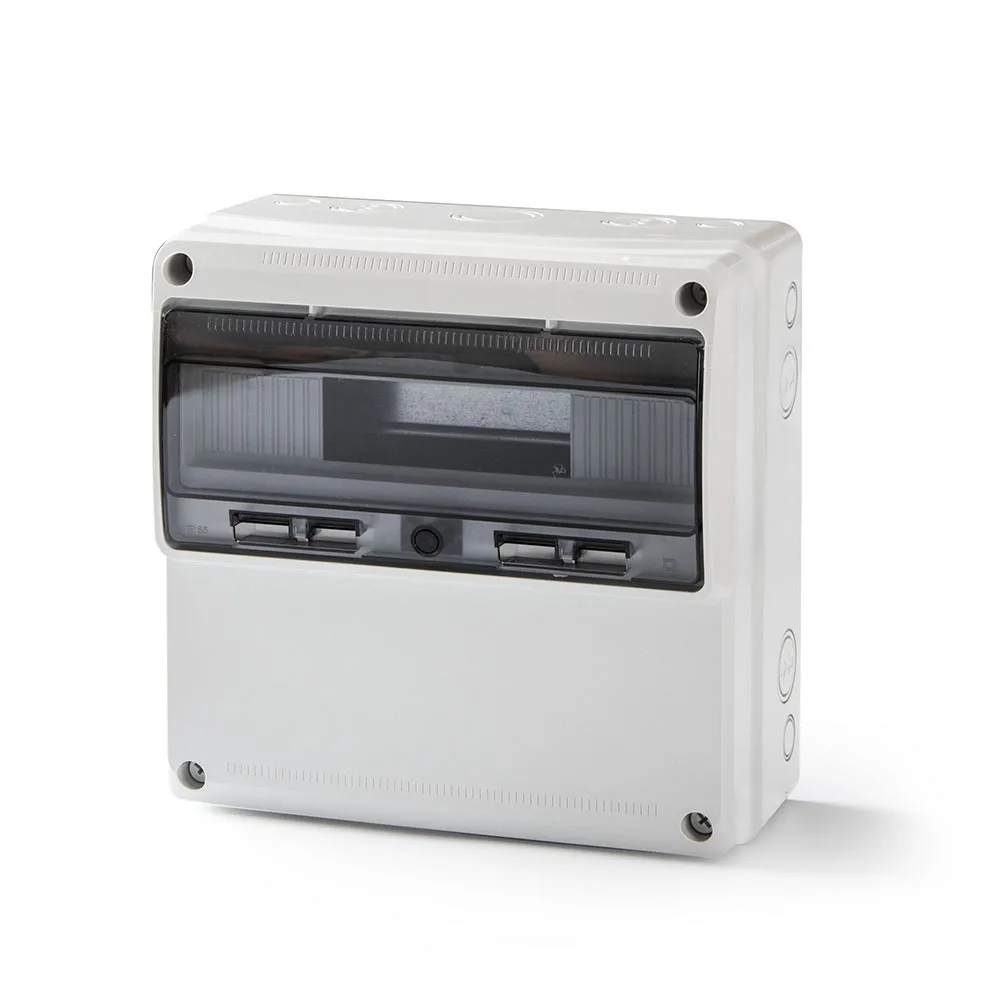

T3974 - Thermoplastic Combination Box 330x330x130mm IP65 Module No:16

Product Code
T3974
Product Name
Thermoplastic Combination Box
Outside Dimension Width (mm)
330
Outside Dimension Length (mm)
330

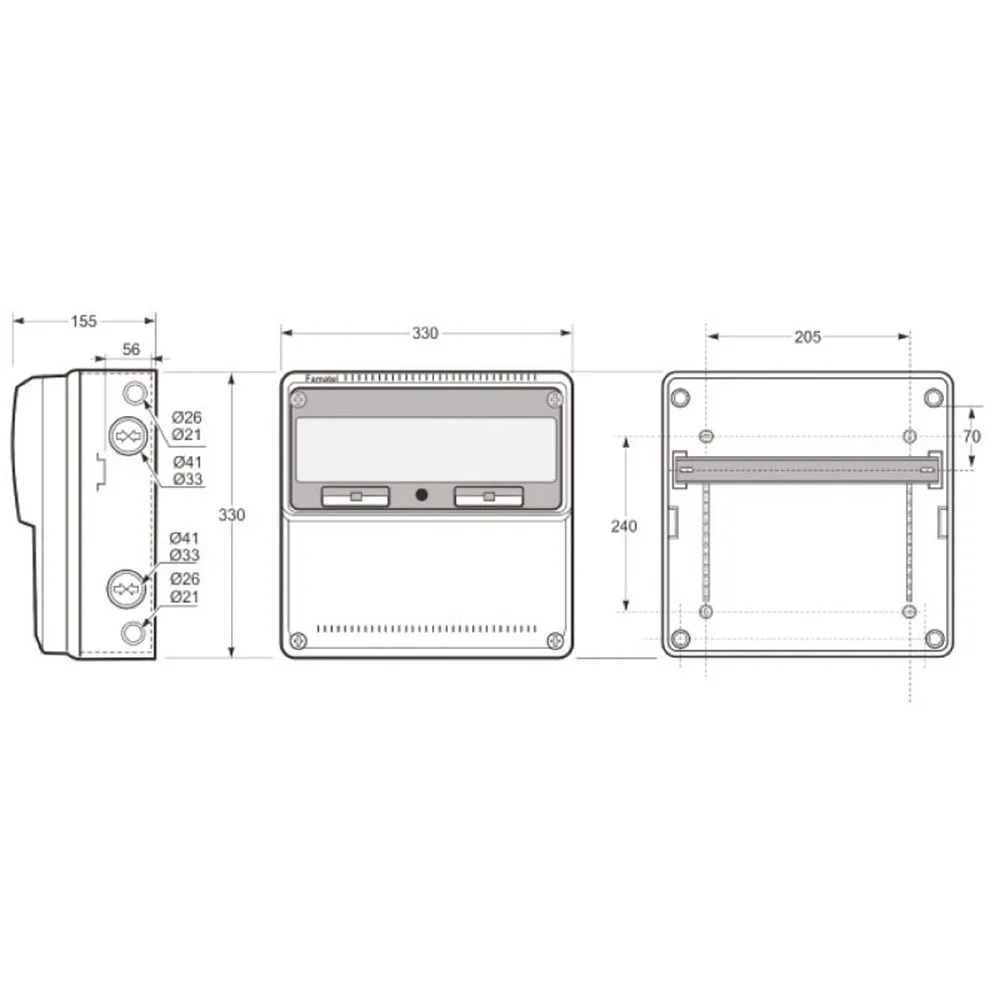

Thermoplastic Combination Box 330x330x130mm IP65 Module No:16 Product Name Thermoplastic Combination Box External Dimension Width (mm) 330 External Dimension Length (mm) 330 External Dimension Depth (mm) 130 Internal Dimension Width (mm) - Internal Dimension Length (mm) - Internal Dimension Depth (mm) - Horizontal Screwing Distance (mm) - Vertical Screwing Distance (mm) - Specifications 16 Module [...]

Product Code T3974
Product Name Thermoplastic Combination Box
Outside Dimension Width (mm) 330
Outside Dimension Length (mm) 330
Outside Dimension Depth (mm) 130
Inside Dimension Width (mm) -
Inside Dimension Length (mm) -
Inside Dimension Depth (mm) -
Horizontal Screwing Distance (mm) -
Vertical Screwing Distance (mm) -
Features 16 Modules
Cover Connection Type Stainless Steel Screw
Protection Class IP65
Impact Protection IK08
Gasket PU
Glow Wire Test Value 650ºC
Number of Cable Entries Top: 2 + 2 + 1 Bottom: 2 + 2 + 1 Side:2+ 2
Burst Cable Entry Size Top: 2 x Ø40-Ø32 + 2 x Ø25-Ø20 + 1 x Ø50-Ø40 Bottom: 2 x Ø40-Ø32 + 2 x Ø25-Ø20 + 1 x Ø50-Ø40 Side: 2 x Ø40-Ø32 + 2 x Ø25-Ø20
Included Accessories
Number of Modules 16
Terminal Rail Available
Number of Lockouts -
Color Gray RAL 7035
Operating Temperature HF ABS
Body Material HF ABS+ Transparent PC
Contact Material Grey - RAL 7044
Standard TSE
Number of Boxes 1
HS 8536.90.10.00.00
Country of Origin Spain
Document Not Found.
Certificate Not Found.
