T3951-1
Aluminum and Thermoplastic Junction PlugsEmpty Combination Boxes

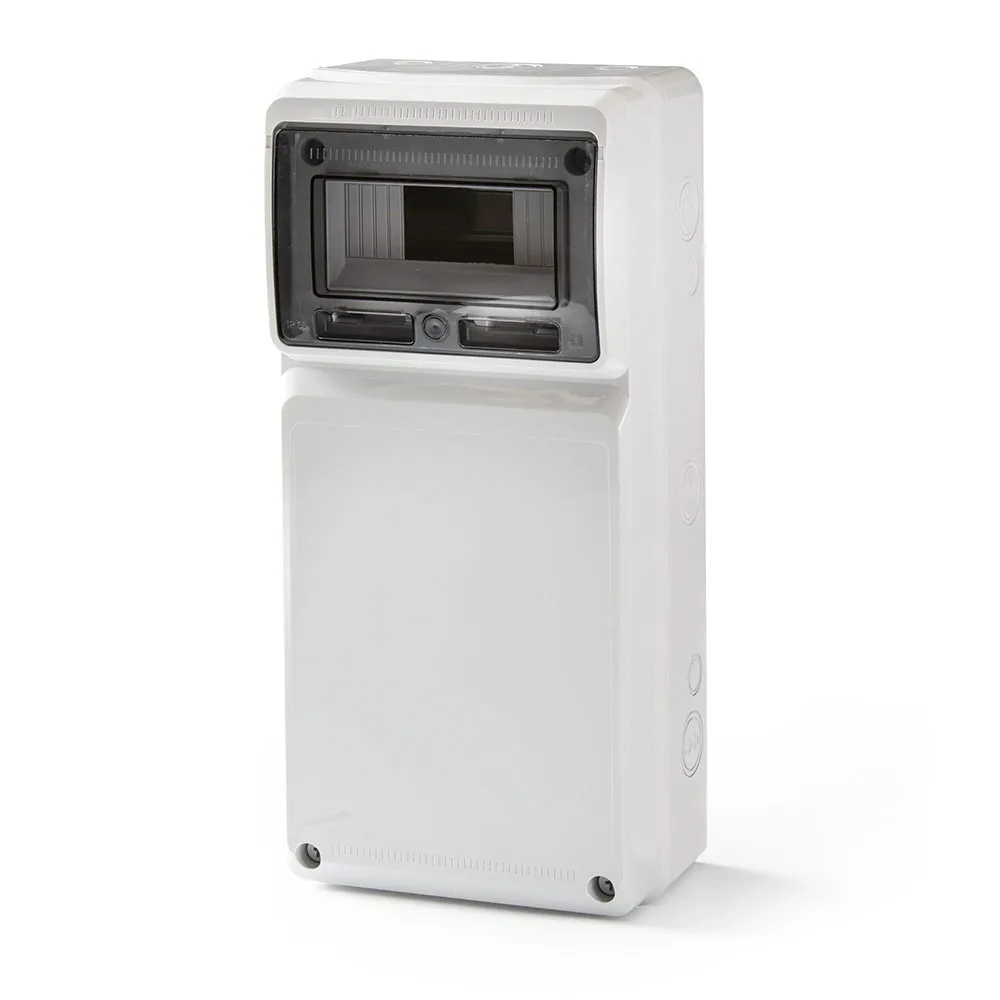

T3951 - Thermoplastic Combination Box 230x506x130mm IP65 Module No:8

Product Code
T3951
Product Name
Thermoplastic Combination Box

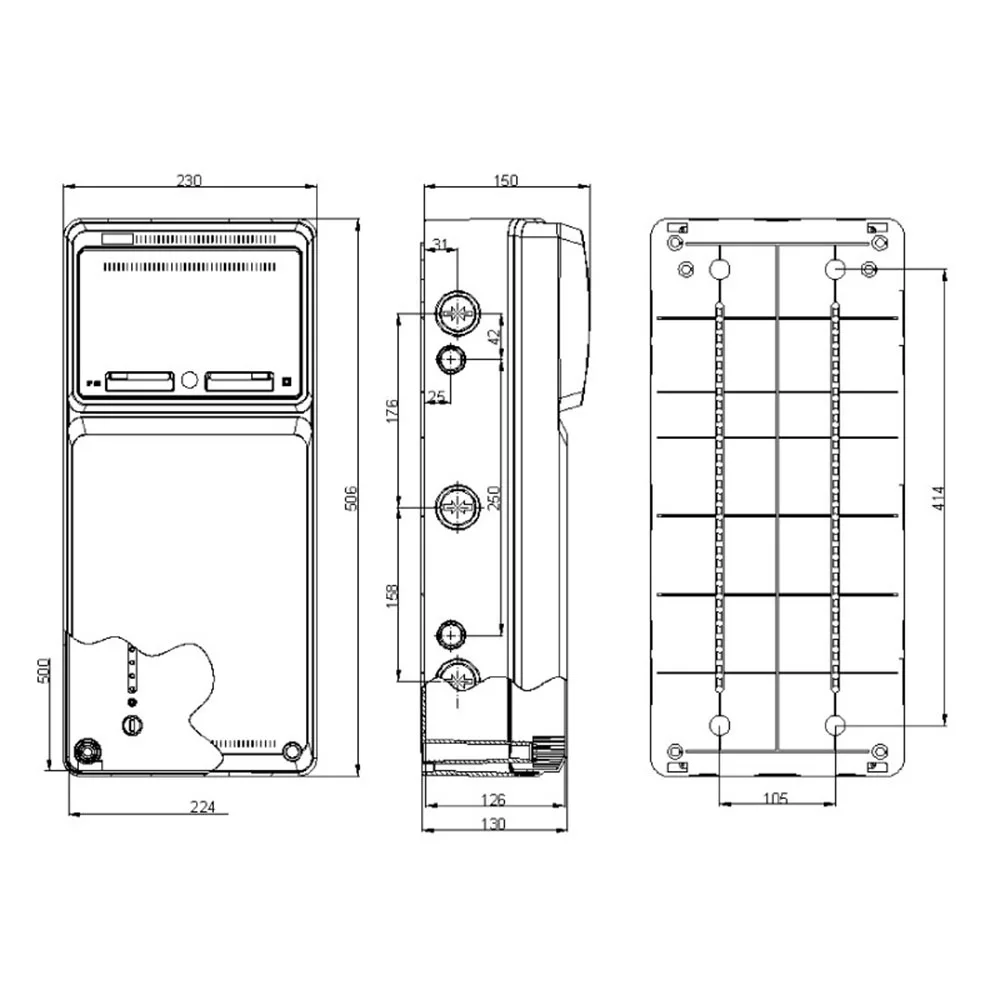

Outside Dimension Width (mm)
230
Outside Dimension Length (mm)
506

Thermoplastic Combination Box 230x506x130mm IP65 Module No:8 Product Name Thermoplastic Combination Box External Dimension Width (mm) 230 External Dimension Length (mm) 506 External Dimension Depth (mm) 130 Internal Dimension Width (mm) - Internal Dimension Length (mm) - Internal Dimension Depth (mm) - Horizontal Screwing Distance (mm) - Vertical Screwing Distance (mm) - Specifications 8 Module [...]

Product Code T3951
Product Name Thermoplastic Combination Box
Outside Dimension Width (mm) 230
Outside Dimension Length (mm) 506
Outside Dimension Depth (mm) 130
Inside Dimension Width (mm) -
Inside Dimension Length (mm) -
Inside Dimension Depth (mm) -
Horizontal Screwing Distance (mm) -
Vertical Screwing Distance (mm) -
Features 8 Modules
Cover Connection Type Stainless Steel Screw
Protection Class IP65
Impact Protection IK08
Gasket PU
Glow Wire Test Value 650ºC
Number of Cable Entries Top:2+1 Bottom:2+1 Side:3+2
Burst Cable Entry Size Top: 2 x Ø25 - Ø20 + 1 x Ø50 - Ø40 Bottom: 2 x Ø25 - Ø20 + 1 x Ø50 - Ø40 Side: 3 x Ø40 - Ø32 + 2 x Ø25 - Ø20
Included Accessories
Number of Modules 8
Terminal Rail Available
Number of Lockouts -
Color Gray RAL 7035
Operating Temperature HF ABS
Body Material HF ABS+ Transparent PC
Contact Material Grey - RAL 7044
Standard TSE
Number of Boxes 6
HS 8536.90.10.00.00
Country of Origin Spain
Document Not Found.
Certificate Not Found.
