T3950-1
Aluminium & Thermoplastic EnclosuresEmpty Combination Boxes

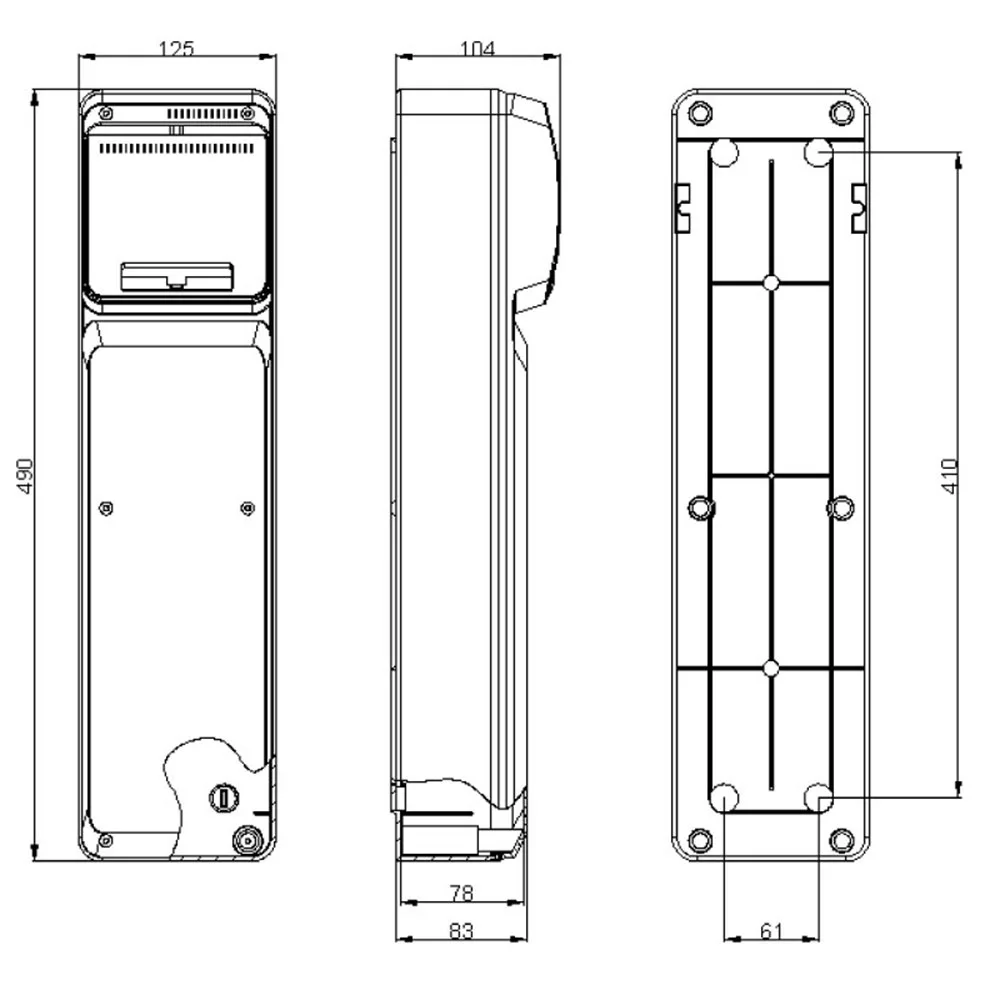

T3950 - Thermoplastic Combination Box 125x495x110mm IP65 Module No:6

Product Code
T3950
Product Name
Thermoplastic Combination Box
Outside Dimension Width (mm)
125
Outside Dimension Length (mm)
495

Thermoplastic Combination Box 125x495x110mm IP65 Module No:6 Product Name Thermoplastic Combination Box External Dimension Width (mm) 125 External Dimension Length (mm) 495 External Dimension Depth (mm) 110 Internal Dimension Width (mm) - Internal Dimension Length (mm) - Internal Dimension Depth (mm) - Horizontal Screwing Distance (mm) - Vertical Screwing Distance (mm) - Specifications 6 Module [...]

Product Code T3950
Product Name Thermoplastic Combination Box
Outside Dimension Width (mm) 125
Outside Dimension Length (mm) 495
Outside Dimension Depth (mm) 110
Inside Dimension Width (mm) -
Inside Dimension Length (mm) -
Inside Dimension Depth (mm) -
Horizontal Screwing Distance (mm) -
Vertical Screwing Distance (mm) -
Features 6 Modules
Cover Connection Type Stainless Steel Screw
Protection Class IP65
Impact Protection IK08
Gasket PU
Glow Wire Test Value 650ºC
Number of Cable Entries Top:1 Bottom:1
Burst Cable Entry Size Top: 1 x Ø25/32 Bottom: 1 x Ø25/32
Included Accessories
Number of Modules 6
Terminal Rail Available
Number of Lockouts -
Color Gray RAL 7035
Operating Temperature HF ABS
Body Material HF ABS+ Transparent PC
Contact Material Grey - RAL 7044
Standard TSE
Number of Boxes 18
HS 8536.90.10.00.00
Country of Origin Spain
Document Not Found.
Certificate Not Found.
