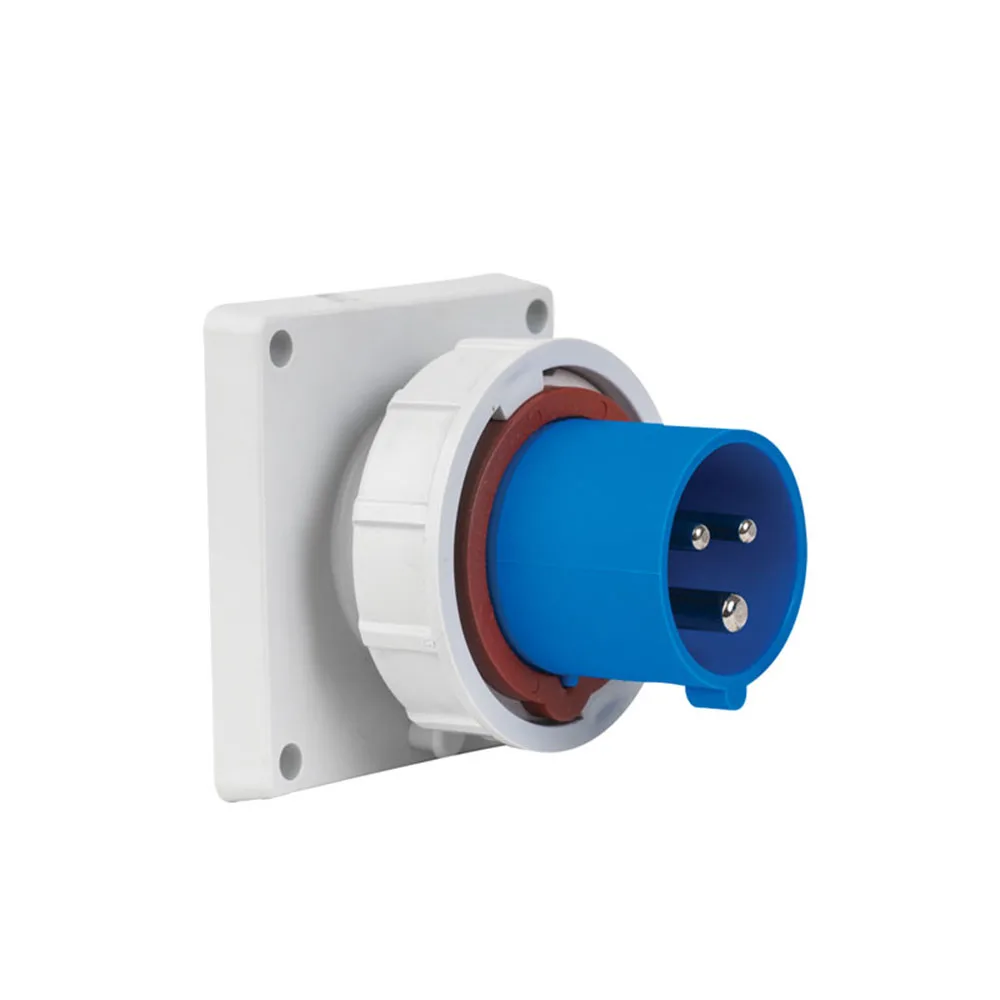

T28063V - CEE Machine Plug (Straight) 16A 220-240V 2p+PE 6h IP67 Screw Connection (85mmx85mm)

Product Code
T28063V
Product Description
Machine Receipt (Flat)
Connection Type
Screw Connection
Current (A)
16A

CEE Machine Plug (Straight) 16A 220-240V 2p+PE 6 h IP67 Screw Connection (85mmx85mm) Product Description Machine Plug (Straight) Connection Type Screw Connection Current (A) 16A Number of Contacts (P99) 3p Voltage (V) 220-240V Number of Contacts (P) 2p+PE Protection Class IP67 Ground Contact Position (h) 6 h Frequency (HZ) 50-60Hz Cable Entry Rear Entry Min Cable Cross Section [...]

Product Code T28063V
Product Description Machine Receipt (Flat)
Connection Type Screw Connection
Current (A) 16A
Number of Contacts (P99) 3p
Voltage (V) 220-240V
Number of Contacts (P) 2p+PE
Protection Class IP67
Ground Contact Position (h) 6 h
Frequency (HZ) 50-60Hz
Cable Entry Rear Entrance
Min Cable Cross Section (mm²) 1mm²
Max Cable Cross Section (mm²) 2.5mm²

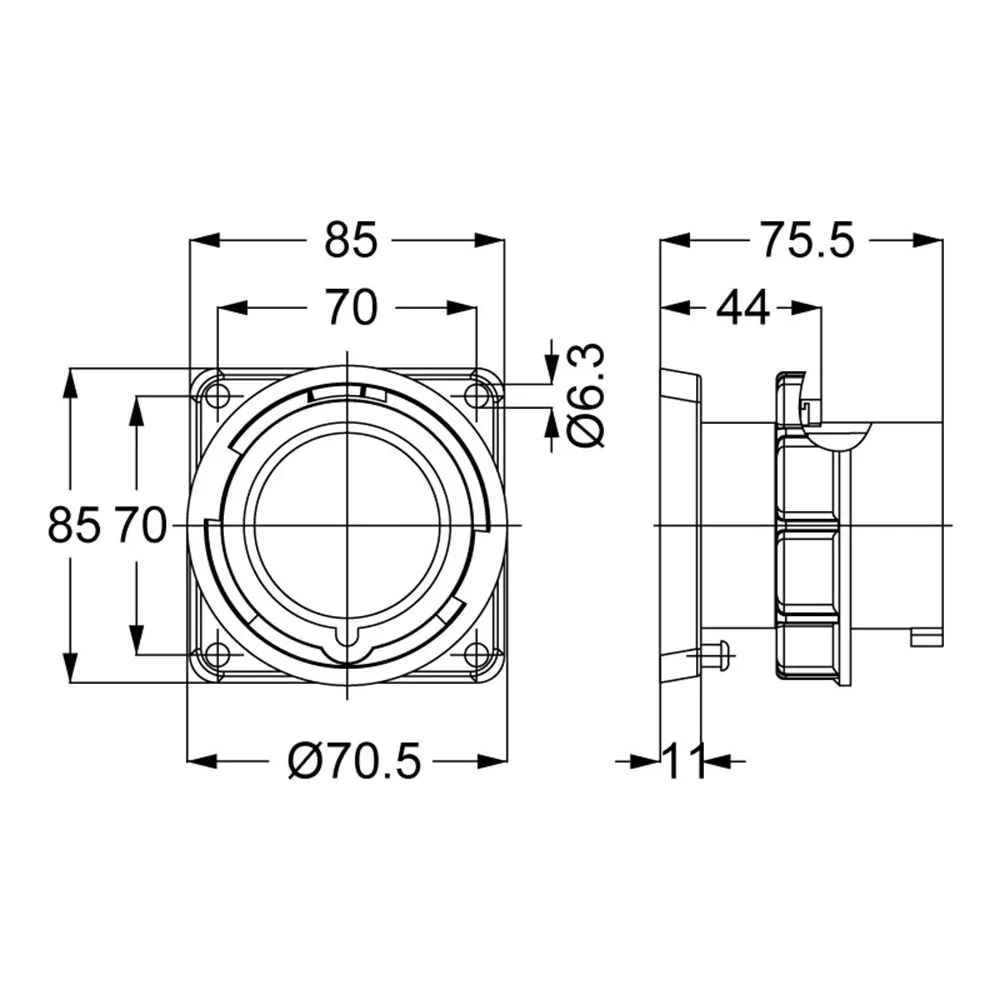

Length (mm) 85mm
Width (mm) 85mm
Depth (mm) 77mm
Horizontal Flange Size (mm) 85mm
Vertical Flange Dimension (mm) 85mm
Vertical Screwing Distance (mm) 70mm
Horizontal Screwing Distance (mm) 70mm
Body Dimension (mm) -
Color Blue RAL 5015
Contact Material Nickel Plated Brass
Body Material Polyamide
Standard TSE | CE
Weight/pcs (kg) 0.179 kg / Piece
Number of Boxes 10
HS 8536.69.90.00.18
Origin Germany
Document Not Found.
Certificate Not Found.
