T24402-1
CEE Norm Plugs & SocketsPlugsMETECEEBALS

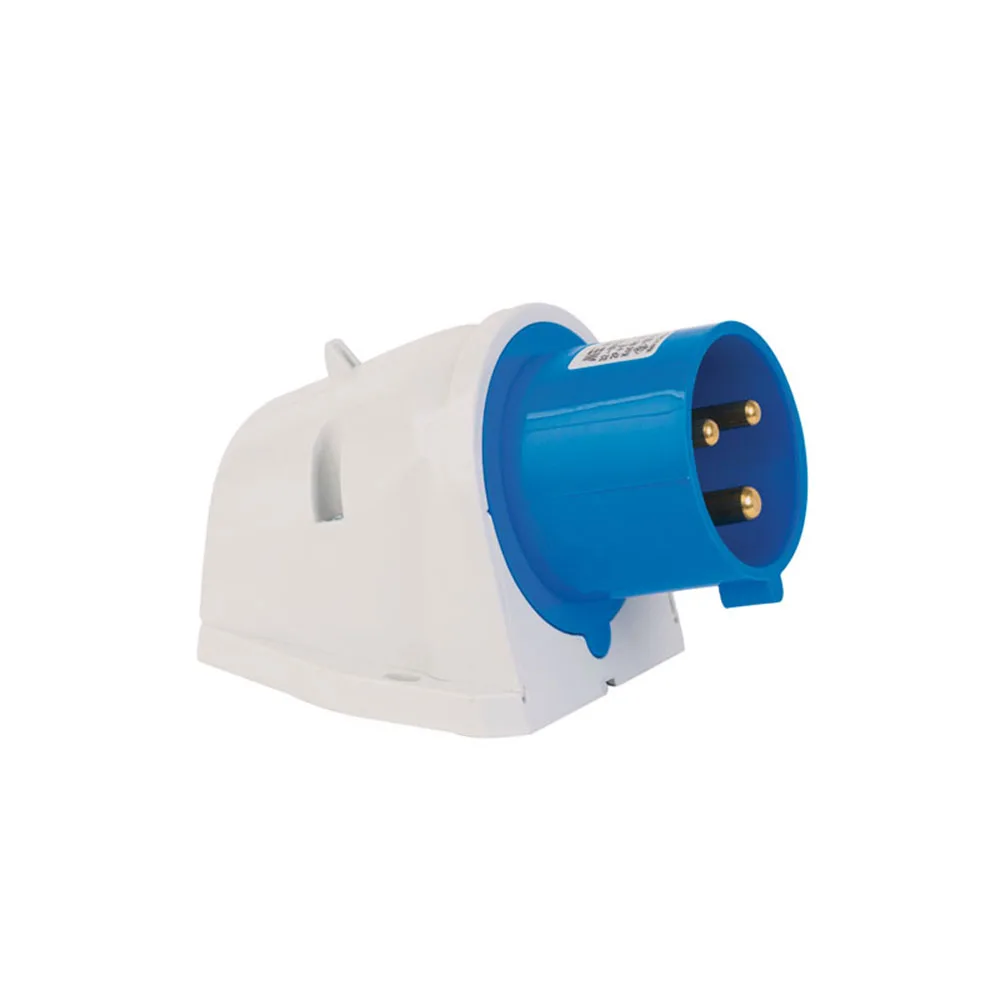

T24402 - CEE Wall Plug (Oblique Body) 32A 220-240V 2P+PE 6 h IP44 Fast Connection

Product Code
T24402
Product Description
Wall Plug (Oblique Body)
Connection Type
Fast Connection
Current (A)
32A

CEE Wall Plug (Oblique Body) 32A 220-240V 2P+PE 6 h IP44 Quick Connect Product Description Wall Plug (Oblique Body) Connection Type Quick Connect Current (A) 32A Number of Contacts (P99) 3p Voltage (V) 220-240V Number of Contacts (P) 2P+PE Protection Class IP44 Ground Contact Position (h) 6 h Frequency (HZ) 50-60Hz Cable Entry Top Entry M25 Min [...]

Product Code T24402
Product Description Wall Plug (Oblique Body)
Connection Type Fast Connection
Current (A) 32A
Number of Contacts (P99) 3p
Voltage (V) 220-240V
Number of Contacts (P) 2P+PE
Protection Class IP44
Ground Contact Position (h) 6 h
Frequency (HZ) 50-60Hz
Cable Entry Top Entry M25
Min Cable Cross Section (mm²) 2.5mm²
Max Cable Cross Section (mm²) 6mm²

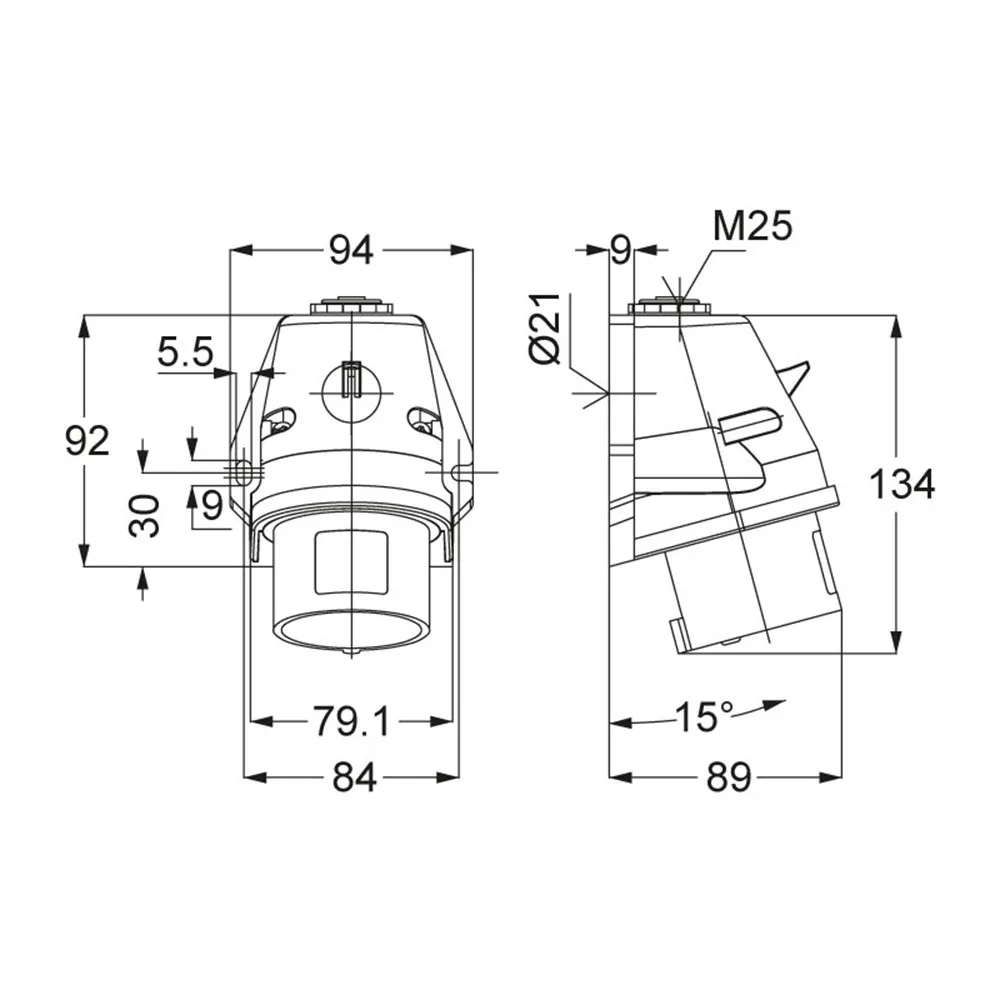

Length (mm) 133mm
Width (mm) 94mm
Depth (mm) 87mm
Horizontal Flange Size (mm)
Vertical Flange Dimension (mm) -
Vertical Screwing Distance (mm) -
Horizontal Screwing Distance (mm) -
Body Dimension (mm) 92x94 mm (HxW)
Color Blue RAL 5015
Contact Material Rice
Body Material Polyamide
Standard TSE | CE
Weight/pcs (kg) 0.231 kg / Piece
Number of Boxes 10
HS 8536.69.90.00.18
Origin Germany
Document Not Found.
Certificate Not Found.
