T2252V-1
CEE Norm Plugs and SocketsPhase Converter PlugsMETECEEBALS

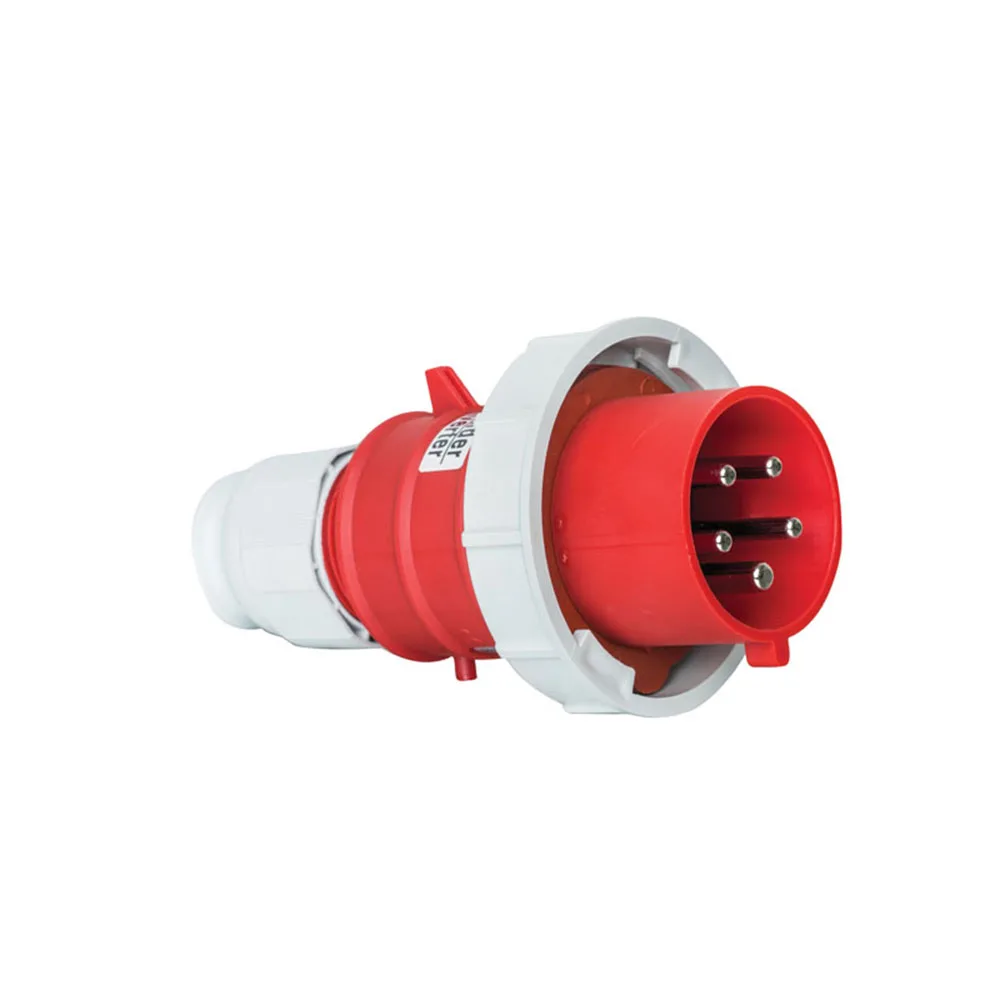

T2252V - CEE Phase Converter Plug 32A 220/380-240/415V 3P+N+PE 6 h IP67 Screw Connection

Product Code
T2252V
Product Description
Phase Converter Plug
Connection Type
Screw Connection
Current (A)
32A

CEE Phase Converter Plug 32A 220/380-240/415V 3P+N+PE 6 h IP67 Screw Connection Product Description Phase Converter Plug Connection Type Screw Connection Current (A) 32A Number of Contacts (P99) 5p Voltage (V) 220/380-240/415V Number of Contacts (P) 3P+N+PE Protection Class IP67 Ground Contact Position (h) 6 h Frequency (HZ) 50-60Hz Cable Entry Cable Gland Min Cable Cross Section (mm²) [...]

Product Code T2252V
Product Description Phase Converter Plug
Connection Type Screw Connection
Current (A) 32A
Number of Contacts (P99) 5p
Voltage (V) 220/380-240/415V
Number of Contacts (P) 3P+N+PE
Protection Class IP67
Ground Contact Position (h) 6 h
Frequency (HZ) 50-60Hz
Cable Entry Cable Gland
Min Cable Cross Section (mm²) 2.5mm²
Max Cable Cross Section (mm²) 6mm²

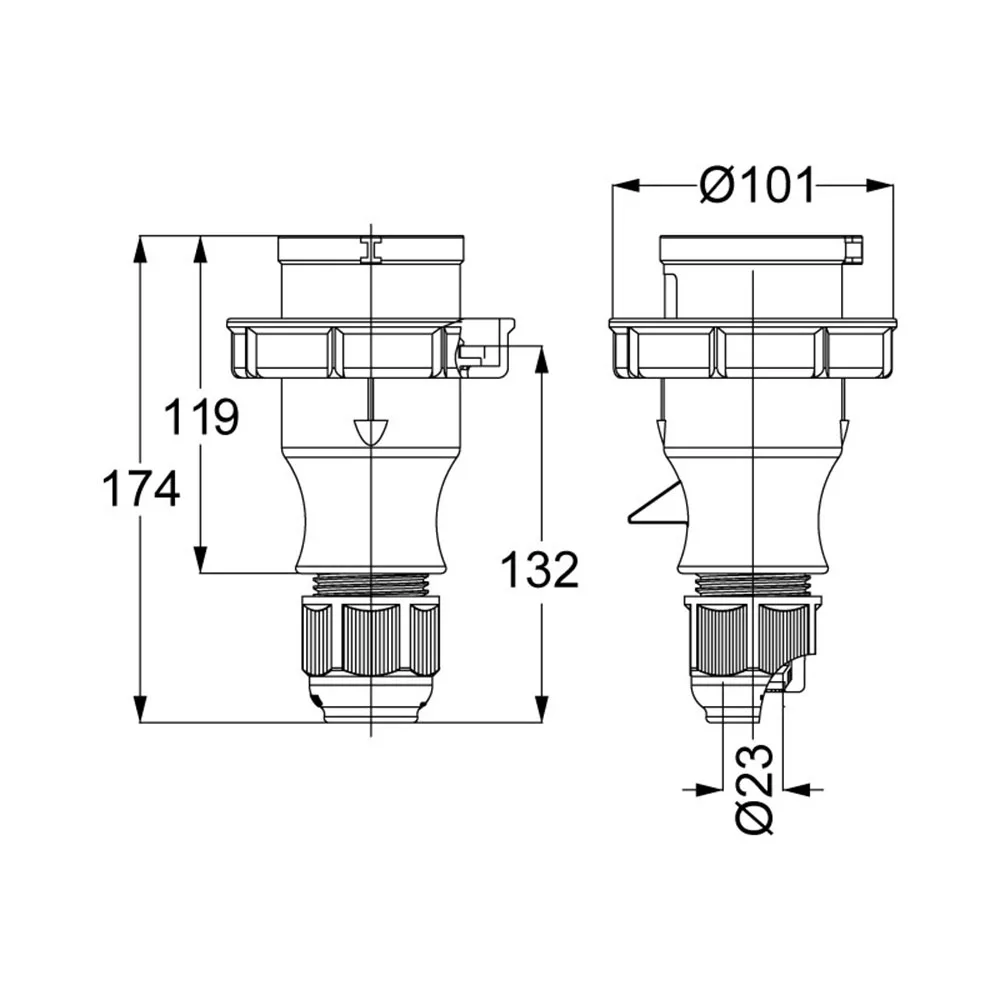

Length (mm) 182mm
Width (mm) 102mm
Depth (mm) 102mm
Horizontal Flange Size (mm) -
Vertical Flange Dimension (mm) -
Vertical Screwing Distance (mm) -
Horizontal Screwing Distance (mm) -
Body Dimension (mm) -
Color Red RAL 3000
Contact Material Nickel Plated Brass
Body Material Polyamide
Standard TSE | CE
Weight/pcs (kg) 0.358 kg / Piece
Number of Boxes 10
HS 8536.69.90.00.18
Origin Germany
Document Not Found.
Certificate Not Found.
