T146-1
CEE Norm Plugs & SocketsMETECEEBALSSurface-Mounted Receptacles

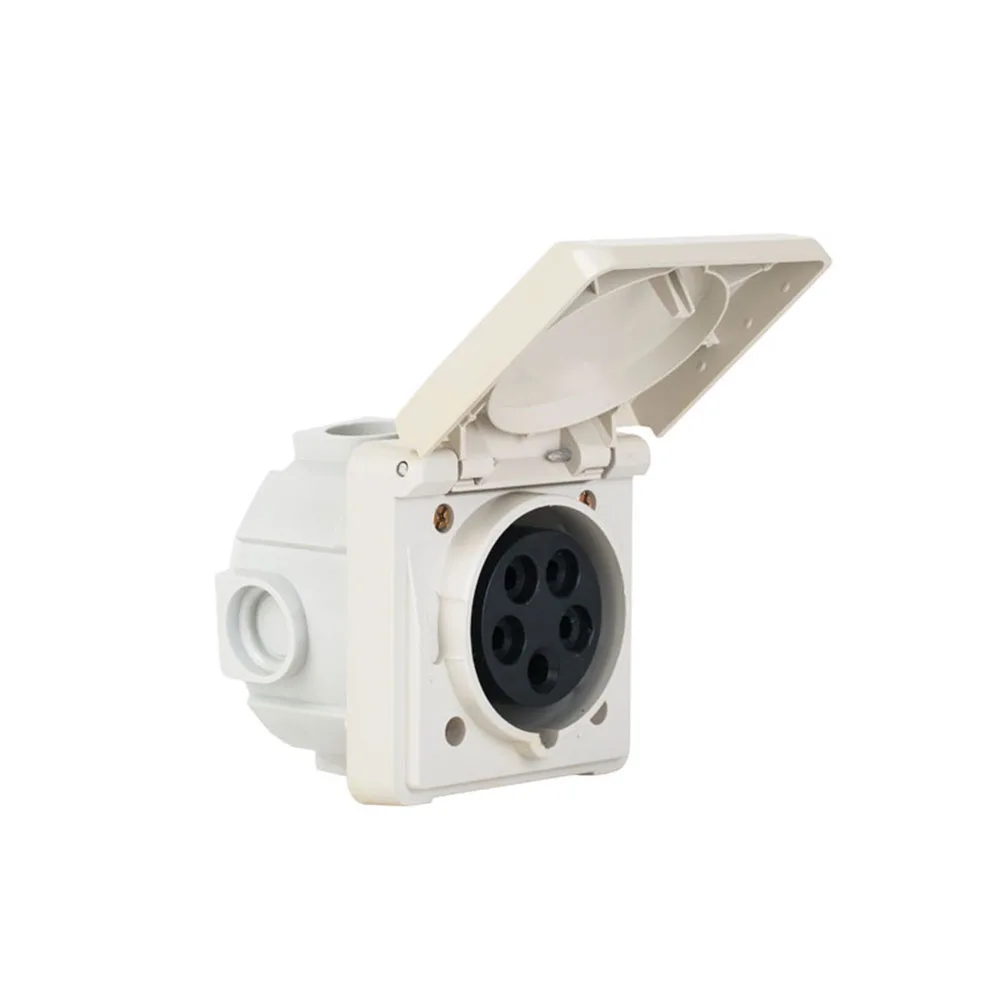

T146 - CEE Recessed Socket 16A 220/380-240/415V 3P+N+PE 6 h IP44 Screw Connection (91mmx91mm)

Product Code
T146
Product Description
Recessed Socket
Connection Type
Screw Connection
Current (A)
16A

CEE Recessed Receptacle 16A 220/380-240/415V 3P+N+PE 6 h IP44 Screw Connection (91mmx91mm) Product Description Recessed Receptacle Connection Type Screw Connection Current (A) 16A Number of Contacts (P99) 5p Voltage (V) 220/380-240/415V Number of Contacts (P) 3P+N+PE Protection Class IP44 Ground Contact Location (h) 6 h Frequency (HZ) 50-60Hz Cable Entry Rear Entry Min Cable Cross Section [...]

Product Code T146
Product Description Recessed Socket
Connection Type Screw Connection
Current (A) 16A
Number of Contacts (P99) 5p
Voltage (V) 220/380-240/415V
Number of Contacts (P) 3P+N+PE
Protection Class IP44
Ground Contact Position (h) 6 h
Frequency (HZ) 50-60Hz
Cable Entry Rear Entrance
Min Cable Cross Section (mm²) 1.5mm²
Max Cable Cross Section (mm²) 4mm²

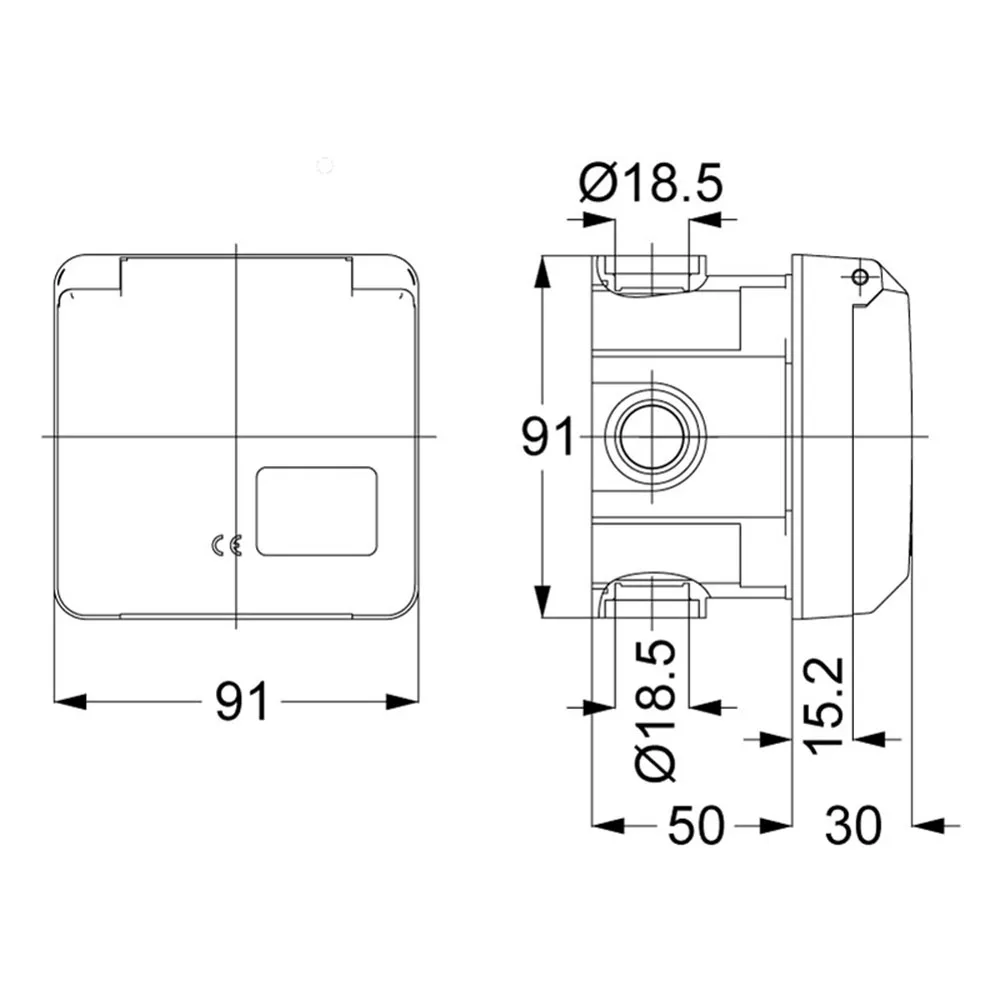

Length (mm) 91mm
Width (mm) 91mm
Depth (mm) 80mm
Horizontal Flange Size (mm) 91mm
Vertical Flange Dimension (mm) 91mm
Vertical Screwing Distance (mm) 53mm
Horizontal Screwing Distance (mm) 53mm
Body Dimension (mm) -
Color Gray RAL 7035
Contact Material Rice
Body Material Polyamide
Standard TSE | CE
Weight/pcs (kg) 0.244 kg / Piece
Number of Boxes 10
HS 8536.69.90.00.18
Origin Germany
Document Not Found.
Certificate Not Found.
