T1186-1
CEE Norm Plugs and SocketsMETECEEBALSSurface-Mounted Receptacles

T1186 - CEE Surface Mounted Socket 16A 220/380-240/415V 3p+N+PE 6h IP44 Fast Connection

Product Code
T1186
Product Description
Surface Mounted Socket
Connection Type
Fast Connection
Current (A)
16A

CEE Surface Mounted Receptacle 16A 220/380-240/415V 3p+N+PE 6 h IP44 Quick Connect Product Description Surface Mounted Receptacle Connection Type Quick Connect Current (A) 16A Number of Contacts (P99) 5p Voltage (V) 220/380-240/415V Number of Contacts (P) 3p+N+PE Protection Class IP44 Ground Contact Position (h) 6 h Frequency (HZ) 50-60Hz Cable Entry Top Entry Min Cable Cross Section (mm²) [...] [...

Product Code T1186
Product Description Surface Mounted Socket
Connection Type Fast Connection
Current (A) 16A
Number of Contacts (P99) 5p
Voltage (V) 220/380-240/415V
Number of Contacts (P) 3p+N+PE
Protection Class IP44
Ground Contact Position (h) 6 h
Frequency (HZ) 50-60Hz
Cable Entry Top Entrance
Min Cable Cross Section (mm²) 1.5mm²
Max Cable Cross Section (mm²) 4mm²

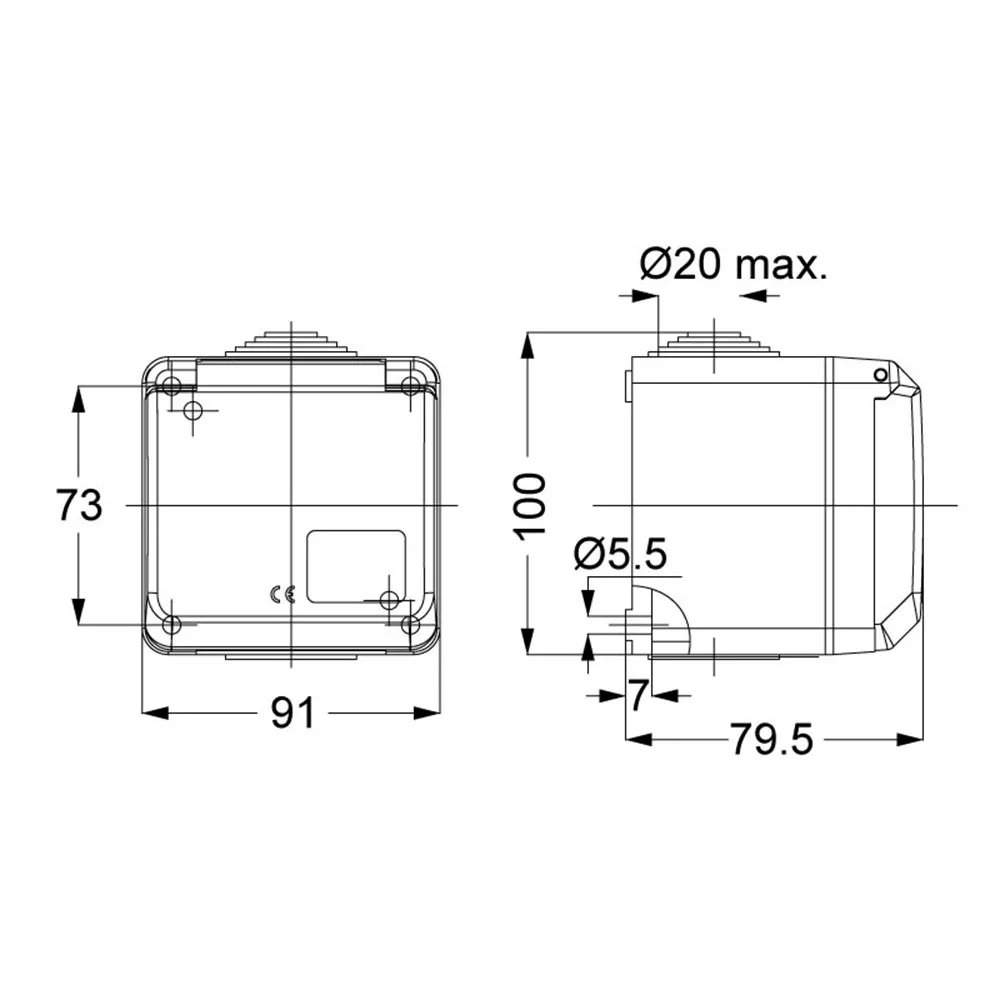

Length (mm) 100mm
Width (mm) 91mm
Depth (mm) 79.5mm
Horizontal Flange Size (mm) -
Vertical Flange Dimension (mm) -
Vertical Screwing Distance (mm) -
Horizontal Screwing Distance (mm) -
Body Dimension (mm) 91x91 mm
Color Red RAL 3000
Contact Material Rice
Body Material Polyamide
Standard TSE | CE
Weight/pcs (kg) 0.268 kg / Piece
Number of Boxes 10
HS 8536.69.90.00.18
Origin Germany
Document Not Found.
Certificate Not Found.
