T11190 - CEE Surface Mounted Socket 32A 380-415V 3P+N+PE 6 h IP44 Fast Connection

Product Code
T11190
Product Description
Surface Mounted Socket
Connection Type
Fast Connection
Current (A)
32A

CEE Surface Mounted Receptacle 32A 380-415V 3P+N+PE 6 h IP44 Quick Connect Product Description Surface Mounted Receptacle Connection Type Quick Connect Current (A) 32A Number of Contacts (P99) 5p Voltage (V) 380-415V Number of Contacts (P) 3P+N+PE Protection Class IP44 Ground Contact Location (h) 6 h Frequency (HZ) 50-60Hz Cable Entry - Min Cable Cross Section (mm²) - [...]

Product Code T11190
Product Description Surface Mounted Socket
Connection Type Fast Connection
Current (A) 32A
Number of Contacts (P99) 5p
Voltage (V) 380-415V
Number of Contacts (P) 3P+N+PE
Protection Class IP44
Ground Contact Position (h) 6 h
Frequency (HZ) 50-60Hz
Cable Entry -
Min Cable Cross Section (mm²) -
Max Cable Cross Section (mm²) -
Length (mm) -
Width (mm) -
Depth (mm) -
Horizontal Flange Size (mm) -
Vertical Flange Dimension (mm) -
Vertical Screwing Distance (mm) -
Horizontal Screwing Distance (mm) -

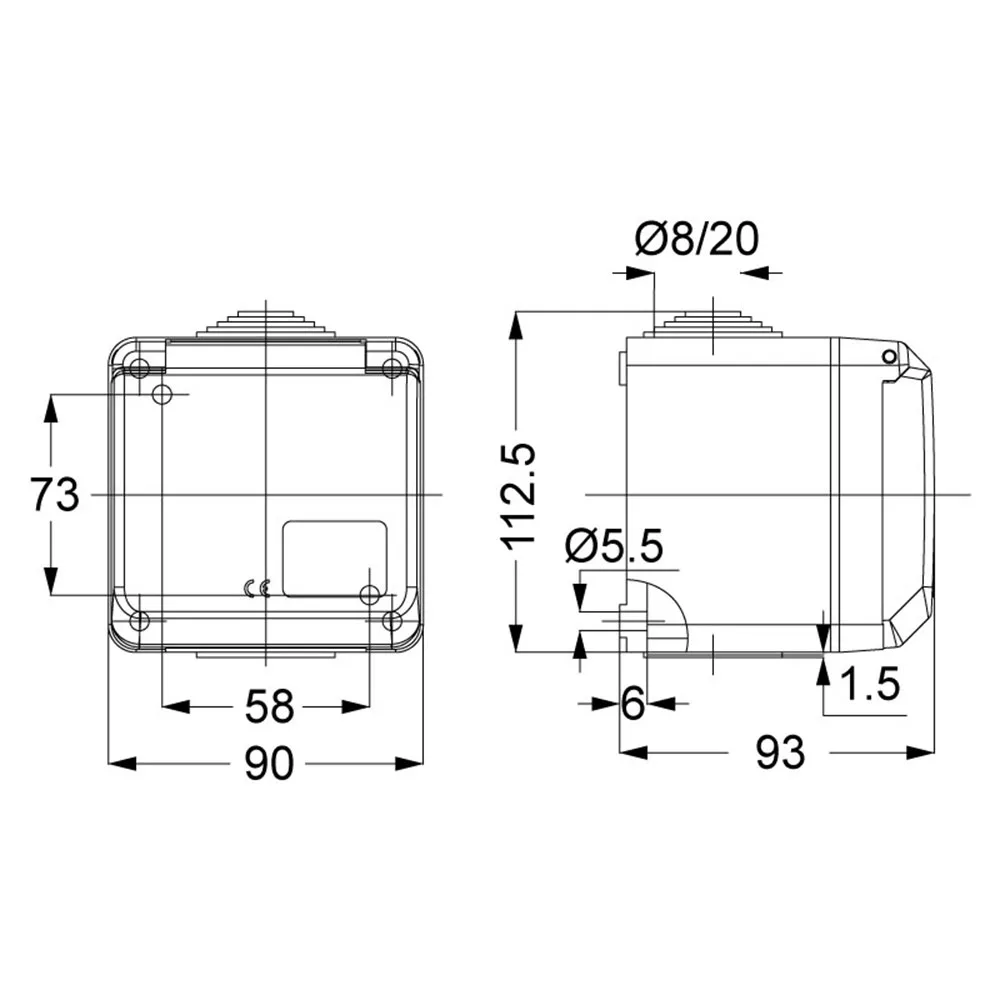

Body Dimension (mm) 90x90 mm
Color Red/White
Contact Material Rice
Body Material Polyamide
Standard TSE | CE
Weight/pcs (kg) -
Number of Boxes 10
HS 8536.69.90.00.18
Origin Germany
Document Not Found.
Certificate Not Found.
