AExe402540 - Atex Aluminium Junction Box

Product Code
AExe402540
Product Name
Atex Aluminium Junction Box

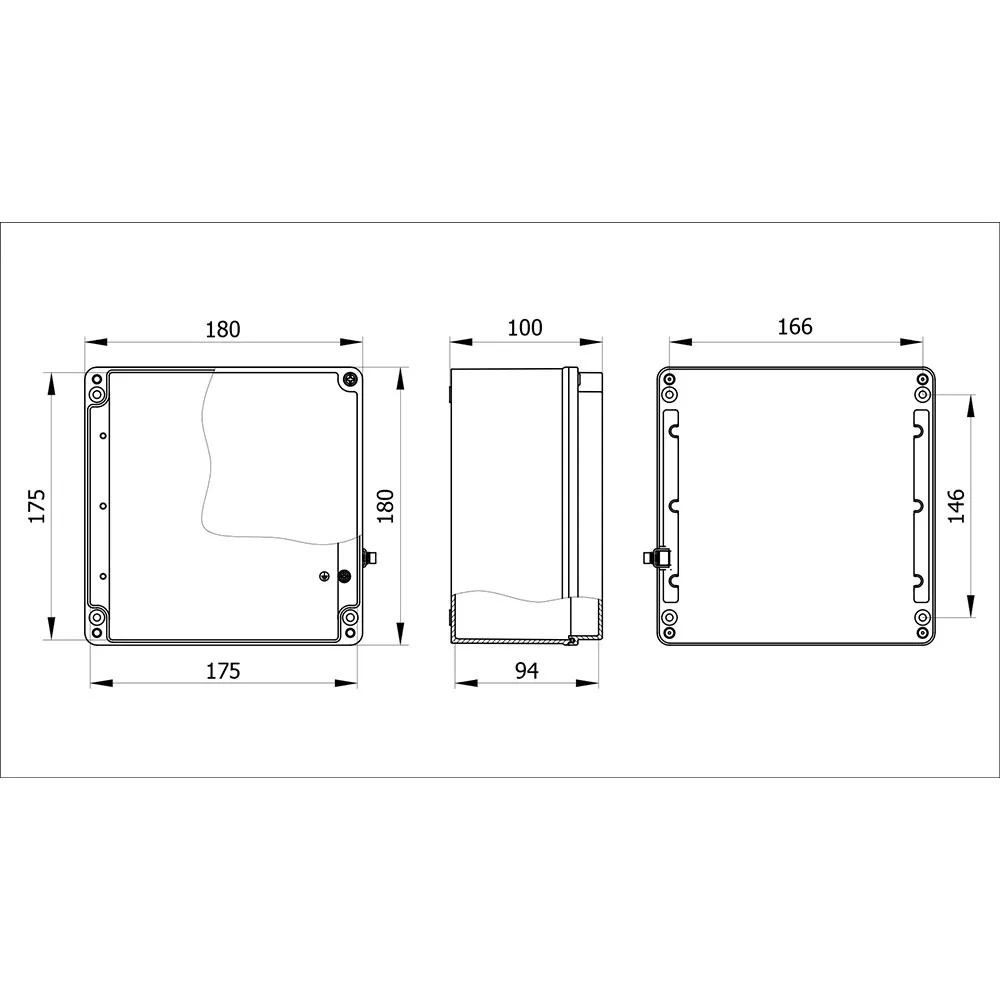

Outside Dimension Width (mm)
180
Outside Dimension Length (mm)
180

Atex Aluminium Junction Box Product Name Atex Aluminium Junction Box Outside Dimension Width (mm) 180 Outside Dimension Length (mm) 180 Outside Dimension Depth (mm) 100 Inside Dimension Width (mm) 175 Inside Dimension Length (mm) 175 Inside Dimension Depth (mm) 94 Horizontal Screwing Distance (mm) 3A Vertical Screwing Distance (mm) 3A Specifications 3A Cover Connection Type Screwed Protection [...]

Product Code AExe402540
Product Name Atex Aluminium Junction Box
Outside Dimension Width (mm) 180
Outside Dimension Length (mm) 180
Outside Dimension Depth (mm) 100
Inside Dimension Width (mm) 175
Inside Dimension Length (mm) 175
Inside Dimension Depth (mm) 94
Horizontal Screwing Distance (mm) 3A
Vertical Screwing Distance (mm) 3A
Features 3A
Cover Connection Type Screw
Protection Class IP67
Impact Protection IK09
Gasket 70 NBR Oring
Glow Wire Test Value
Number of Cable Entries
Burst Cable Entry Size
Included Accessories
Number of Modules
Terminal Rail
Number of Lockouts
Color Gray
Operating Temperature -20 °C / +60 °C
Body Material Aluminium
Contact Material Grey - RAL 7044
Standard IEC 61984 / UL 1977
Number of Boxes 5
HS 7616.99.10.10.00
Country of Origin Turkey
Document Not Found.
Certificate Not Found.
