Product Code
70035050B003
Product Name

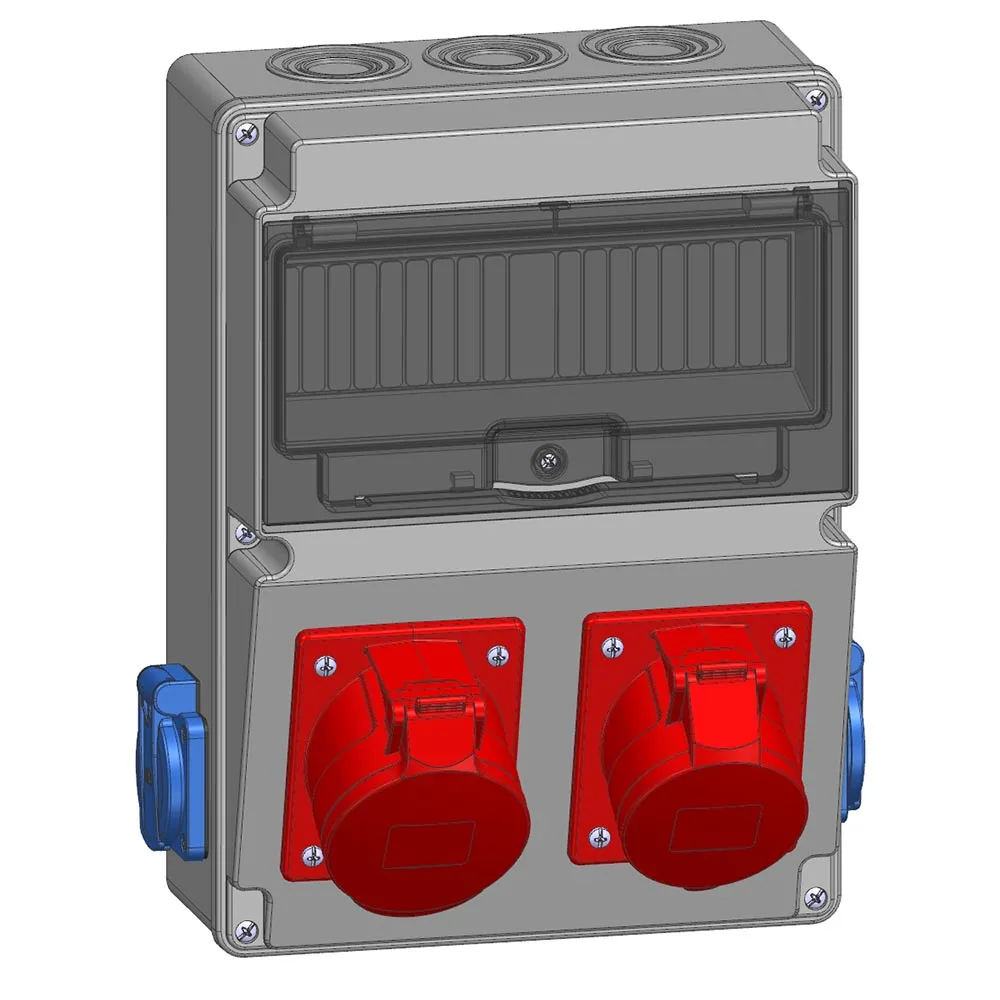

Assembled Combination Box
Front 1 - Socket
406509V 5x16A IP44 Oblique Machine Socket
Front 2 - Socket
406509V 5x16A IP44 Oblique Machine Socket
Side 1 - Socket
40401616ST06 1x16A Panel Socket-IP44
Side 2 - Socket
40401616ST06 1x16A Panel Socket-IP44
Outside Dimension Width (mm)
218
Outside Dimension Length (mm)
298
Outside Dimension Depth (mm)
120
Inside Dimension Width (mm)
210
Inside Dimension Length (mm)
290
Inside Dimension Depth (mm)
114
Horizontal Screwing Distance (mm)
160
Vertical Screwing Distance (mm)
240
Features
Empty Junction Code: 402035050B
Cover Connection Type
Stainless Steel Screw
Impact Protection
IK06 for Empty Junction Box
Glow Wire Test Value
HF650 °C
Number of Cable Entries
14
Burst Cable Entry Size
PG 16-21-29
Included Accessories
1xPG16+1xPG21 Graded soft Cable Gland
Operating Temperature
HF ABS + Transparent PC
Body Material
Gray - RAL 7044
Contact Material
Grey - RAL 7044
HS
Socket: 8536.90.10.00.00 Sockets: 8536.69.90.00.18
Country of Origin
Turkey, Austria
