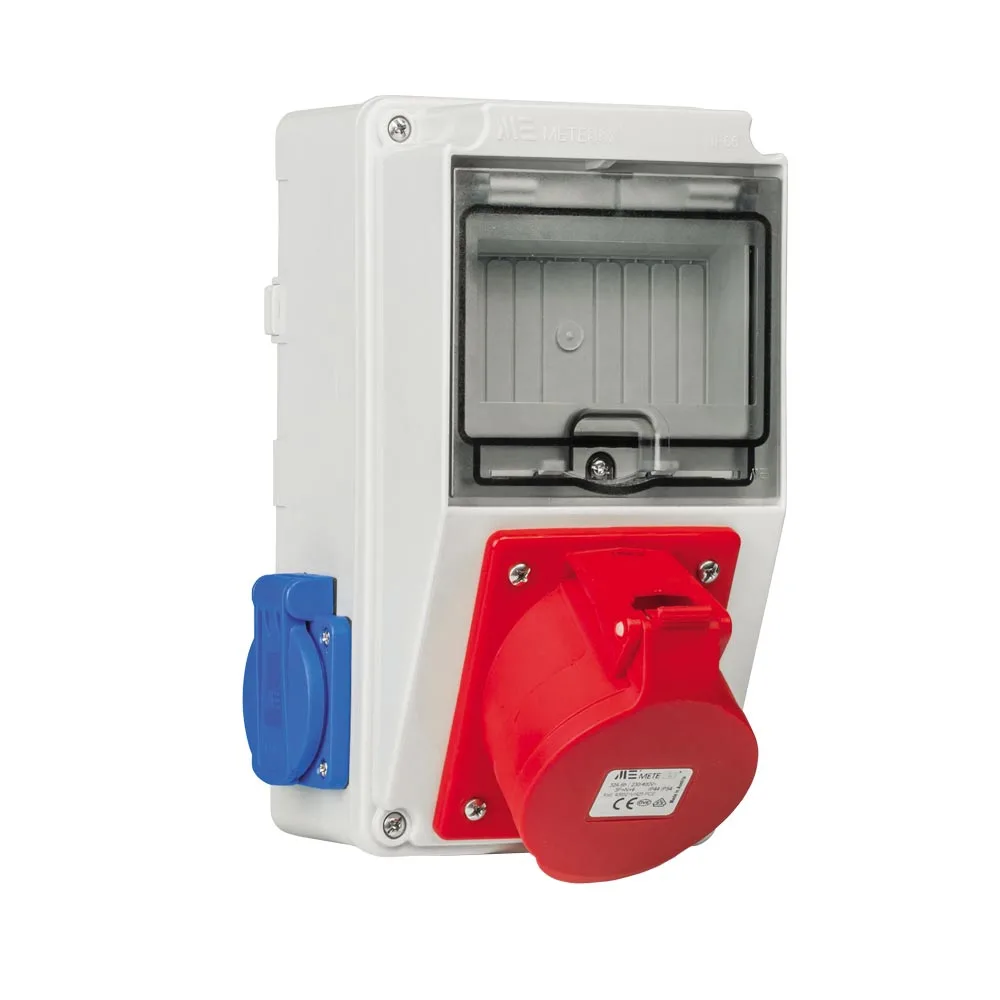

70025050B001-1
Aluminium & Thermoplastic EnclosuresCombination Assembled Boxes

70025050B001 - Assembled Combination Box

Product Code
70025050B001
Product Name
Assembled Combination Box
Front 1 - Socket
406521V 5x32A IP44 Oblique Machine Socket
Front 2 - Socket
-

Assembled Combination Box Product Name Assembled Combination Box Front 1 - Socket 406521V 5x32A IP44 Oblique Machine Socket Front 2 - Socket - Side 1 - Socket 404016ST06 1x16A panel socket IP44 Side 2 - Socket 404016ST06 1x16A panel socket IP44 External Dimensions Width (mm) 117 External Dimensions Length (mm) 217 External Dimensions Depth (mm) [...]

Product Code 70025050B001
Product Name Assembled Combination Box
Front 1 - Socket 406521V 5x32A IP44 Oblique Machine Socket
Front 2 - Socket -
Side 1 - Socket 404016ST06 1x16A panel socket IP44
Side 2 - Socket 404016ST06 1x16A panel socket IP44
Outside Dimension Width (mm) 117
Outside Dimension Length (mm) 217
Outside Dimension Depth (mm) 115,5
Inside Dimension Width (mm) 110
Inside Dimension Length (mm) 210
Inside Dimension Depth (mm) 106
Horizontal Screwing Distance (mm) 70
Vertical Screwing Distance (mm) 170
Features Empty Junction Code: 402025050B
Cover Connection Type Stainless Steel Screw
Protection Class IP44
Impact Protection IK06 for Empty Junction Box
Gasket PU
Glow Wire Test Value HF650 °C
Number of Cable Entries 14
Burst Cable Entry Size PG 16-21
Included Accessories 1xPG16+1xPG21 Graded soft Cable Gland
Number of Modules 5
Terminal Rail Available
Number of Lockouts -
Color Gray RAL 7035
Operating Temperature HF ABS + Transparent PC
Body Material Gray - RAL 7044
Contact Material Grey - RAL 7044
Standard TSE
Number of Boxes 2
HS Socket: 8536.90.10.00.00 Sockets: 8536.69.90.00.18
Country of Origin Turkey, Austria
