40761136k-1
CEE Norm Plugs and SocketsMETECEEPCESwitch-Interlock Wall Socket, Combi, Adapter

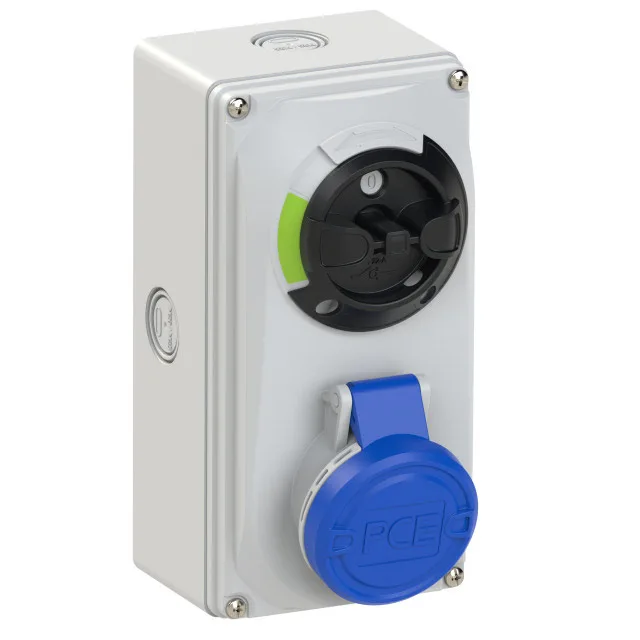

40761136k - CEE Interlocking Socket Outlet with Switch, Compact, 16A, 3P, 6h, IP44/IP54, Perforated

Product Code
40761136k
Product Description
Compact Switched Interlocking Socket
Tip
Flat
Structure
Wall Mounting

CEE Interlocking Socket Outlet with Switch, Compact, 16A, 3P, 6h, IP44/IP54, Perforated Product Description Compact Interlocking Socket Outlet with Switch Type Flat Structure Wall Mount Connection Type Screw Connection Current (A) 16 A Number of Contacts (P99) 2P+PE Voltage (V) 230 V Voltage EN 60309-2 (V) 230 V Number of Contacts 2P+PE Protection Class IP54 Position of earth contact (h) 6 h [...]

Product Code 40761136k
Product Description Compact Switched Interlocking Socket
Tip Flat
Structure Wall Mounting
Connection Type Screw Connection
Current (A) 16 A
Number of Contacts (P99) 2P+PE
Voltage (V) 230 V
Voltage EN 60309-2 (V) 230 V
Number of Contacts 2P+PE
Protection Class IP54
Position of the earth contact (h) 6 h
Frequency (Hz) 50~60Hz
Cable Entry -
Suitable Multi-Wire Cable (mm²) 1.5-2.5 mm²
Suitable Single Core Cable (mm²) 1.5-4 mm²
Cable Gripper Flexing Value (Ncm) -
Cable Removal Length (mm) -
Elasticity of Contact Screws (Ncm) 120 Ncm
Cable Stripping Length (mm) -
Vertical Flange (mm) -
Horizontal Flange (mm) -
Vertical screwing distance (mm) -
Horizontal Screwing Distance (mm) -
Additional Technical information Mechanical Interlock Switch: ON/OFF, AC22A, 10kA
Color Blue
Body Material PC/ABS
Contact Material Nickel Plated Brass
Standard -
Weight 0.591 kg
Number of Boxes 1
HS 85366990
Origin Austria
Document Not Found.
Certificate Not Found.
