406683V-1
CEE Norm Plugs and SocketsMETECEEPCESwitch-Interlock Wall Socket, Combi, Adapter

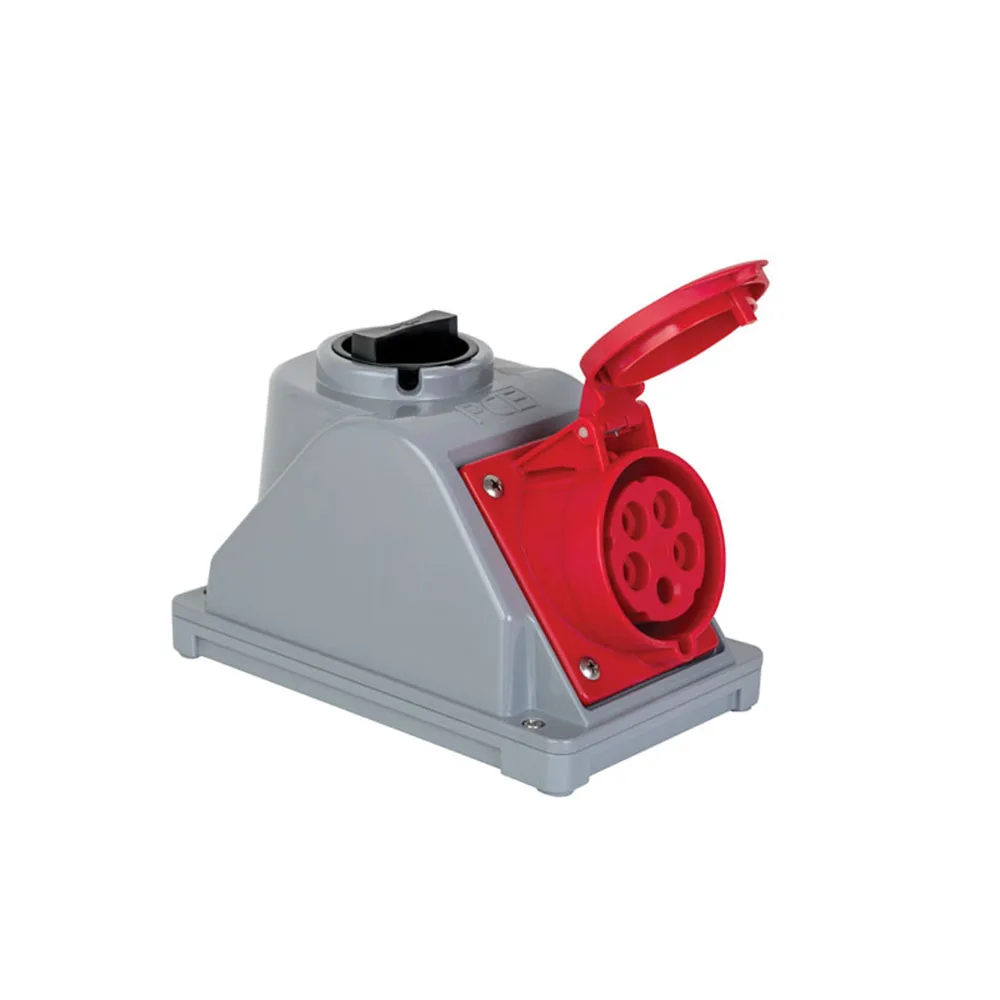

406683V - CEE Wall Socket with Switch (Oblique Body) 32A 380-415V 3P+N+PE 6 h IP44 Screw Connection

Product Code
406683V
Product Description
Wall Socket with Switch
Tip
Oblique
Structure
Wall Mounting

CEE Wall Socket Outlet with Switch (Oblique Body) 32A 380-415V 3P+N+PE 6 h IP44 Screw Connection Product Description Wall Socket Outlet with Switch Type Oblique Structure Wall Mount Connection Type Screw Connection Current (A) 32A Number of Contacts (P99) 5P Voltage (V) 380-415V Voltage EN 60309-2 (V) 400V Number of Contacts 3P+N+PE Protection Class IP44 Position of earth contact (h) 6 h [...]

Product Code 406683V
Product Description Wall Socket with Switch
Tip Oblique
Structure Wall Mounting
Connection Type Screw Connection
Current (A) 32A
Number of Contacts (P99) 5P
Voltage (V) 380-415V
Voltage EN 60309-2 (V) 400V
Number of Contacts 3P+N+PE
Protection Class IP44
Position of the earth contact (h) 6 h
Frequency (Hz) 50~60Hz
Cable Entry Bottom and Rear Entrance
Suitable Multi-Wire Cable (mm²) 2.5-6mm²
Suitable Single Core Cable (mm²) 2.5-10mm²
Cable Gripper Flexing Value (Ncm) -
Cable Removal Length (mm) 50mm
Elasticity of Contact Screws (Ncm) 110Ncm
Cable Stripping Length (mm) 12-14mm
Vertical Flange (mm) -
Horizontal Flange (mm) -
Vertical screwing distance (mm) -
Horizontal Screwing Distance (mm) -
Additional Technical information Key : With on/off key, Unlocking System
Color Red
Body Material Plastic
Contact Material Nickel Plated Brass
Standard PRAISE |TSE
Weight 0.760 kg
Number of Boxes 1
HS 8536.69.90.00.18
Origin Poland
Document Not Found.
Certificate Not Found.
