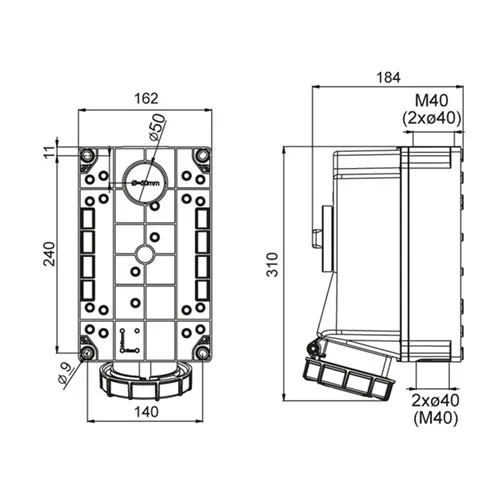

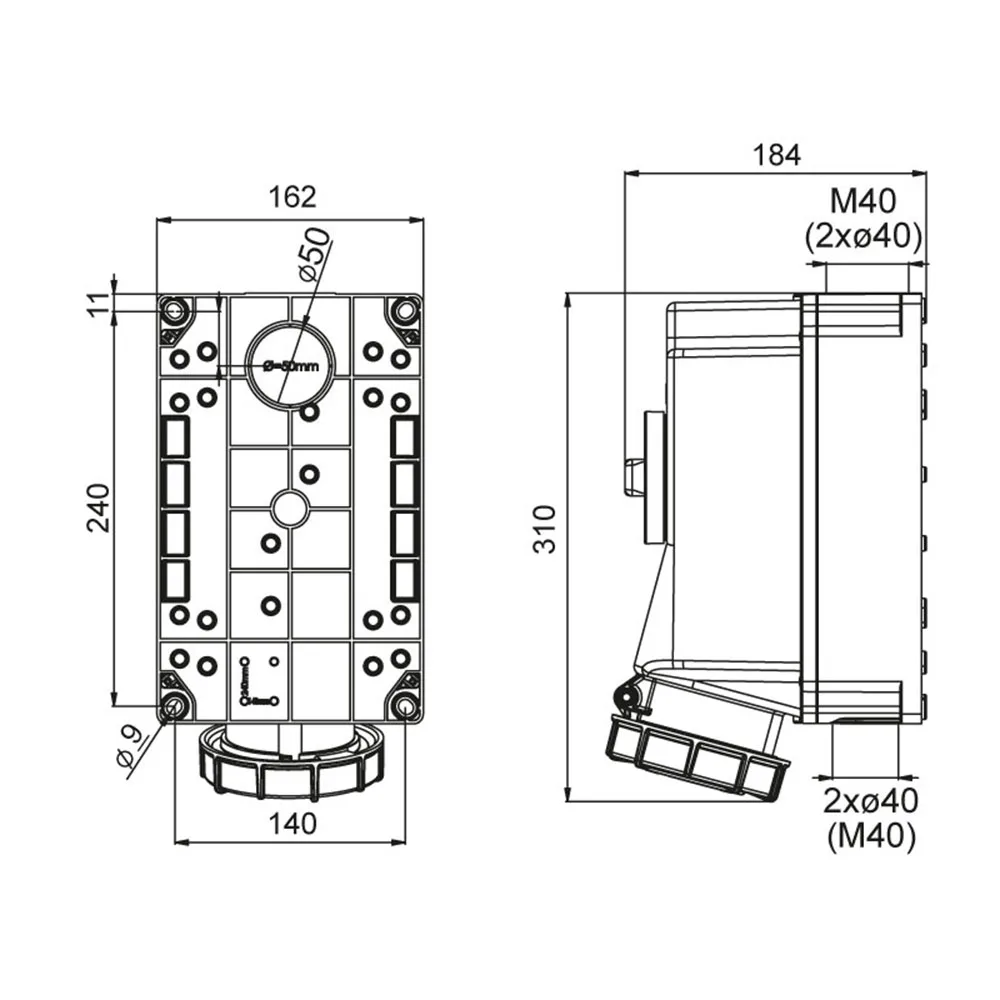

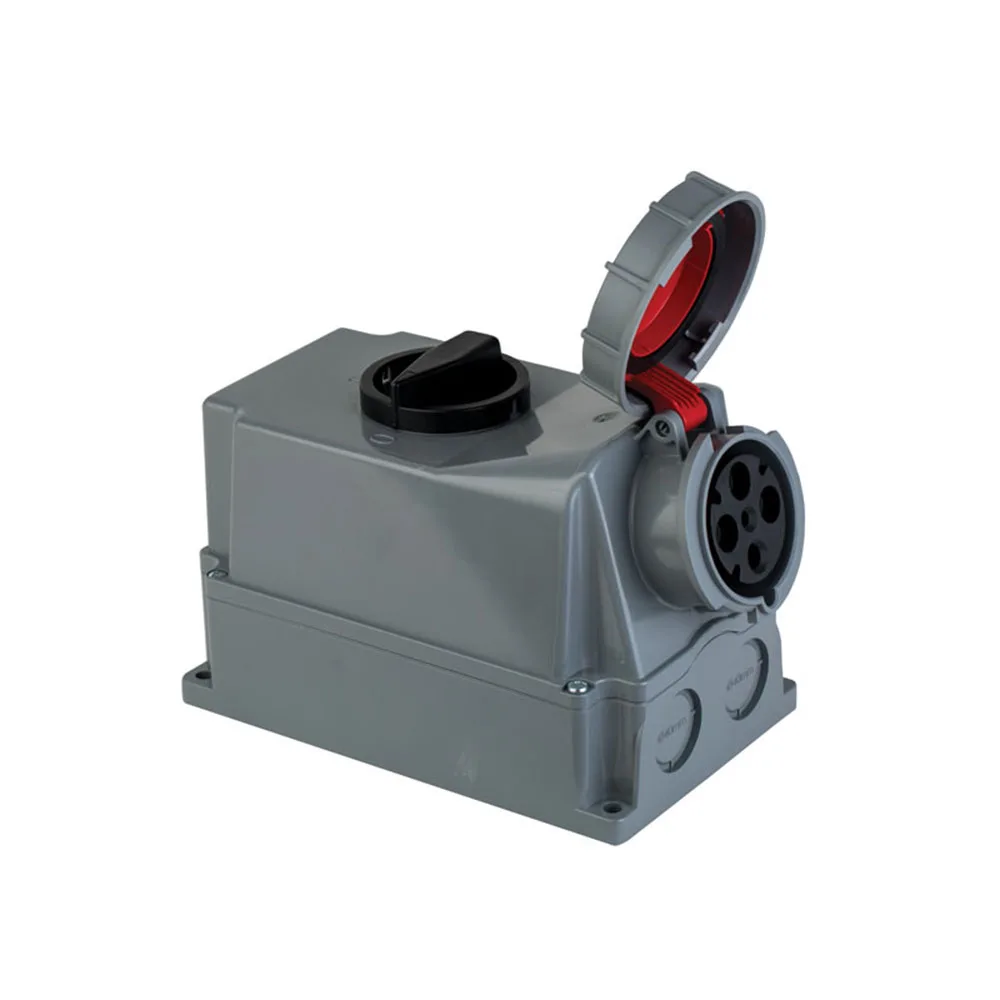

406677 - CEE Interlock Wall Socket (Oblique Body) 63A 380-415V 3P+N+PE 6 h IP67 Screw Connection

Product Code
406677
Product Description
Interlock Wall Socket
Tip
Oblique
Structure
Wall Mounting

CEE Interlock Wall Socket (Oblique Body) 63A 380-415V 3P+N+PE 6 h IP67 Screw Connection Product Description Interlock Wall Socket Type Oblique Structure Wall Mount Connection Type Screw Connection Current (A) 63A Number of Contacts (P99) 5P Voltage (V) 380-415V Voltage EN 60309-2 (V) 400V Number of Contacts 3P+N+PE Protection Class IP67 Position of earth contact (h) 6 h [...]

Product Code 406677
Product Description Interlock Wall Socket
Tip Oblique
Structure Wall Mounting
Connection Type Screw Connection
Current (A) 63A
Number of Contacts (P99) 5P
Voltage (V) 380-415V
Voltage EN 60309-2 (V) 400V
Number of Contacts 3P+N+PE
Protection Class IP67
Position of the earth contact (h) 6 h
Frequency (Hz) 50~60Hz
Cable Entry Front, Bottom, Rear Entrance
Suitable Multi-Wire Cable (mm²) 6-25mm²
Suitable Single Core Cable (mm²) 6-35mm²
Cable Gripper Flexing Value (Ncm) -
Cable Removal Length (mm) -
Elasticity of Contact Screws (Ncm) -
Cable Stripping Length (mm) -
Vertical Flange (mm) -
Horizontal Flange (mm) -
Vertical screwing distance (mm) -
Horizontal Screwing Distance (mm) -
Additional Technical information -
Color Red
Body Material Plastic
Contact Material Brass, Spring Lamella (CuBe)
Standard PRAISE |TSE
Weight 2.179 kg
Number of Boxes 1
HS 8536.69.90.00.18
Origin Austria
Document Not Found.
Certificate Not Found.
