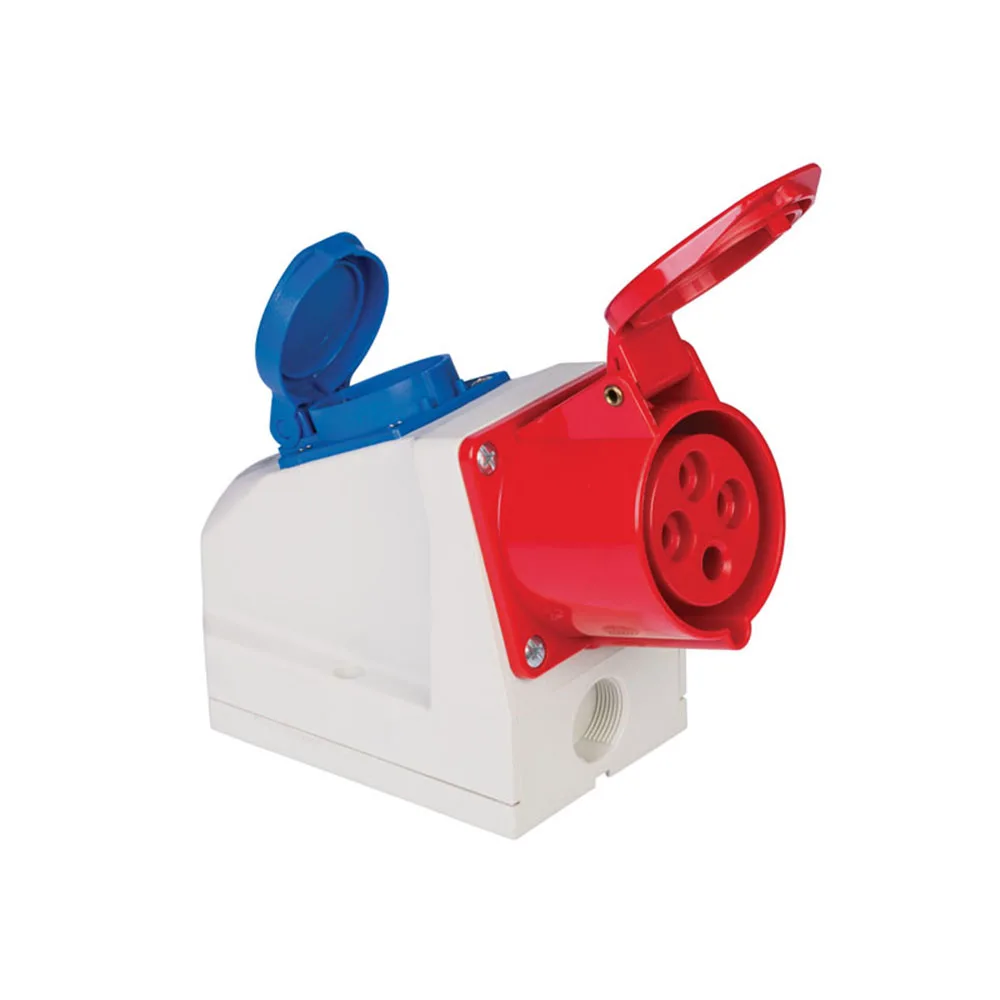

406630V - CEE Combi 32A 380-415V 3P+PE 6 h IP44 Screw Connection

TECHNICAL SPECIFICATIONS

Product Code

406630V

Product Description

Kombi

Tip

-

Structure

-

CEE Kombi 32A 380-415V 3P+PE 6 h IP44 Screw Connection Product Description Kombi Type - Structure - Connection Type Screw Connection Current (A) 32A Number of Contacts (P99) 4P Voltage (V) 380-415V Voltage EN 60309-2 (V) 400V Number of Contacts 3P+PE Protection Class IP44 Position of earth contact (h) 6 h Frequency (Hz) 50~60Hz Cable Entry Front, Bottom, [...]

TECHNICAL INFORMATION

Product Code 406630V

Product Description Kombi

Tip -

Structure -

Connection Type Screw Connection

Current (A) 32A

Number of Contacts (P99) 4P

Voltage (V) 380-415V

Voltage EN 60309-2 (V) 400V

Number of Contacts 3P+PE

Protection Class IP44

Position of the earth contact (h) 6 h

Frequency (Hz) 50~60Hz

Cable Entry Front, Bottom, Rear Entrance

Suitable Multi-Wire Cable (mm²) 2.5-6mm²

Suitable Single Core Cable (mm²) 2.5-10mm²

Cable Gripper Flexing Value (Ncm) -

Cable Removal Length (mm) 50mm

Elasticity of Contact Screws (Ncm) 110Ncm

Cable Stripping Length (mm) 12-14mm

Vertical Flange (mm) -

Horizontal Flange (mm) -

Vertical screwing distance (mm) -

Horizontal Screwing Distance (mm) -

Additional Technical information 16A. Socket Type: German; Wired

Color Gray

Body Material Plastic

Contact Material Rice

Standard PRAISE |TSE

Weight 0.470 kg

Number of Boxes 5

HS 8536.69.90.00.18

Origin Austria

Document Not Found.

Certificate Not Found.
