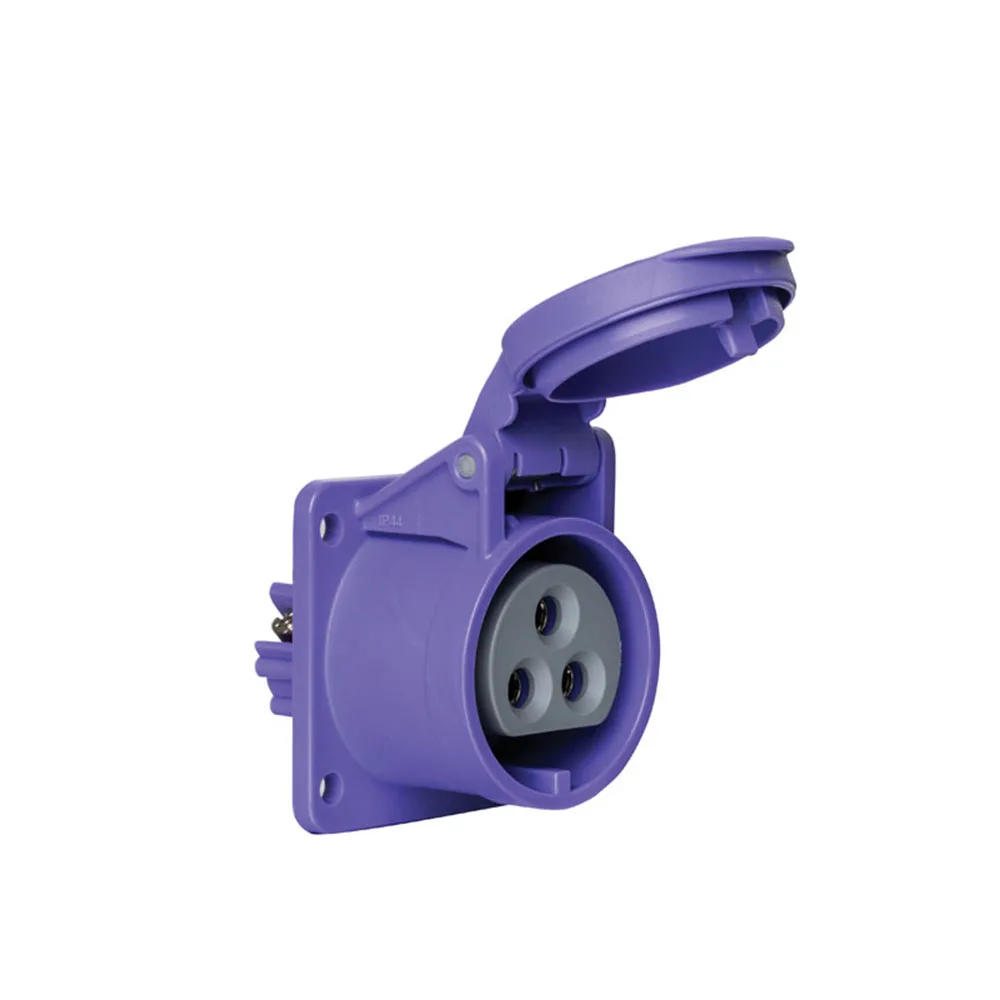

406556V - CEE Flat Machine Socket 32A 20-25V 3P - IP54 Screw Connection (54mmx60mm)

Product Code
406556V
Product Description
Machine Socket
Tip
Flat
Structure
Machine Assembly

CEE Flat Machine Socket 32A 20-25V 3P - IP54 Screw Connection (54mmx60mm) Product Description Machine Socket Type Flat Structure Machine Mount Connection Type Screw Connection Current (A) 32A Number of Contacts (P99) 3P Voltage (V) 20-25V Voltage EN 60309-2 (V) 24V Number of Contacts 3P Protection Class IP54 Position of earth contact (h) - Frequency (Hz) 50~60Hz Cable [...]

Product Code 406556V
Product Description Machine Socket
Tip Flat
Structure Machine Assembly
Connection Type Screw Connection
Current (A) 32A
Number of Contacts (P99) 3P
Voltage (V) 20-25V
Voltage EN 60309-2 (V) 24V
Number of Contacts 3P
Protection Class IP54
Position of the earth contact (h) -
Frequency (Hz) 50~60Hz
Cable Entry -
Suitable Multi-Wire Cable (mm²) -
Suitable Single Core Cable (mm²) -
Cable Gripper Flexing Value (Ncm) -
Cable Removal Length (mm) -
Elasticity of Contact Screws (Ncm) -
Cable Stripping Length (mm) -

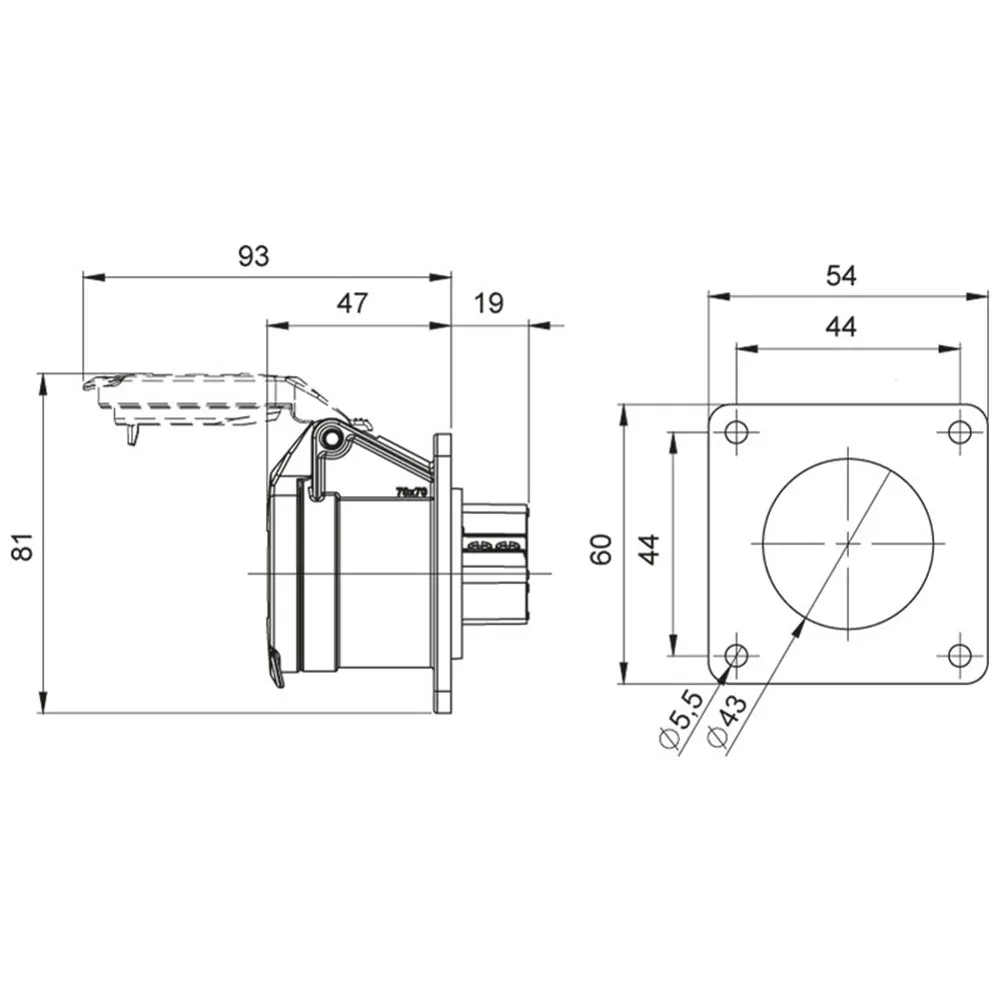

Vertical Flange (mm) 60mm
Horizontal Flange (mm) 54mm
Vertical screwing distance (mm) 44mm
Horizontal Screwing Distance (mm) 44mm
Additional Technical information -
Color Purple
Body Material Plastic
Contact Material Nickel Plated Brass
Standard PRAISE |TSE
Weight 0.132 kg
Number of Boxes 10
HS 8536.69.90.00.18
Origin Austria
Document Not Found.
Certificate Not Found.
