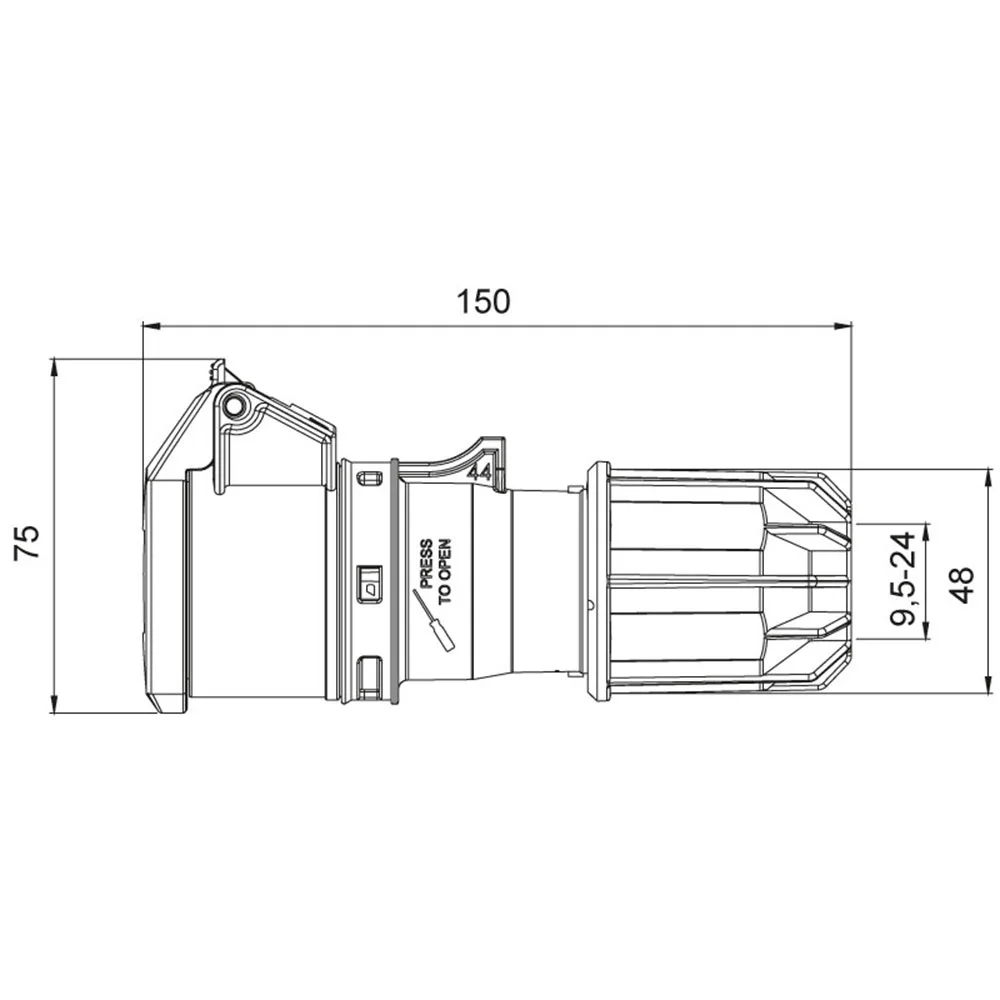

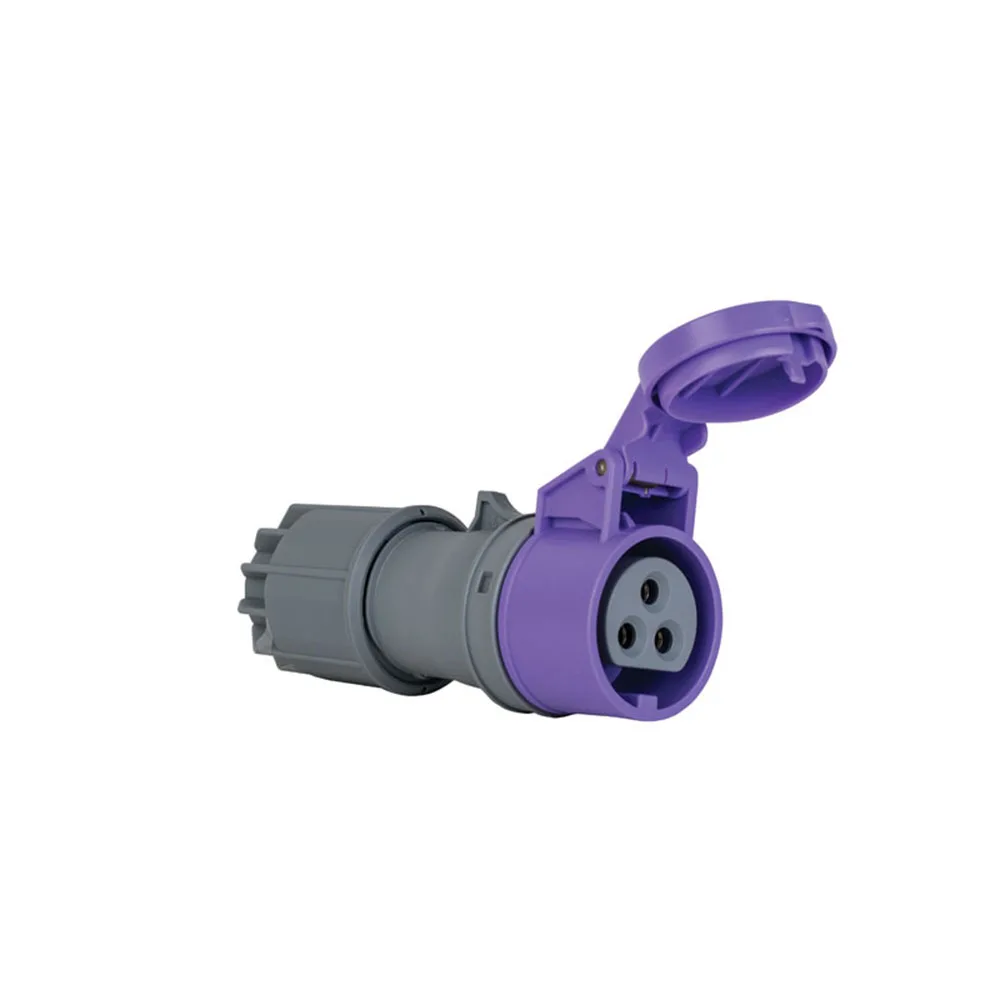

406433V - CEE Flat Extension Socket 16A 20-25V 3P - IP44 Screw Connection

Product Code
406433V
Product Description
Extension Socket
Tip
Flat
Structure
-

CEE Flat Extension Socket 16A 20-25V 3P - IP44 Screw Connection Product Description Extension Socket Type Flat Structure - Connection Type Screw Connection Current (A) 16A Number of Contacts (P99) 3P Voltage (V) 20-25V Voltage EN 60309-2 (V) 24V Number of Contacts 3P Protection Class IP44 Position of earth contact (h) - Frequency (Hz) 50~60Hz Cable Input Cable [...]

Product Code 406433V
Product Description Extension Socket
Tip Flat
Structure -
Connection Type Screw Connection
Current (A) 16A
Number of Contacts (P99) 3P
Voltage (V) 20-25V
Voltage EN 60309-2 (V) 24V
Number of Contacts 3P
Protection Class IP44
Position of the earth contact (h) -
Frequency (Hz) 50~60Hz
Cable Entry Cable Gland
Suitable Multi-Wire Cable (mm²) -
Suitable Single Core Cable (mm²) -
Cable Gripper Flexing Value (Ncm) -
Cable Removal Length (mm) -
Elasticity of Contact Screws (Ncm) -
Cable Stripping Length (mm) -
Vertical Flange (mm) -
Horizontal Flange (mm) -
Vertical screwing distance (mm) -
Horizontal Screwing Distance (mm) -
Additional Technical information -
Color Purple
Body Material Plastic
Contact Material Nickel Plated Brass
Standard PRAISE |TSE
Weight 0.196 kg
Number of Boxes 10
HS 8536.69.90.00.18
Origin Austria
Document Not Found.
Certificate Not Found.
