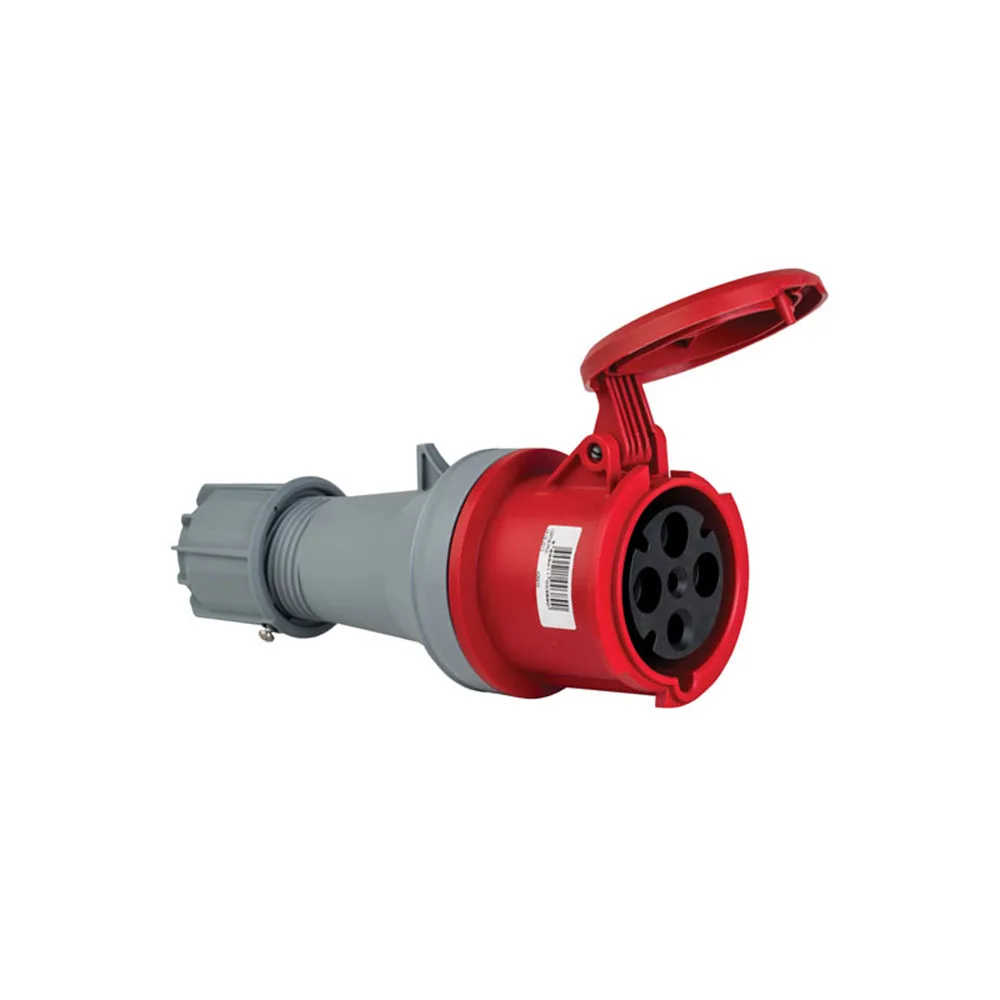

406415 - CEE Extension Socket 63A 380-415V 3P+PE 6 h IP44 Screw Connection

Product Code
406415
Product Description
Extension Socket
Tip
Flat
Structure
-

CEE Extension Socket 63A 380-415V 3P+PE 6 h IP44 Screw Connection Product Description Extension Socket Type Flat Structure - Connection Type Screw Connection Current (A) 63A Number of Contacts (P99) 4P Voltage (V) 380-415V Voltage EN 60309-2 (V) 400V Number of Contacts 3P+PE Protection Class IP44 Position of earth contact (h) 6 h Frequency (Hz) 50~60Hz Cable Entry [...]

Product Code 406415
Product Description Extension Socket
Tip Flat
Structure -
Connection Type Screw Connection
Current (A) 63A
Number of Contacts (P99) 4P
Voltage (V) 380-415V
Voltage EN 60309-2 (V) 400V
Number of Contacts 3P+PE
Protection Class IP44
Position of the earth contact (h) 6 h
Frequency (Hz) 50~60Hz
Cable Entry Cable Gland
Suitable Multi-Wire Cable (mm²) 6-16/1-2.5(pilot contact)mm²
Suitable Single Core Cable (mm²) -
Cable Gripper Flexing Value (Ncm) 1500Ncm
Cable Removal Length (mm) 100mm
Elasticity of Contact Screws (Ncm) 200/100(pilot contact)Ncm
Cable Stripping Length (mm) 15-18mm
Vertical Flange (mm) -
Horizontal Flange (mm) -
Vertical screwing distance (mm) -
Horizontal Screwing Distance (mm) -
Additional Technical information -
Color Red
Body Material -
Contact Material Brass, Spring Lamella (CuBe)
Standard PRAISE |TSE
Weight -
Number of Boxes 2
HS 8536.69.90.00.18
Origin Austria
Document Not Found.
Certificate Not Found.
