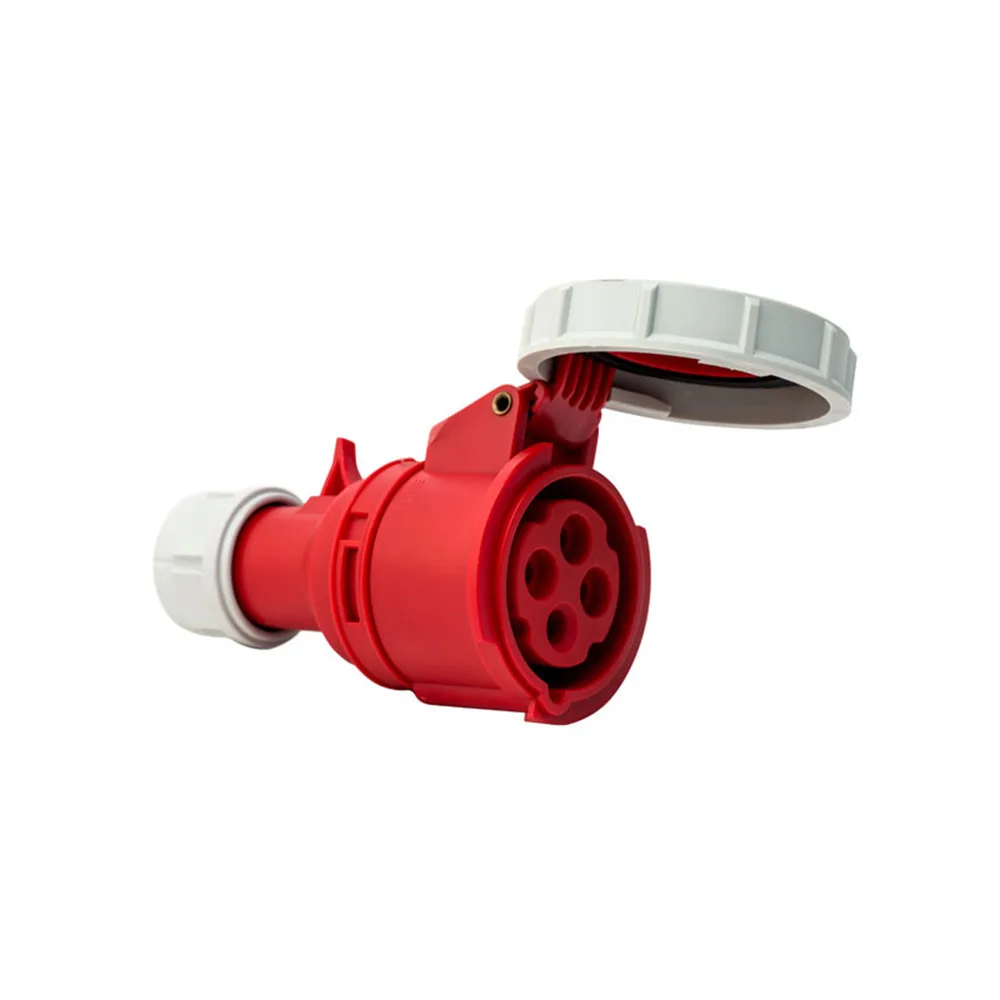

406404V - CEE Extension Socket 16A 380-415V 3P+PE 6 h IP67 Screw Connection

Product Code
406404V
Product Description
Extension Socket
Tip
Flat
Structure
-

CEE Extension Socket 16A 380-415V 3P+PE 6 h IP67 Screw Connection Product Description Extension Socket Type Flat Structure - Connection Type Screw Connection Current (A) 16A Number of Contacts (P99) 4P Voltage (V) 380-415V Voltage EN 60309-2 (V) 400V Number of Contacts 3P+PE Protection Class IP67 Position of earth contact (h) 6 h Frequency (Hz) 50~60Hz Cable Entry [...]

Product Code 406404V
Product Description Extension Socket
Tip Flat
Structure -
Connection Type Screw Connection
Current (A) 16A
Number of Contacts (P99) 4P
Voltage (V) 380-415V
Voltage EN 60309-2 (V) 400V
Number of Contacts 3P+PE
Protection Class IP67
Position of the earth contact (h) 6 h
Frequency (Hz) 50~60Hz
Cable Entry Cable Gland
Suitable Multi-Wire Cable (mm²) 1-2.5mm²
Suitable Single Core Cable (mm²) -
Cable Gripper Flexing Value (Ncm) 500Ncm
Cable Removal Length (mm) 50mm
Elasticity of Contact Screws (Ncm) 100Ncm
Cable Stripping Length (mm) 10-12mm
Vertical Flange (mm) -
Horizontal Flange (mm) -
Vertical screwing distance (mm) -
Horizontal Screwing Distance (mm) -
Additional Technical information -
Color Red
Body Material Plastic
Contact Material Rice
Standard PRAISE |TSE
Weight 0.186 kg
Number of Boxes 10
HS 8536.69.90.00.18
Origin Austria
Document Not Found.
Certificate Not Found.
