404016SB04-1
220-240V 16APANO AND MACHINE SURPRISESRubber Plugs and Sockets

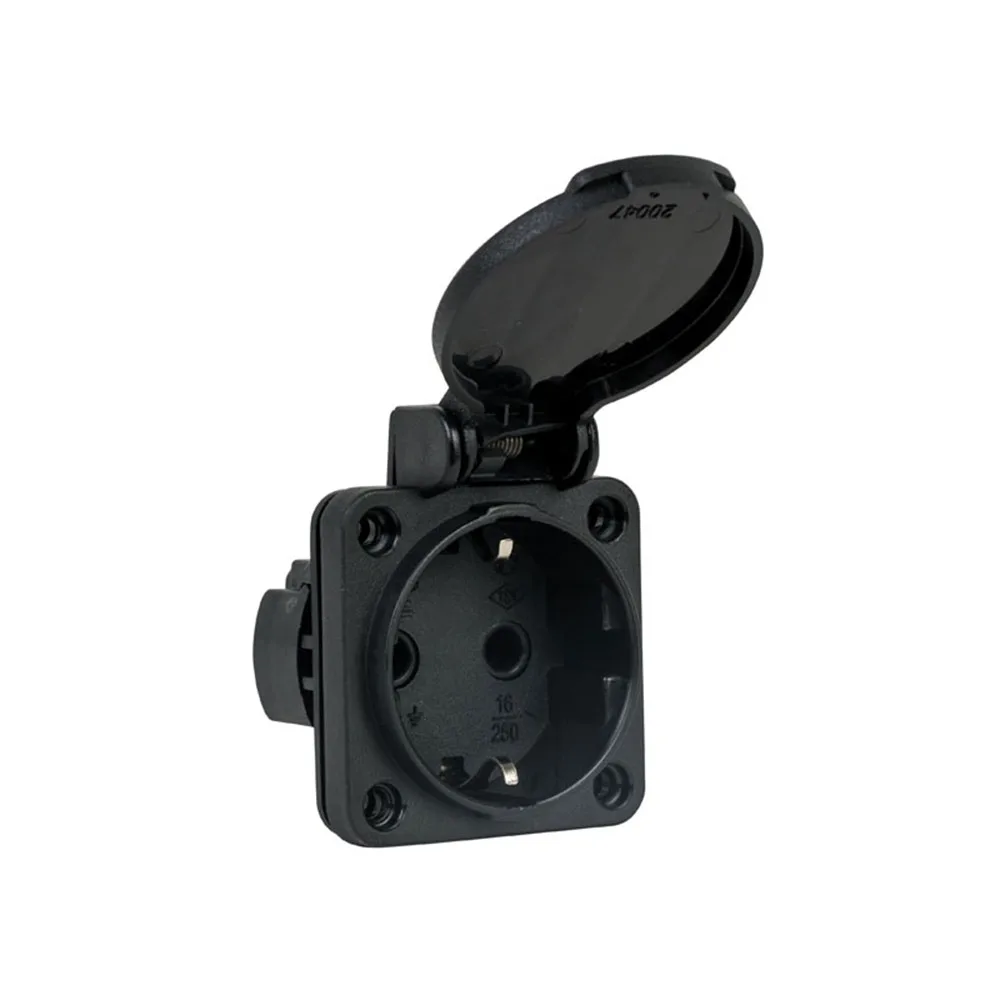

404016SB04 - Panel Socket 2P+E 220/240V 16A Bottom Side Input German Type

Product Code
404016SB04
Product Description
Panel Socket
Product Type
German Type
Connection Type
Screw Connection

Panel Socket 2P+E 220/240V 16A Bottom Side Entry German Type Product Description Panel Socket Product Type German Type Connection Type Screw Connection Number of Contacts 2P+E Voltage 220/240V Current 16A Frequency 50-60 Hz. Instantaneous Voltage 2kV Cable Cross Section 0.75-2.5 mm² Counting Length 7mm Protection Class 44 Flange Size 50×50 mm Cable Entry Bottom Side Entry [...]

Product Code 404016SB04
Product Description Panel Socket
Product Type German Type
Connection Type Screw Connection
Number of Contacts 2P+E
Voltage 220/240V
Current 16A
Ferekans 50-60 Hz.
Sudden Derbe Tension 2kV
Cable Cross Section 0.75-2.5 mm²
Counting Length 7mm
Protection Class 44

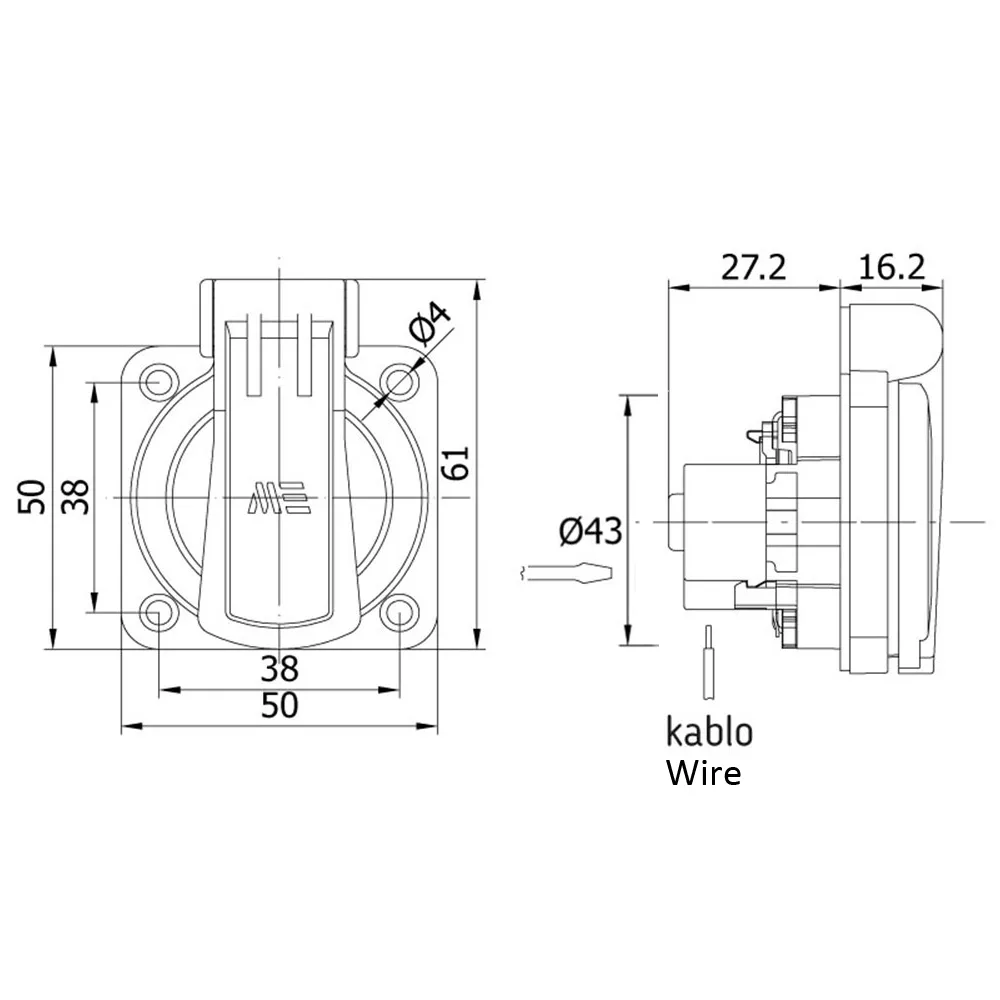

Flange Size 50x50 mm
Cable Entry Lower Side Entry
Insulation Resistance ≥510Ω
Contact Resistance ≤1mΩ
Mechanical Working Life ≥10.000
Child Protection Not Available
Cover Available
Color Black
Contact Material Rice
Body Material TPE / PA6 V0
Standard KEMA / TSE IEC 60884-1+A1+A2 / CE
Number of Boxes 40
HS CODE 8536.69.90.00.18
Country of Origin Turkey
Document Not Found.
Certificate Not Found.
T3PS2D3NE01P
High Current Application Plugs and Sockets
T3PS2D3NE01P - Machine Socket (Flat) (Pilot Contact)
Product Code
T3PS2D3NE01P
IP
66
Kontakt
5
Voltage
380/415
T3PS2P3NE01
High Current Application Plugs and Sockets
T3PS2P3NE01 - Straight Plug
Product Code
T3PS2P3NE01
IP
66
Kontakt
5
Voltage
380/415
T3PS2C30E01P
High Current Application Plugs and Sockets
T3PS2C30E01P - Extension Socket (Pilot Contact)
Product Code
T3PS2C30E01P
IP
66
Kontakt
4
Voltage
380/415
T3PS2P3NE01P
High Current Application Plugs and Sockets
T3PS2P3NE01P - Straight Plug (Pilot Contact)
Product Code
T3PS2P3NE01P
IP
66
Kontakt
5
Voltage
380/415
T3PS2P30E01
High Current Application Plugs and Sockets
T3PS2P30E01 - Straight Plug
Product Code
T3PS2P30E01
IP
66
Kontakt
4
Voltage
380/415
T3PS2D30E01
High Current Application Plugs and Sockets
T3PS2D30E01 - Machine Socket (Straight)
Product Code
T3PS2D30E01
IP
66
Kontakt
4
Voltage
380/415
T3PS2A3NE01P
High Current Application Plugs and Sockets
T3PS2A3NE01P - Machine Plug (Pilot Contact)
Product Code
T3PS2A3NE01P
IP
66
Kontakt
5
Voltage
380/415
T3PS2A30E01P
High Current Application Plugs and Sockets
T3PS2A30E01P - Machine Plug (Pilot Contact)
Product Code
T3PS2A30E01P
IP
66
Kontakt
4
Voltage
380/415
T3PS2W
High Current Application Plugs and Sockets
T3PS2W - Wall Body (Oblique)
Product Code
T3PS2W
IP
66
Kontakt
4
Voltage
380/415
T3PS2C3NE01P
High Current Application Plugs and Sockets
T3PS2C3NE01P - Extension Socket (Pilot Contact)
Product Code
T3PS2C3NE01P
IP
66
Kontakt
5
Voltage
380/415
