220-240V 16AKA RUBBER PLUGS AND SOCKETSRubber Plugs and Sockets

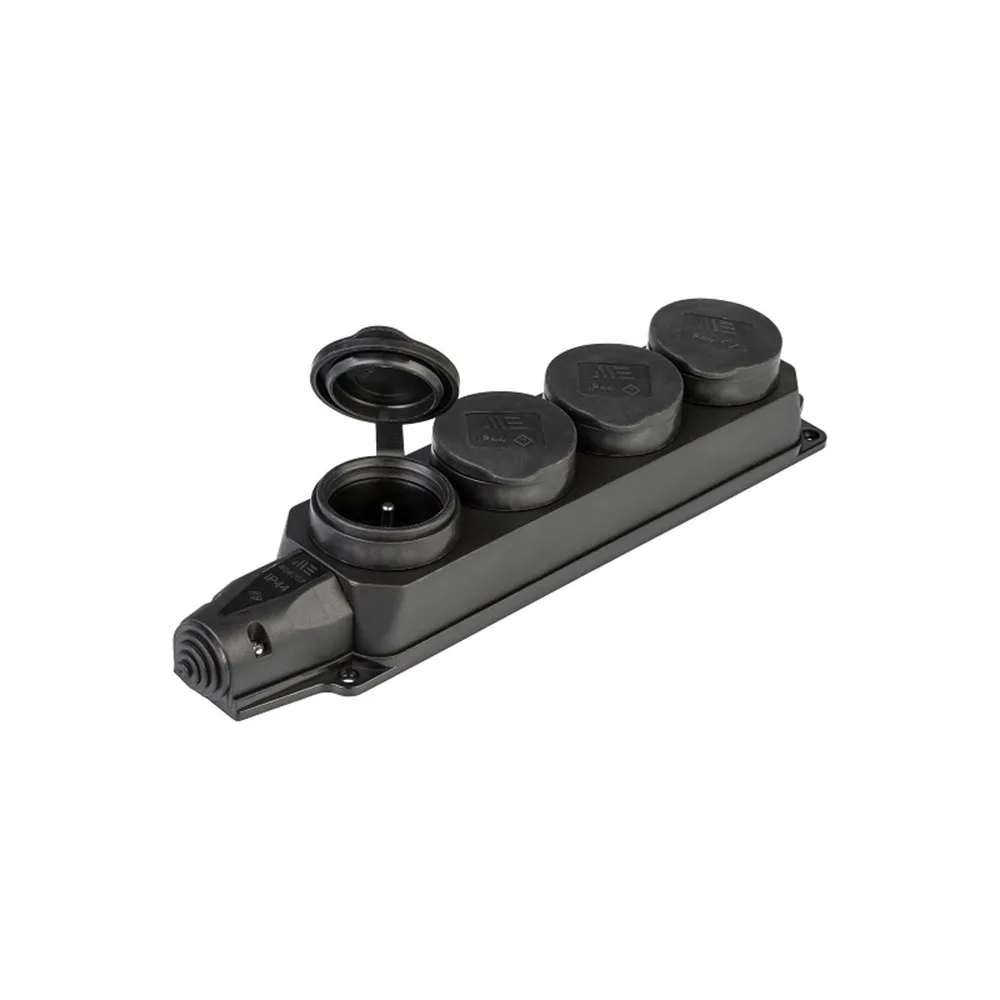

404008 - Rubber 4 Group Socket 4x(2P+E) 220/240V 16A French Type (UPS)

Product Code
404008
Product Description
Rubber 4 Group Socket
Structure
3 Pole Terminal
Product Type
French Type (UPS)

Rubber 4 Group Socket 4x(2P+E) 220/240V 16A French Type (UPS) Product Description Rubber 4 Group Socket Structure 3 Pole Terminal Product Type French Type (UPS) Connection Type Screw Connection Number of Contacts 2P+E Voltage 220/240V Current 16A Frequency 50-60 Hz. Instantaneous Voltage 2Kv Cable Cross Section 0,75-2,5 mm² Counting Length 7mm Protection Class 44 [...]

Product Code 404008
Product Description Rubber 4 Group Socket
Structure 3 Pole Terminal
Product Type French Type (UPS)
Connection Type Screw Connection
Number of Contacts 2P+E
Voltage 220/240V
Current 16A
Ferekans 50-60 Hz.
Sudden Derbe Tension 2Kv
Cable Cross Section 0.75-2.5 mm²
Counting Length 7mm
Protection Class 44
Flange Size -
Cable Entry Rear Entrance
Insulation Resistance ≥510Ω
Contact Resistance ≤1mΩ
Mechanical Working Life ≥10.000
Child Protection Not Available
Cover Available
Hanging Apparatus Available
Color Black
Contact Material Rice
Body Material TPE / PA6 V0
Standard TSE IEC 60884-1+A1+A2 / CE
Number of Boxes 6
HS CODE 8536.69.90.00.18
Country of Origin Turkey
