220-240V 16AKA RUBBER PLUGS AND SOCKETSRubber Plugs and Sockets

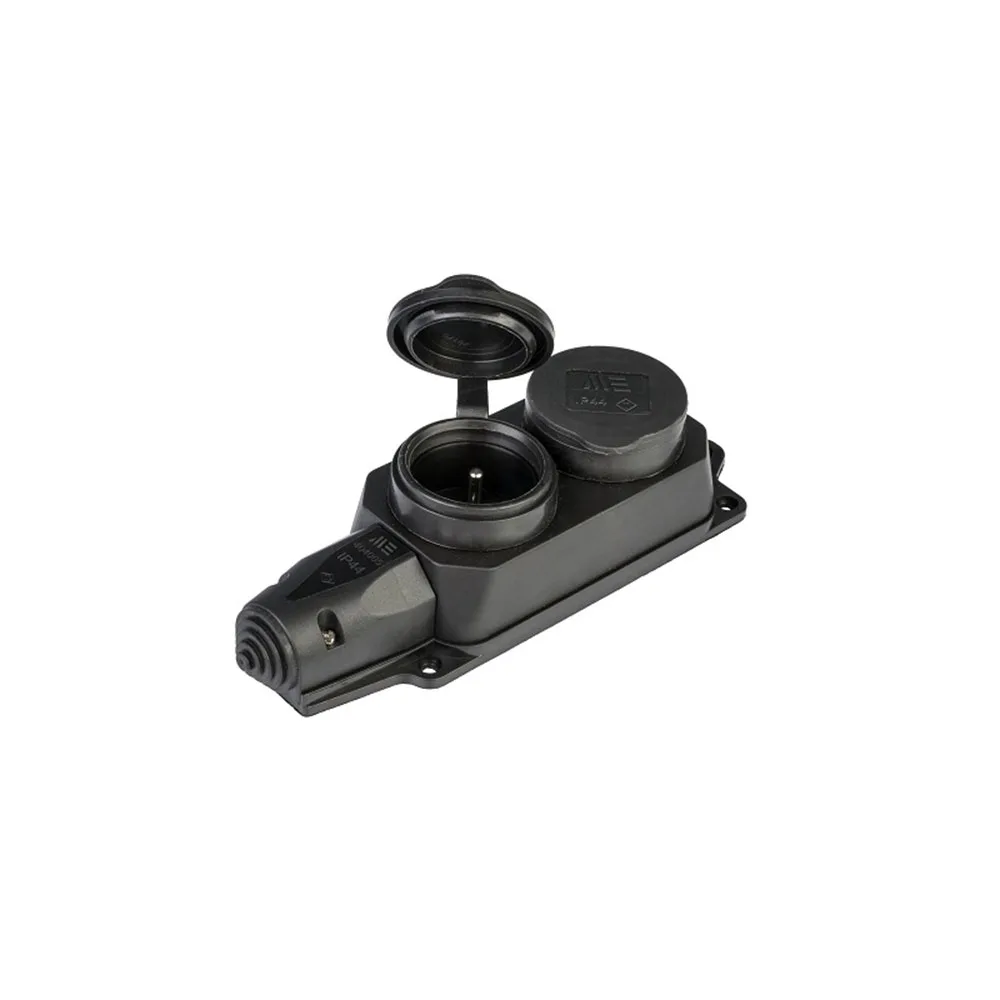

404006 - Rubber 2 Group Socket 2x(2P+E) 220/240V 16A French Type (UPS)

Product Code
404006
Product Description
Rubber 2 Group Socket Outlet
Structure
3 Pole Terminal
Product Type
French Type (UPS)

Rubber 2 Group Socket 2x(2P+E) 220/240V 16A French Type (UPS) Product Description Rubber 2 Group Socket Structure 3 Pole Terminal Product Type French Type (UPS) Connection Type Screw Connection Number of Contacts 2P+E Voltage 220/240V Current 16A Frequency 50-60 Hz. Instantaneous Voltage 2Kv Cable Cross Section 0,75-2,5 mm² Counting Length 7mm Protection Class 44 [...]

Product Code 404006
Product Description Rubber 2 Group Socket Outlet
Structure 3 Pole Terminal
Product Type French Type (UPS)
Connection Type Screw Connection
Number of Contacts 2P+E
Voltage 220/240V
Current 16A
Ferekans 50-60 Hz.
Sudden Derbe Tension 2Kv
Cable Cross Section 0.75-2.5 mm²
Counting Length 7mm
Protection Class 44
Flange Size -
Cable Entry Rear Entrance
Insulation Resistance ≥510Ω
Contact Resistance ≤1mΩ
Mechanical Working Life ≥10.000
Child Protection Not Available
Cover Available
Hanging Apparatus Available
Color Black
Contact Material Rice
Body Material TPE / PA6 V0
Standard TSE IEC 60884-1+A1+A2 / CE
Number of Boxes 10
HS CODE 8536.69.90.00.18
Country of Origin Turkey
Document Not Found.
Certificate Not Found.
T3PS2D3NE01P
High Current Application Plugs and Sockets
T3PS2D3NE01P - Machine Socket (Flat) (Pilot Contact)
Product Code
T3PS2D3NE01P
IP
66
Kontakt
5
Voltage
380/415
T3PS2P3NE01
High Current Application Plugs and Sockets
T3PS2P3NE01 - Straight Plug
Product Code
T3PS2P3NE01
IP
66
Kontakt
5
Voltage
380/415
T3PS2C30E01P
High Current Application Plugs and Sockets
T3PS2C30E01P - Extension Socket (Pilot Contact)
Product Code
T3PS2C30E01P
IP
66
Kontakt
4
Voltage
380/415
T3PS2P3NE01P
High Current Application Plugs and Sockets
T3PS2P3NE01P - Straight Plug (Pilot Contact)
Product Code
T3PS2P3NE01P
IP
66
Kontakt
5
Voltage
380/415
T3PS2P30E01
High Current Application Plugs and Sockets
T3PS2P30E01 - Straight Plug
Product Code
T3PS2P30E01
IP
66
Kontakt
4
Voltage
380/415
T3PS2D30E01
High Current Application Plugs and Sockets
T3PS2D30E01 - Machine Socket (Straight)
Product Code
T3PS2D30E01
IP
66
Kontakt
4
Voltage
380/415
T3PS2A3NE01P
High Current Application Plugs and Sockets
T3PS2A3NE01P - Machine Plug (Pilot Contact)
Product Code
T3PS2A3NE01P
IP
66
Kontakt
5
Voltage
380/415
T3PS2A30E01P
High Current Application Plugs and Sockets
T3PS2A30E01P - Machine Plug (Pilot Contact)
Product Code
T3PS2A30E01P
IP
66
Kontakt
4
Voltage
380/415
T3PS2W
High Current Application Plugs and Sockets
T3PS2W - Wall Body (Oblique)
Product Code
T3PS2W
IP
66
Kontakt
4
Voltage
380/415
T3PS2C3NE01P
High Current Application Plugs and Sockets
T3PS2C3NE01P - Extension Socket (Pilot Contact)
Product Code
T3PS2C3NE01P
IP
66
Kontakt
5
Voltage
380/415
