220–240 V, 16 A RUBBER PLUGS AND OUTLETSRubber Plugs & Sockets

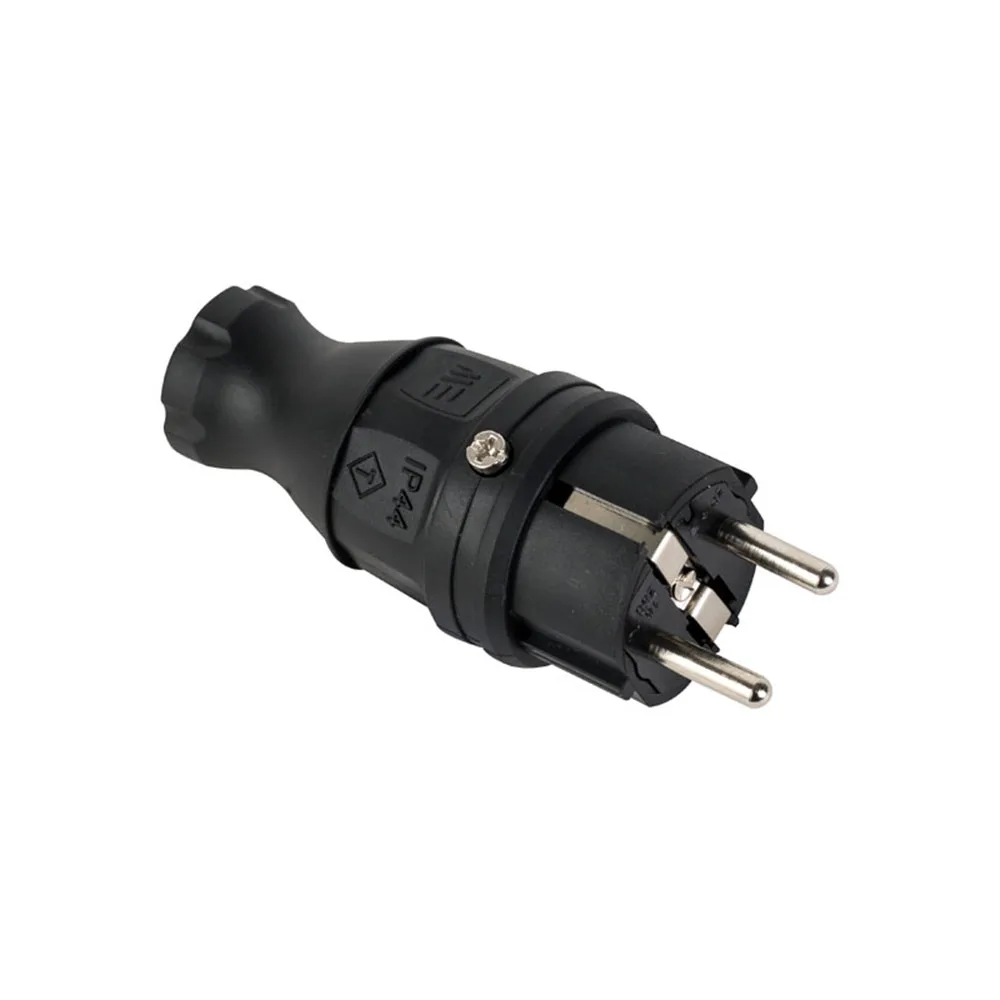

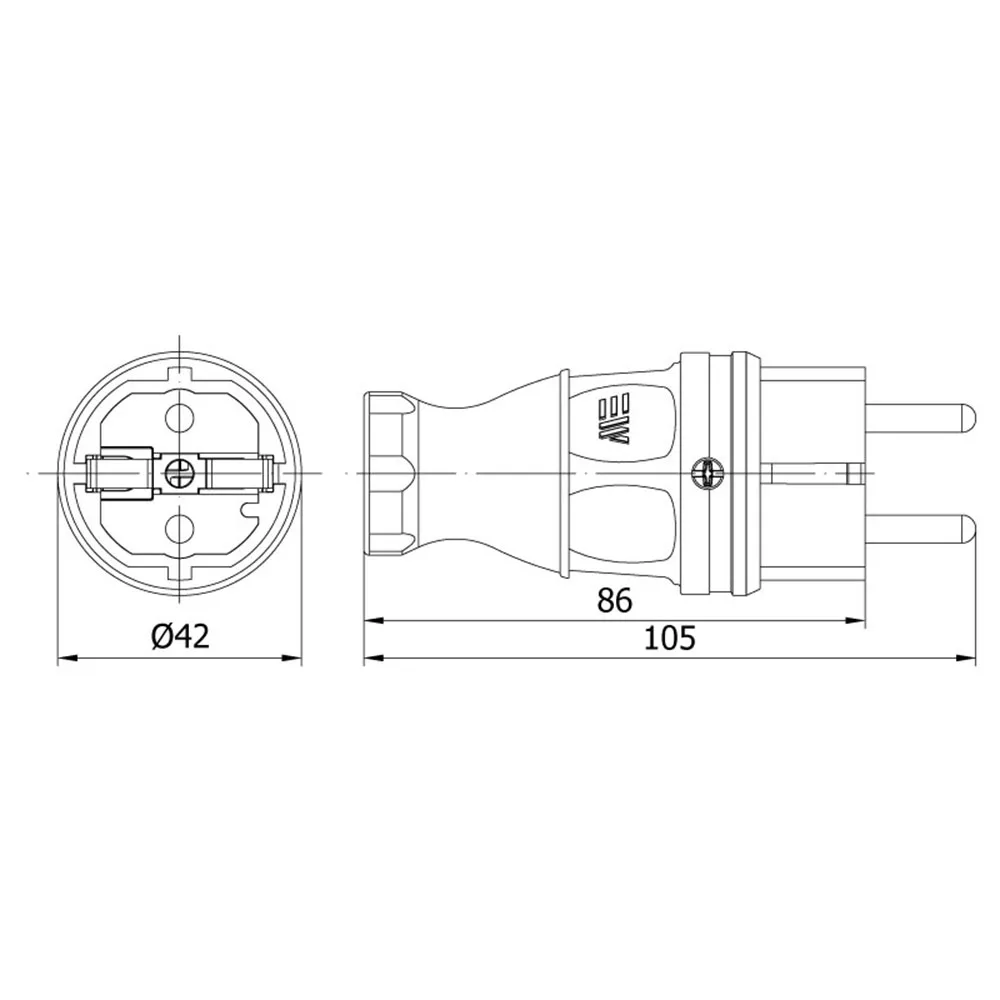

404001 - Flat Rubber Plug 2P+E 220/240V 16A German Type

Product Code
404001
Product Description
Rubber Plug
Structure
Flat
Product Type
German Type

Flat Rubber Plug 2P+E 220/240V 16A German Type Product Description Rubber Plug Construction Flat Product Type German Type Connection Type Screw Connection Number of Contacts 2P+E Voltage 220/240V Current 16A Frequency 50-60 Hz. Instantaneous Voltage 2Kv Cable Cross Section 0.75-2.5 mm² Counting Length 7mm Protection Class 44 Flange Size - Cable Entry Rear Entry Insulation Resistance [...]

Product Code 404001
Product Description Rubber Plug
Structure Flat
Product Type German Type
Connection Type Screw Connection
Number of Contacts 2P+E
Voltage 220/240V
Current 16A
Ferekans 50-60 Hz.
Sudden Derbe Tension 2Kv
Cable Cross Section 0.75-2.5 mm²
Counting Length 7mm
Protection Class 44
Flange Size -
Cable Entry Rear Entrance
Insulation Resistance ≥510Ω
Contact Resistance ≤1mΩ
Mechanical Working Life ≥10.000
Child Protection Not Available
Cover Not Available
Hanging Apparatus Not Available
Color Black
Contact Material Brass (Nickel Plated)
Body Material TPE / PA6 V0
Standard KEMA ,TSE IEC 60884-1+A1+A2 / CE
Number of Boxes 30
HS CODE 8536.69.90.00.18
Country of Origin Turkey
Document Not Found.
Certificate Not Found.
403431S-1
4x80A4X80 + 2x16K Series
403431S - Extension Outlet with Metal Clamp and Gasket - IP65
Product Code
403431S
Product Type
EXTENSION OUTLET WITH METAL CLIP AND GASKET - IP65
Gender
Socket
Number of Contacts
4x80A + 2x16A (4P+2P+E)
403422-1
4x80A4X80 + 2x16K Series
403422 - Extension Outlet - IP65
Product Code
403422
Product Type
EXTENSION OUTLET - IP65
Gender
Socket
Number of Contacts
4x80A + 2x16A (4P+2P+E)
403430-1
4x80A4X80 + 2x16K Series
403430 - Extension Cord - IP65
Product Code
403430
Product Type
EXTENSION CORD - IP65
Gender
Plug
Number of Contacts
4x80A + 2x16A (4P+2P+E)
403429-1
4x80A4X80 + 2x16K Series
403429 - Extension Outlet - IP65
Product Code
403429
Product Type
EXTENSION OUTLET - IP65
Gender
Socket
Number of Contacts
4x80A + 2x16A (4P+2P+E)
403753S-1
4x80A4X80 + 2x16K Series
403753S - Wall Outlet with Single Metal Latch-Hinged Cover - IP65
Product Code
403753S
Product Type
WALL OUTLET WITH SINGLE-METAL CLIP HINGE COVER - IP65
Gender
Plug
Number of Contacts
4x80A (4P+E)
403755S-1
4x80A4X80 + 2x16K Series
403755S - Wall Outlet with Single Metal Latch-Hinged Cover - IP65
Product Code
403755S
Product Type
WALL OUTLET WITH SINGLE-METAL CLIP HINGE COVER - IP65
Gender
Plug
Number of Contacts
4x80A (4P+E)
403423-1
4x80A4X80 + 2x16K Series
403423 - Extension Cord - IP65
Product Code
403423
Product Type
EXTENSION CORD - IP65
Gender
Plug
Number of Contacts
4x80A + 2x16A (4P+2P+E)
403754S-1
4x80A4X80 + 2x16K Series
403754S - Wall Outlet with Single Metal Latch-Hinged Cover - IP65
Product Code
403754S
Product Type
WALL OUTLET WITH SINGLE-METAL LATCH-HINGED COVER - IP65
Gender
Socket
Number of Contacts
4x80A (4P+E)
403752S-1
4x80A4X80 + 2x16K Series
403752S - Wall Outlet with Single Metal Latch-Hinged Cover - IP65
Product Code
403752S
Product Type
WALL OUTLET WITH SINGLE-METAL LATCH-HINGED COVER - IP65
Gender
Socket
Number of Contacts
4x80A (4P+E)
403750S-1
4x80A4X80 + 2x16K Series
403750S - MACHINE OUTLET WITH SINGLE-METAL LATCH-HINGED COVER - IP65
Product Code
403750S
Product Type
MACHINE OUTLET WITH SINGLE-METAL LATCH-HINGED COVER - IP65
Gender
Socket
Number of Contacts
4x80A (4P+E)
