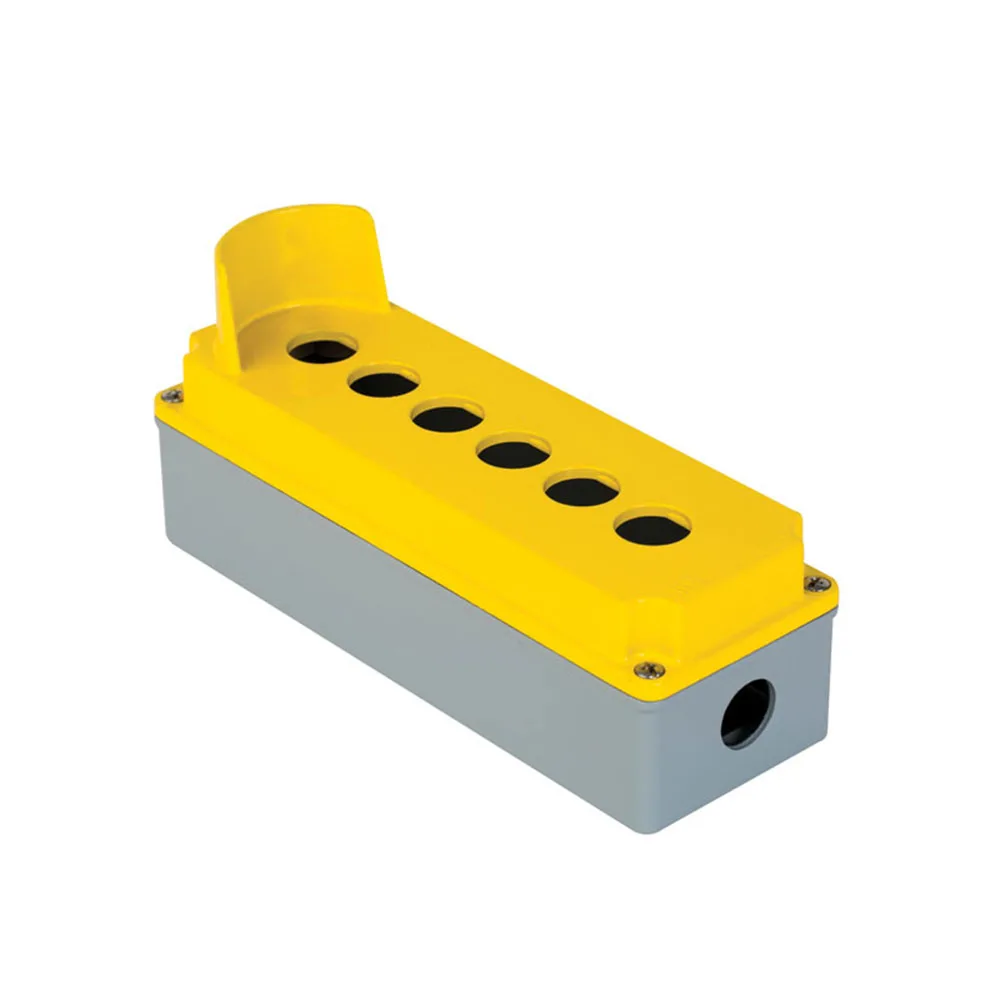

402636 - Aluminum Button Box 80x230x73mm IP67 IK09 6 Holes [6×22,5mmØ]

Product Code
402636
Product Name
Aluminum Button Box
Outside Dimension Width (mm)
230
Outside Dimension Length (mm)
80

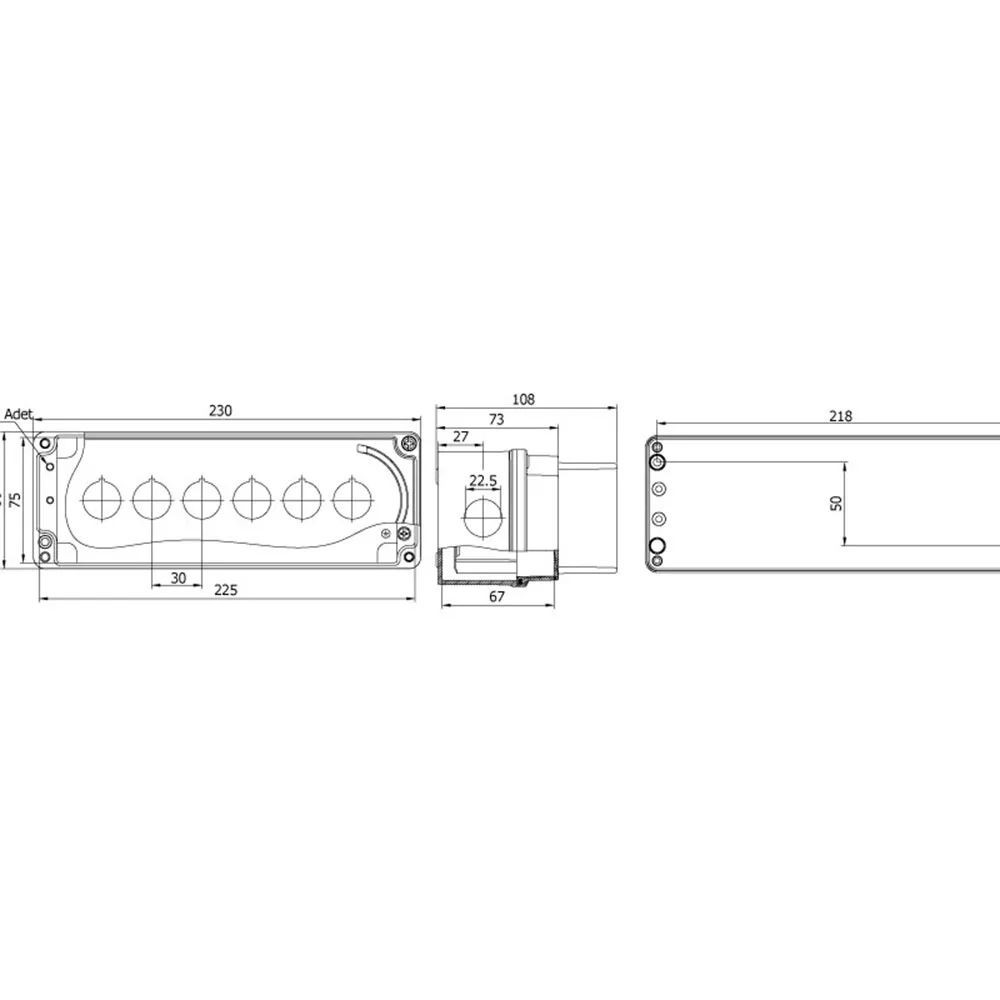

Aluminum Button Box 80x230x73mm IP67 IK09 6 Holes [6×22.5mmØ] Product Name Aluminum Button Box External Dimensions Width (mm) 230 External Dimensions Length (mm) 80 External Dimensions Depth (mm) 73 Internal Dimensions Width (mm) 225 Internal Dimensions Length (mm) 75 Internal Dimensions Depth (mm) 67 Horizontal Screwing Distance (mm) 218 Vertical Screwing Distance (mm) 50 Specifications [...]

Product Code 402636
Product Name Aluminum Button Box
Outside Dimension Width (mm) 230
Outside Dimension Length (mm) 80
Outside Dimension Depth (mm) 73
Inside Dimension Width (mm) 225
Inside Dimension Length (mm) 75
Inside Dimension Depth (mm) 67
Horizontal Screwing Distance (mm) 218
Vertical Screwing Distance (mm) 50
Features 6 Holes [6x22.5mmØ]
Cover Connection Type Stainless Steel Screw
Protection Class IP67
Impact Protection IK09
Gasket PU
Glow Wire Test Value -
Number of Cable Entries 1
Burst Cable Entry Size PG16
Included Accessories Inox Screw
Number of Modules -
Terminal Rail -
Number of Lockouts -
Color Body: Gray RAL 7040 Cover: Yellow
Operating Temperature Aluminum
Body Material Aluminum
Contact Material Grey - RAL 7044
Standard TSE
Number of Boxes 25
HS 8536.90.10.00.00
Country of Origin Turkey
Document Not Found.
Certificate Not Found.
