Aluminium Button BoxesAluminium & Thermoplastic Enclosures

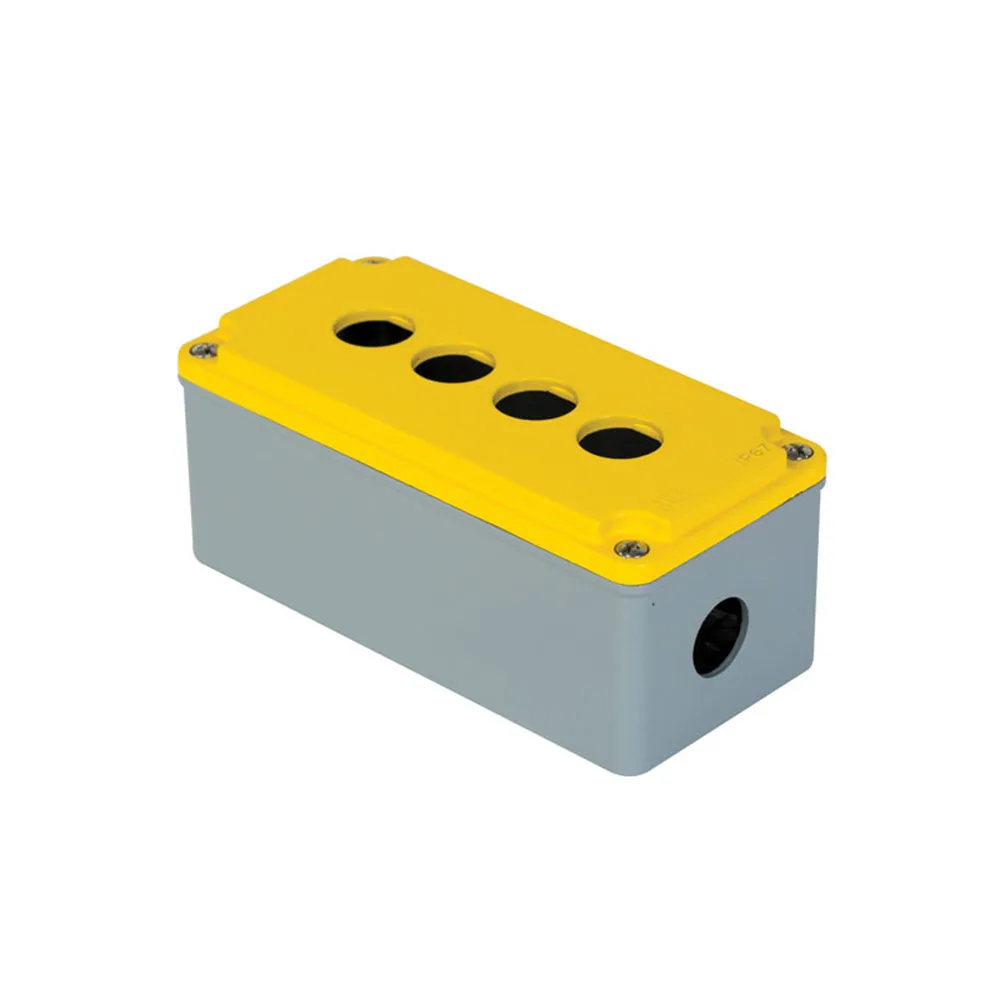

402621 - Aluminium Button Box 80x170x73mm IP67 IK09 4 Holes [4×22,5mmØ]

Product Code
402621
Product Name
Aluminium Button Box
Outside Dimension Width (mm)
170
Outside Dimension Length (mm)
80

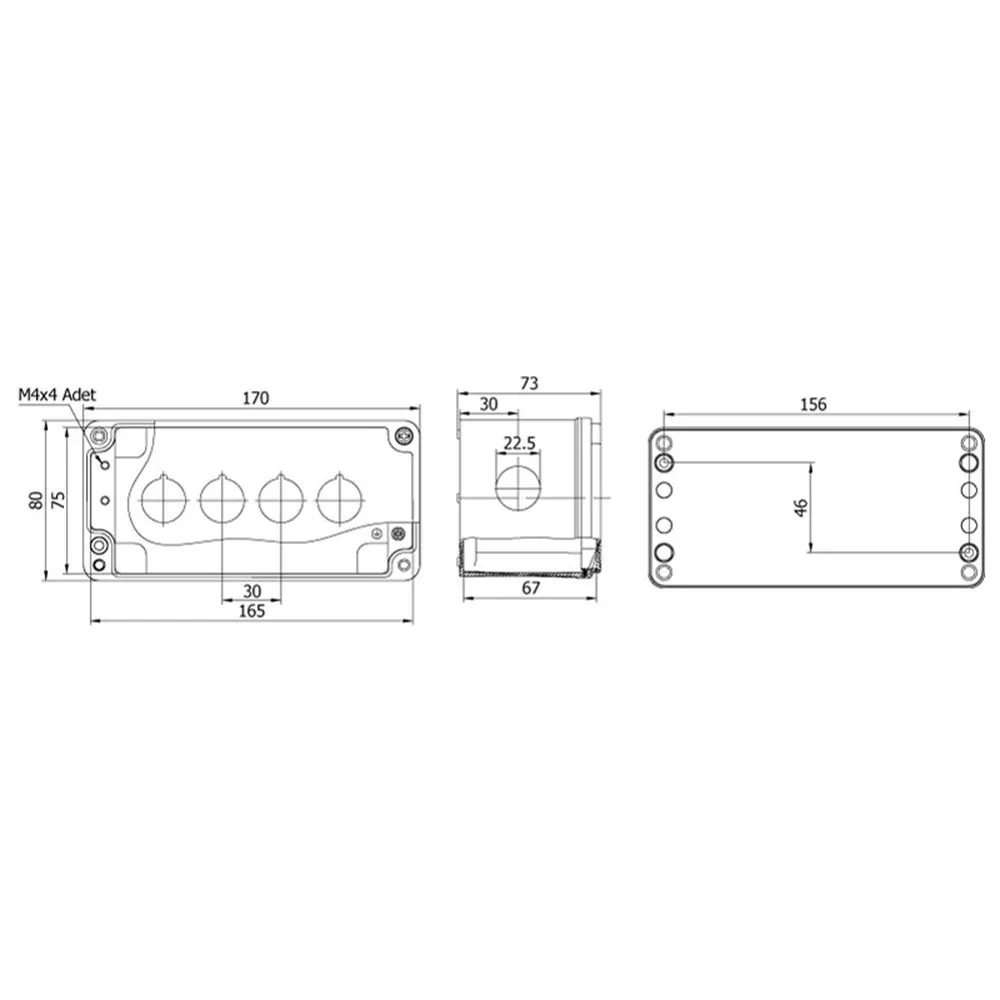

Aluminium Button Box 80x170x73mm IP67 IK09 4 Holes [4×22.5mmØ] Product Name Aluminium Button Box External Dimensions Width (mm) 170 External Dimensions Length (mm) 80 External Dimensions Depth (mm) 73 Internal Dimensions Width (mm) 165 Internal Dimensions Length (mm) 75 Internal Dimensions Depth (mm) 67 Horizontal Screwing Distance (mm) 156 Vertical Screwing Distance (mm) 46 Specifications [...]

Product Code 402621
Product Name Aluminium Button Box
Outside Dimension Width (mm) 170
Outside Dimension Length (mm) 80
Outside Dimension Depth (mm) 73
Inside Dimension Width (mm) 165
Inside Dimension Length (mm) 75
Inside Dimension Depth (mm) 67
Horizontal Screwing Distance (mm) 156
Vertical Screwing Distance (mm) 46
Features 4 Holes [4x22.5mmØ]
Cover Connection Type Stainless Steel Screw
Protection Class IP67
Impact Protection IK09
Gasket PU
Glow Wire Test Value -
Number of Cable Entries 1
Burst Cable Entry Size PG 16
Included Accessories Inox Screw
Number of Modules -
Terminal Rail -
Number of Lockouts -
Color Body: Gray RAL 7040 Cover: Yellow
Operating Temperature Aluminium
Body Material Aluminium
Contact Material Grey - RAL 7044
Standard TSE
Number of Boxes 40
HS 8536.90.10.00.00
Country of Origin Turkey
Document Not Found.
Certificate Not Found.
