+90 (232) 376 86 86
402615-1
Aluminium Button BoxesAluminium & Thermoplastic Enclosures

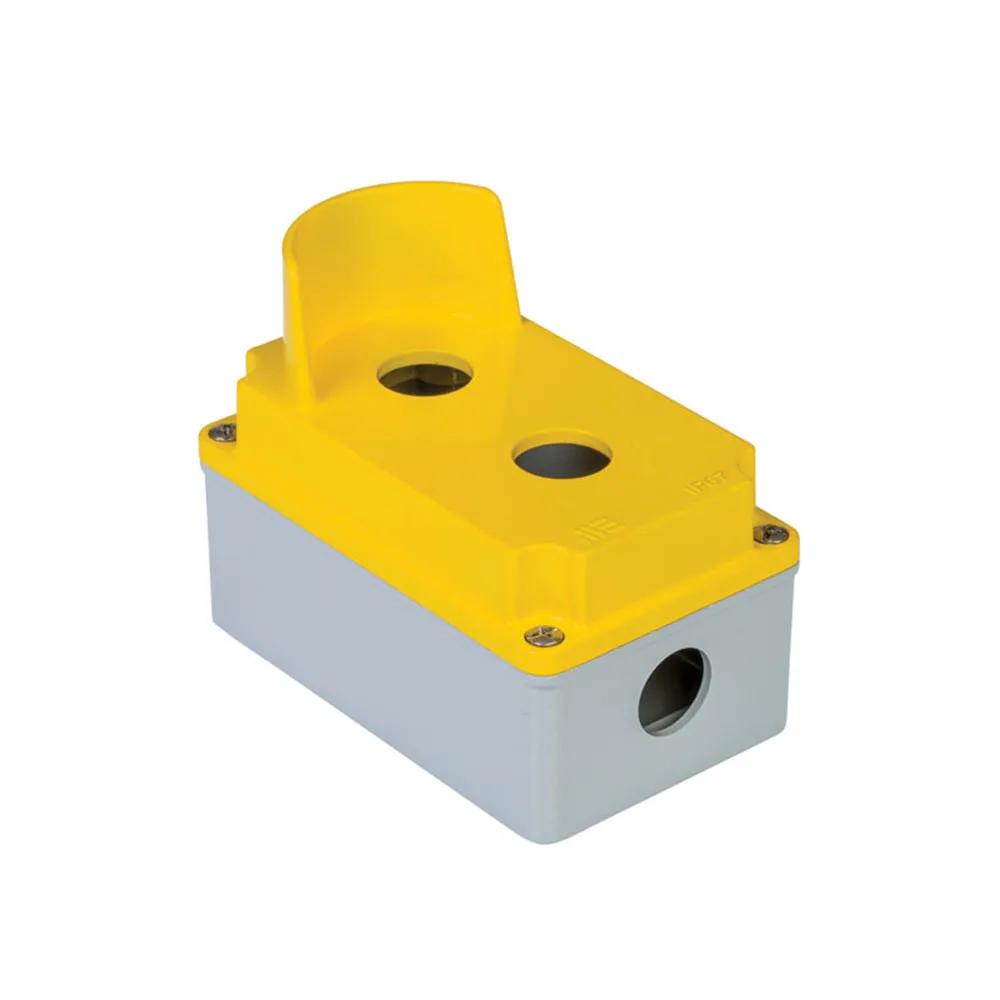

402615 - Aluminium Button Box 80x130x73mm IP67 IK09 2 Holes [2×22,5mmØ]

Product Code
402615
Product Name
Aluminium Button Box
Outside Dimension Width (mm)
130
Outside Dimension Length (mm)
80

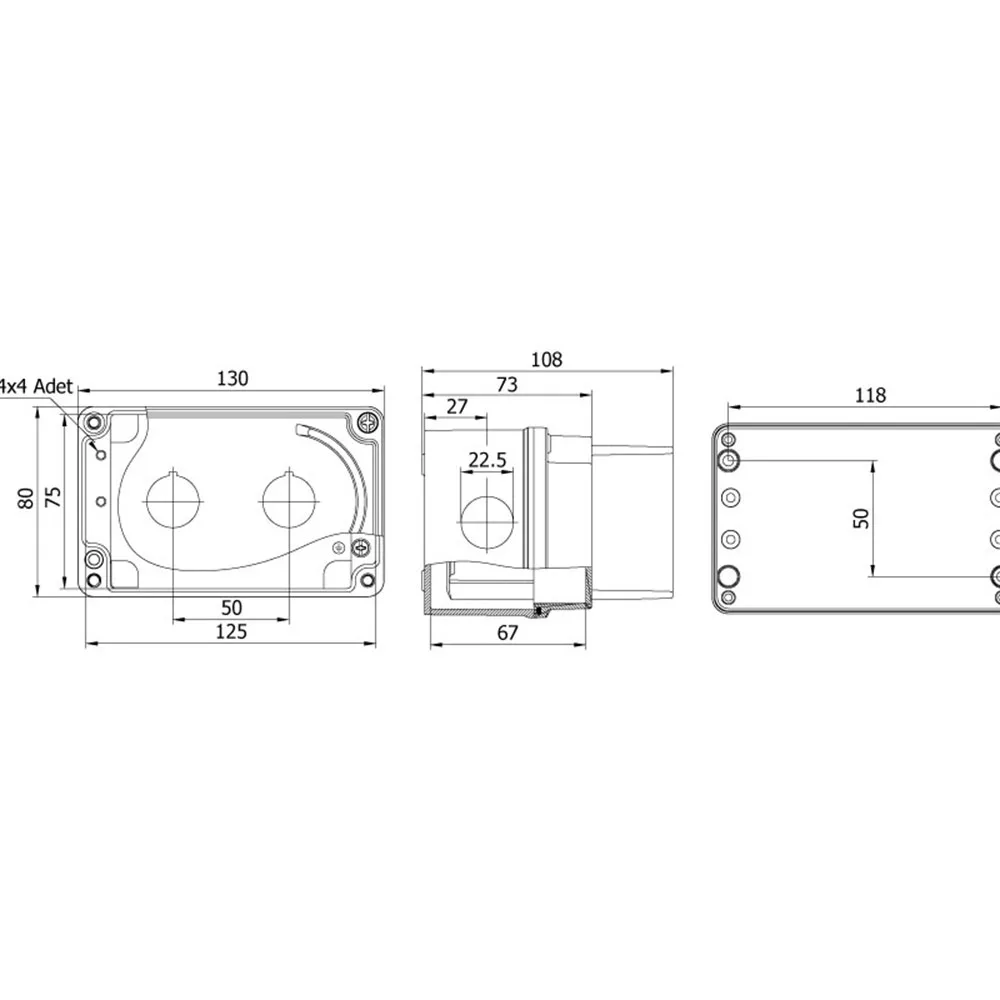

Aluminium Button Box 80x130x73mm IP67 IK09 2 Holes [2×22.5mmØ] Product Name Aluminium Button Box External Dimension Width (mm) 130 External Dimension Length (mm) 80 External Dimension Depth (mm) 73 Internal Dimension Width (mm) 125 Internal Dimension Length (mm) 75 Internal Dimension Depth (mm) 67 Horizontal Screwing Distance (mm) 118 Vertical Screwing Distance (mm) 50 Specifications [...]

Product Code 402615
Product Name Aluminium Button Box
Outside Dimension Width (mm) 130
Outside Dimension Length (mm) 80
Outside Dimension Depth (mm) 73
Inside Dimension Width (mm) 125
Inside Dimension Length (mm) 75
Inside Dimension Depth (mm) 67
Horizontal Screwing Distance (mm) 118
Vertical Screwing Distance (mm) 50
Features 2 Holes [2x22,5mmØ]
Cover Connection Type Stainless Steel Screw
Protection Class IP67
Impact Protection IK09
Gasket PU
Glow Wire Test Value -
Number of Cable Entries 1
Burst Cable Entry Size PG 16
Included Accessories Inox Screw
Number of Modules -
Terminal Rail -
Number of Lockouts -
Color Body: Gray RAL 7040 Cover: Yellow
Operating Temperature Aluminium
Body Material Aluminium
Contact Material Grey - RAL 7044
Standard TSE
Number of Boxes 48
HS 8536.90.10.00.00
Country of Origin Turkey
Document Not Found.
Certificate Not Found.
