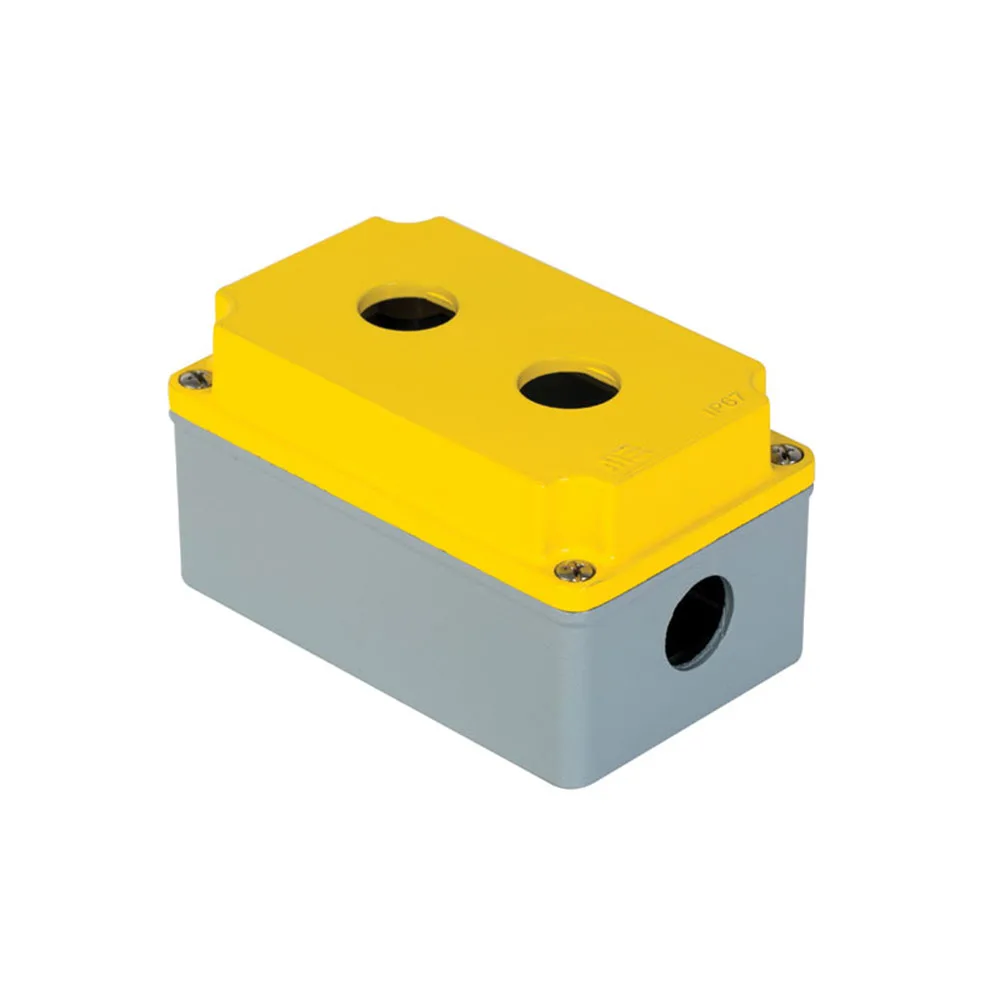

402610 - Aluminum Button Box 80x130x73mm IP67 IK09 2 Holes [2×22,5mmØ]

Product Code
402610
Product Name
Aluminum Button Box
Outside Dimension Width (mm)
130
Outside Dimension Length (mm)
80

Aluminum Button Box 80x130x73mm IP67 IK09 2 Holes [2×22.5mmØ] Product Name Aluminum Button Box External Dimension Width (mm) 130 External Dimension Length (mm) 80 External Dimension Depth (mm) 73 Internal Dimension Width (mm) 125 Internal Dimension Length (mm) 75 Internal Dimension Depth (mm) 67 Horizontal Screwing Distance (mm) 118 Vertical Screwing Distance (mm) 50 Specifications [...]

Product Code 402610
Product Name Aluminum Button Box

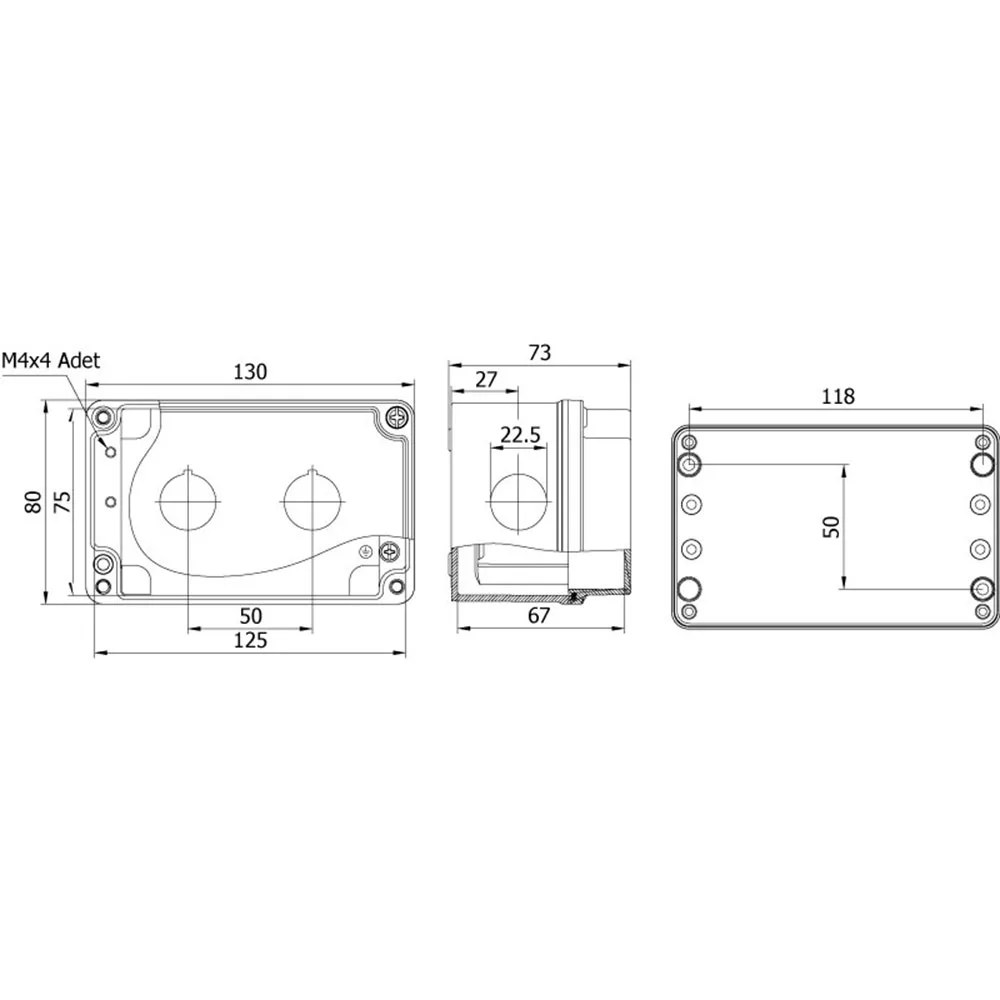

Outside Dimension Width (mm) 130
Outside Dimension Length (mm) 80
Outside Dimension Depth (mm) 73
Inside Dimension Width (mm) 125
Inside Dimension Length (mm) 75
Inside Dimension Depth (mm) 67
Horizontal Screwing Distance (mm) 118
Vertical Screwing Distance (mm) 50
Features 2 Holes [2x22,5mmØ]
Cover Connection Type Stainless Steel Screw
Protection Class IP67
Impact Protection IK09
Gasket PU
Glow Wire Test Value -
Number of Cable Entries 1
Burst Cable Entry Size PG 16
Included Accessories Inox Screw
Number of Modules -
Terminal Rail -
Number of Lockouts -
Color Body: Gray RAL 7040 Cover: Yellow
Operating Temperature Aluminum
Body Material Aluminum
Contact Material Grey - RAL 7044
Standard TSE
Number of Boxes 9
HS 8536.90.10.00.00
Country of Origin Turkey
Document Not Found.
Certificate Not Found.
