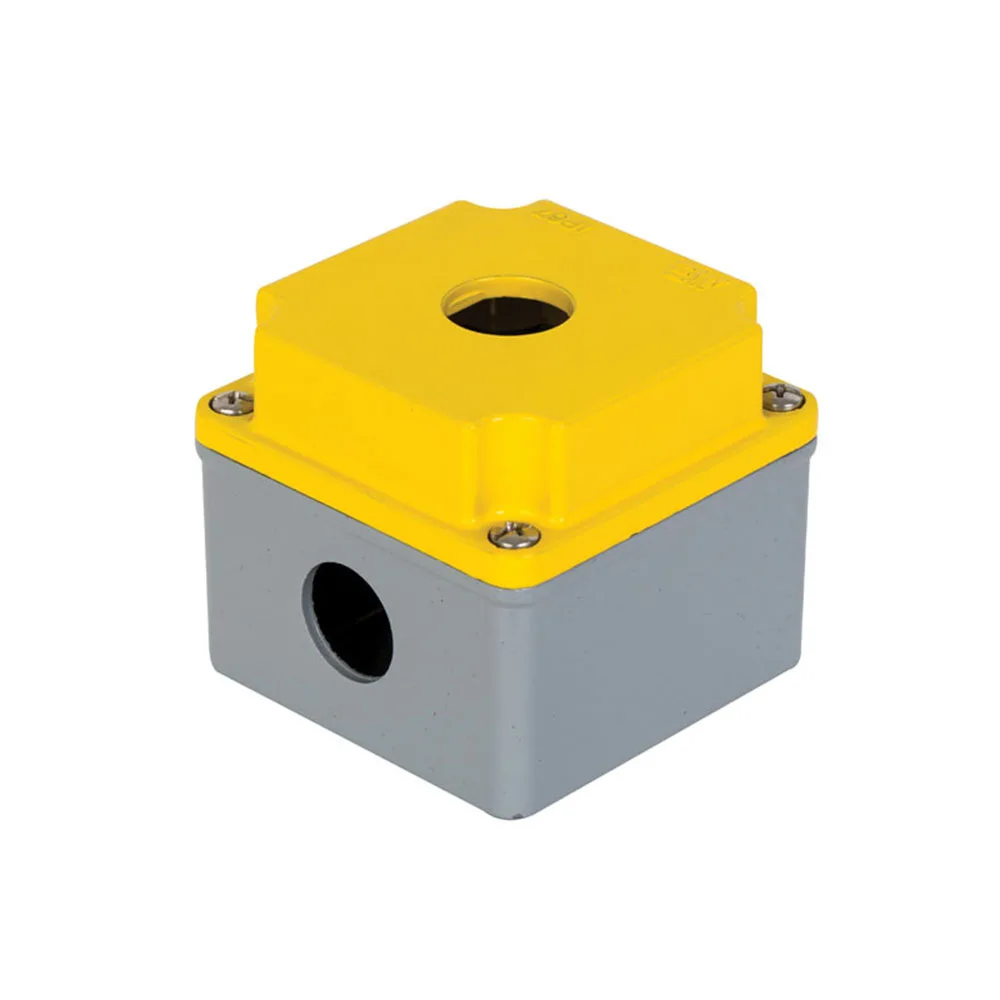

402600 - Aluminum Button Box 80x80x73mm IP67 IK09 1 Hole [1×22,5mmØ]

Product Code
402600
Product Name
Aluminum Button Box
Outside Dimension Width (mm)
80
Outside Dimension Length (mm)
80

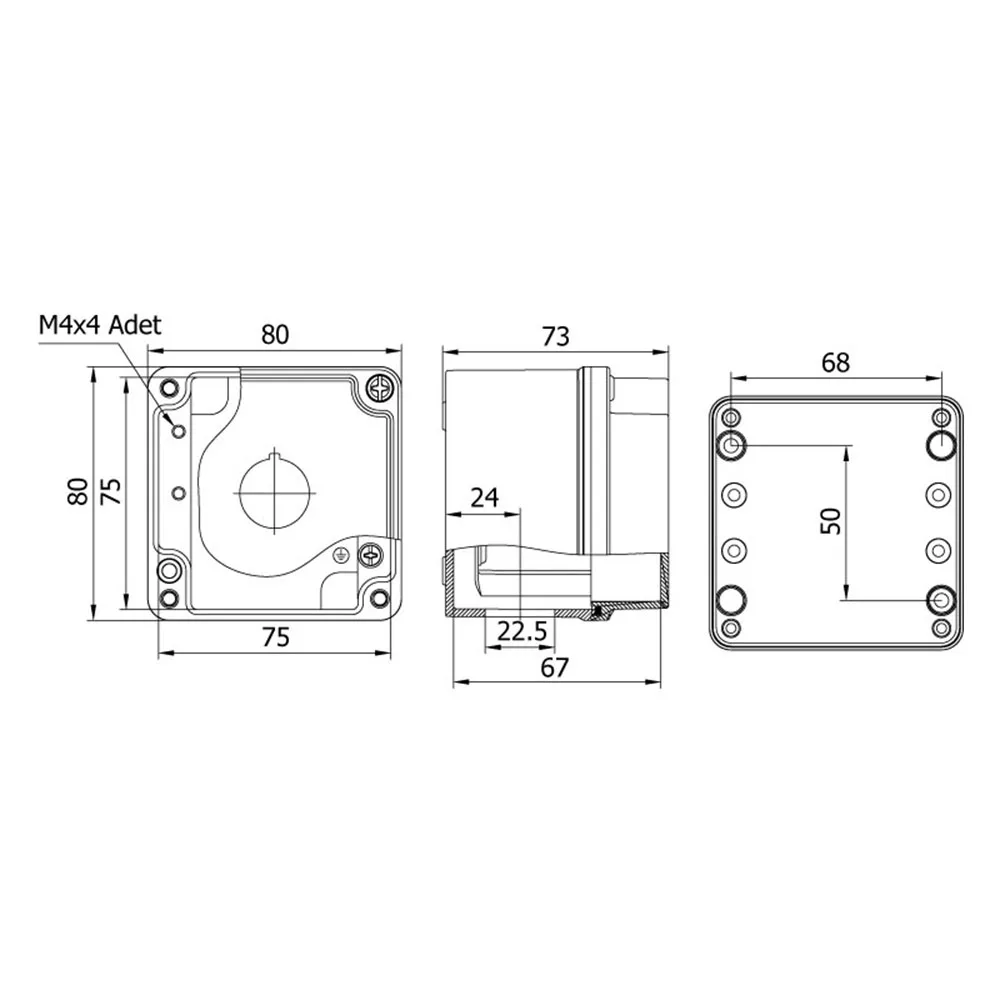

Aluminum Button Box 80x80x73mm IP67 IK09 1 Hole [1×22.5mmØ] Product Name Aluminum Button Box Outside Size Width (mm) 80 Outside Size Length (mm) 80 Outside Size Depth (mm) 73 Inside Size Width (mm) 75 Inside Size Length (mm) 75 Inside Size Depth (mm) 67 Horizontal Screwing Distance (mm) 68 Vertical Screwing Distance (mm) 50 Specifications [...]

Product Code 402600
Product Name Aluminum Button Box
Outside Dimension Width (mm) 80
Outside Dimension Length (mm) 80
Outside Dimension Depth (mm) 73
Inside Dimension Width (mm) 75
Inside Dimension Length (mm) 75
Inside Dimension Depth (mm) 67
Horizontal Screwing Distance (mm) 68
Vertical Screwing Distance (mm) 50
Features 1 Hole [1x22,5mmØ]
Cover Connection Type Stainless Steel Screw
Protection Class IP67
Impact Protection IK09
Gasket PU
Glow Wire Test Value -
Number of Cable Entries 1
Burst Cable Entry Size PG 16
Included Accessories Inox Screw
Number of Modules -
Terminal Rail -
Number of Lockouts -
Color Body: Gray RAL 7040 Cover: Yellow
Operating Temperature Aluminum
Body Material Aluminum
Contact Material Grey - RAL 7044
Standard TSE
Number of Boxes 9
HS 8536.90.10.00.00
Country of Origin Turkey
Document Not Found.
Certificate Not Found.
