402520H-1
Aluminum BuatlarAluminum and Thermoplastic Junction Plugs

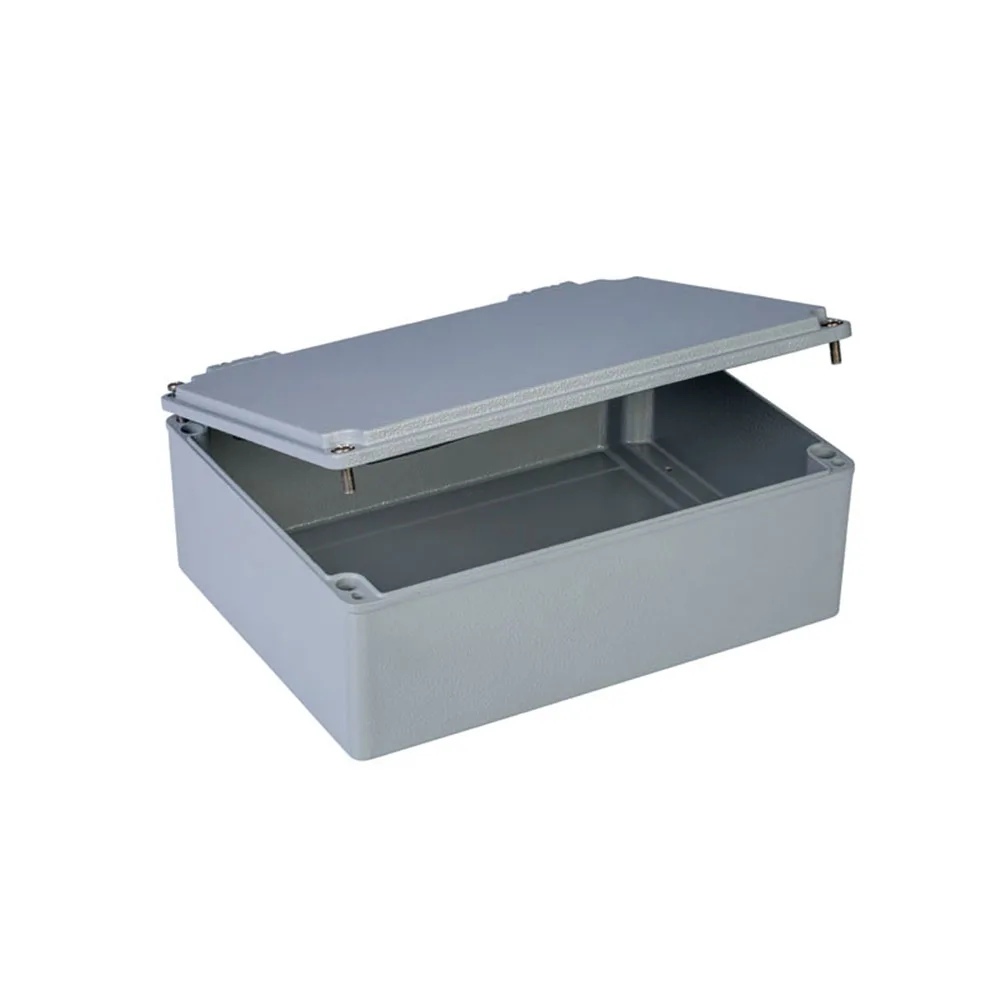

402520H - Aluminum Junction Box 250x190x90mm IP67 IK09 Hinged Cover

Product Code
402520H
Product Name
Aluminum Junction Box
Outside Dimension Width (mm)
250
Outside Dimension Length (mm)
190

Aluminum Junction Box 250x190x90mm IP67 IK09 Hinged Cover Product Name Aluminum Junction Box Outside Dimension Width (mm) 250 Outside Dimension Length (mm) 190 Outside Dimension Depth (mm) 90 Inside Dimension Width (mm) 245 Inside Dimension Length (mm) 185 Inside Dimension Depth (mm) 84 Horizontal Screwing Distance (mm) 236 Vertical Screwing Distance (mm) 156 Specifications Hinged Cover, Hole [...]

Product Code 402520H
Product Name Aluminum Junction Box
Outside Dimension Width (mm) 250
Outside Dimension Length (mm) 190
Outside Dimension Depth (mm) 90
Inside Dimension Width (mm) 245
Inside Dimension Length (mm) 185
Inside Dimension Depth (mm) 84
Horizontal Screwing Distance (mm) 236
Vertical Screwing Distance (mm) 156
Features Hinged Lid, Hole drilling option available
Cover Connection Type Stainless Steel Screw
Protection Class IP67
Impact Protection IK09
Gasket PU
Glow Wire Test Value -
Number of Cable Entries -
Burst Cable Entry Size -
Included Accessories Stainless steel screw
Number of Modules -
Terminal Rail Not available
Number of Lockouts -
Color Gray RAL 7040
Operating Temperature Aluminum
Body Material Aluminum
Contact Material Grey - RAL 7044
Standard TSE
Number of Boxes 10
HS 8536.90.10.00.00
Country of Origin Turkey
Document Not Found.
Certificate Not Found.
