402502-1
Aluminum BuatlarAluminum and Thermoplastic Junction Plugs

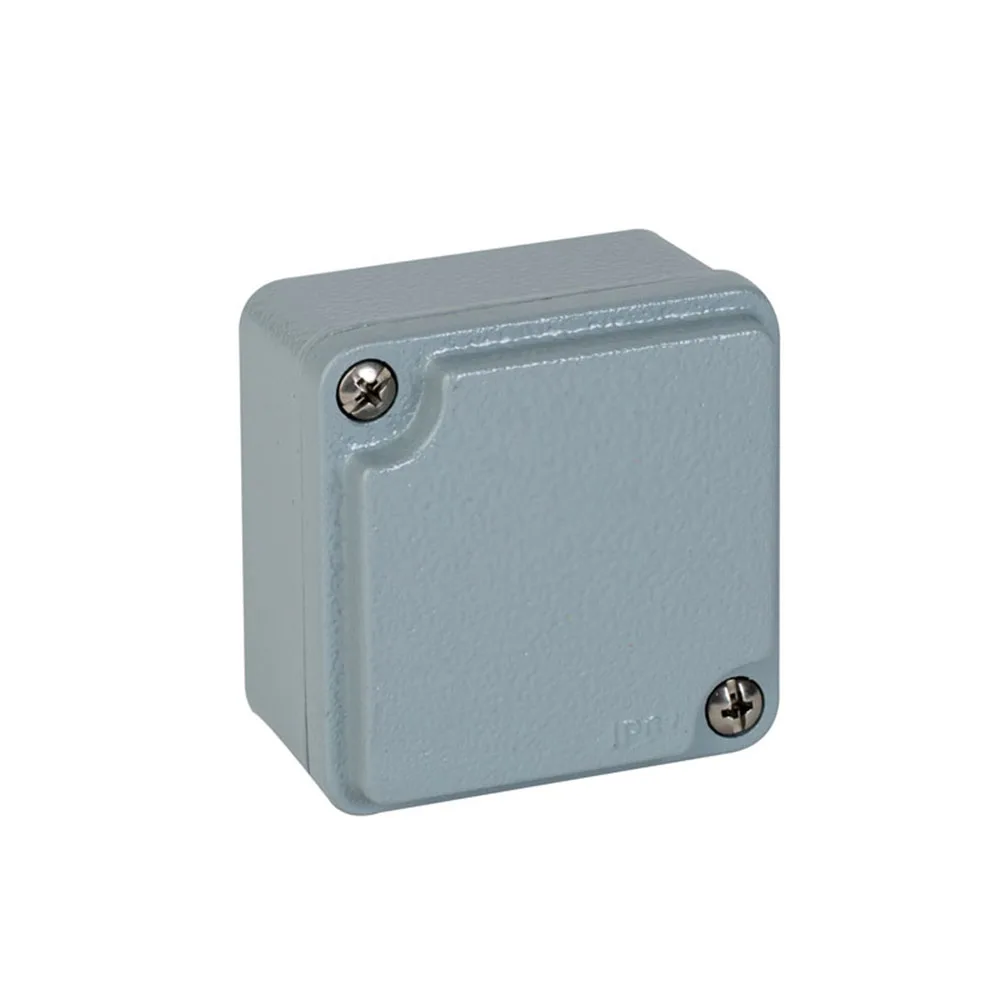

402502 - Aluminum Junction Box 65x65x40mm IP67 IK09

Product Code
402502
Product Name
Aluminum Junction Box
Outside Dimension Width (mm)
65
Outside Dimension Length (mm)
65

Aluminum Junction Box 65x65x40mm IP67 IK09 Product Name Aluminum Junction Box Exterior Size Width (mm) 65 Exterior Size Length (mm) 65 Exterior Size Depth (mm) 40 Interior Size Width (mm) 60 Interior Size Length (mm) 60 Interior Size Depth (mm) 34.8 Horizontal Screwing Distance (mm) 53 Vertical Screwing Distance (mm) 53 Vertical Screwing Distance (mm) 53 Features Hole drilling option available Cover [...]

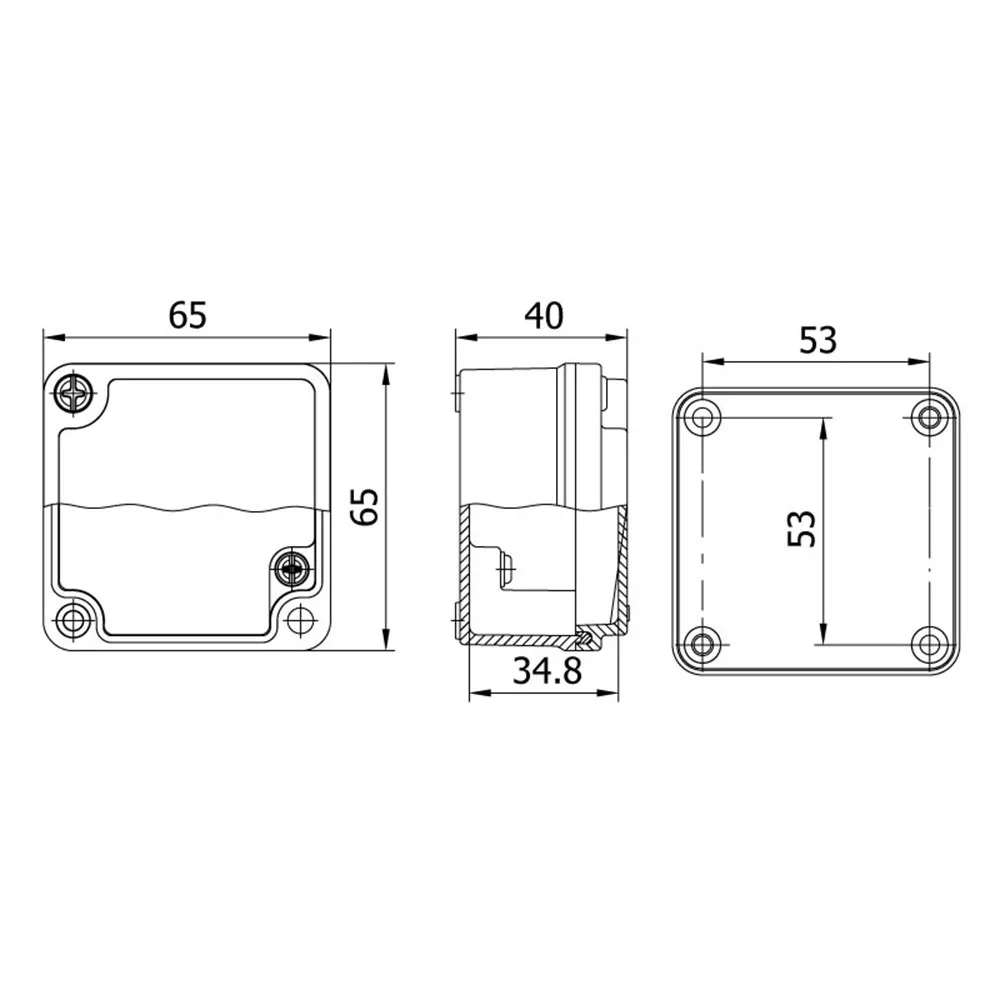

Product Code 402502
Product Name Aluminum Junction Box
Outside Dimension Width (mm) 65
Outside Dimension Length (mm) 65
Outside Dimension Depth (mm) 40
Inside Dimension Width (mm) 60
Inside Dimension Length (mm) 60
Inside Dimension Depth (mm) 34,8
Horizontal Screwing Distance (mm) 53
Vertical Screwing Distance (mm) 53
Features Hole drilling option available
Cover Connection Type Stainless Steel Screw
Protection Class IP67
Impact Protection IK09
Gasket PU
Glow Wire Test Value -
Number of Cable Entries -
Burst Cable Entry Size -
Included Accessories Stainless steel screw
Number of Modules -
Terminal Rail Not available
Number of Lockouts -
Color Gray RAL 7040
Operating Temperature Aluminum
Body Material Aluminum
Contact Material Grey - RAL 7044
Standard TSE
Number of Boxes 30
HS 8536.90.10.00.00
Country of Origin Turkey
Document Not Found.
Certificate Not Found.
