Aluminium & Thermoplastic EnclosuresThermoplastic Button Boxes

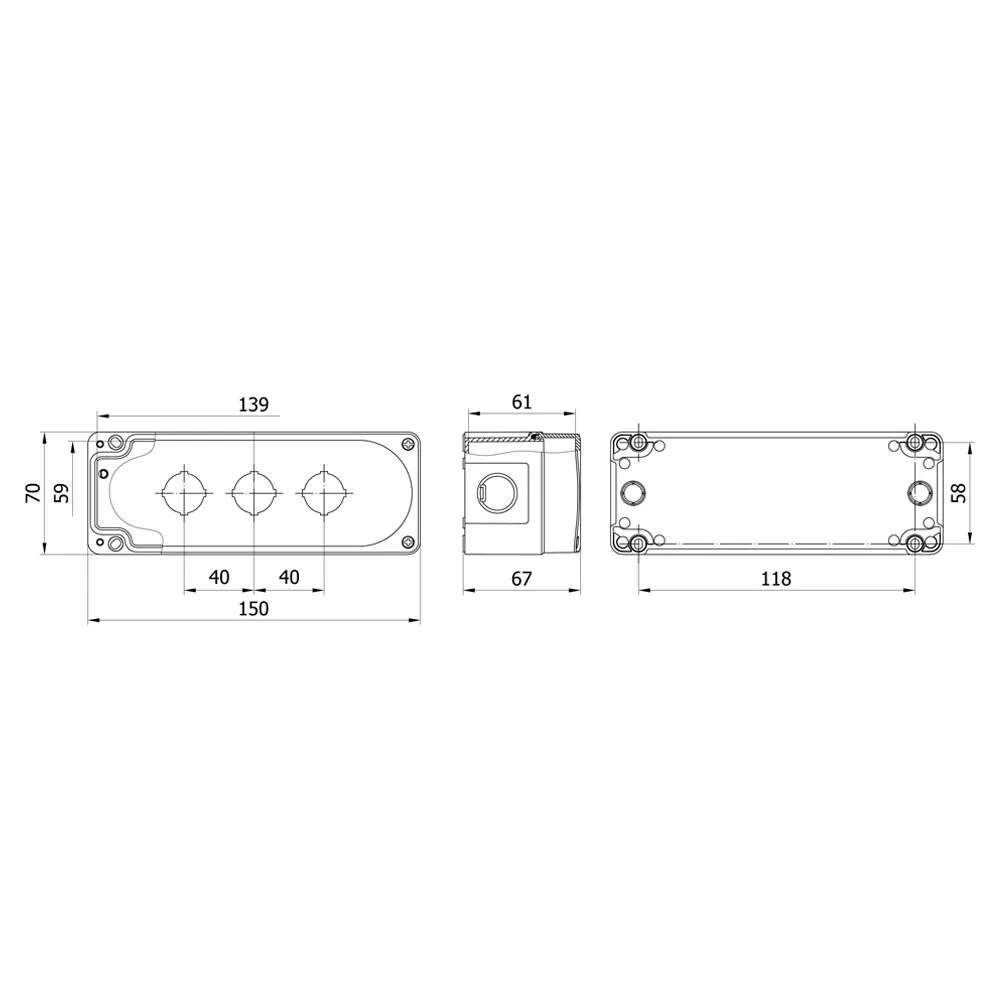

4021130504 - Thermoplastic Button Box 59x179x61mm IP67 IK06 3 Holes [3x23mmØ]

Product Code
4021130504
Product Name
Thermoplastic Button Box
Outside Dimension Width (mm)
70
Outside Dimension Length (mm)
190

Thermoplastic Button Box 59x179x61mm IP67 IK06 3 Holes [3x23mmØ] Product Name Thermoplastic Button Box External Dimension Width (mm) 70 External Dimension Length (mm) 190 External Dimension Depth (mm) 67 Internal Dimension Width (mm) 59 Internal Dimension Length (mm) 179 Internal Dimension Depth (mm) 61 Horizontal Screwing Distance (mm) 158 Vertical Screwing Distance (mm) 58 Specifications [...]

Product Code 4021130504
Product Name Thermoplastic Button Box
Outside Dimension Width (mm) 70
Outside Dimension Length (mm) 190
Outside Dimension Depth (mm) 67
Inside Dimension Width (mm) 59
Inside Dimension Length (mm) 179
Inside Dimension Depth (mm) 61
Horizontal Screwing Distance (mm) 158
Vertical Screwing Distance (mm) 58
Features 3 Holes [3x23mmØ]
Cover Connection Type Stainless Steel Screw
Protection Class IP67
Impact Protection IK06
Gasket PU
Glow Wire Test Value 650ºC
Number of Cable Entries 2
Burst Cable Entry Size PG 16
Included Accessories 1xPG16 Stepped Soft Union
Number of Modules -
Terminal Rail -
Number of Lockouts -
Color Body: GriRAL 7035 Cover: Black
Operating Temperature HF ABS
Body Material HF ABS
Contact Material Grey - RAL 7044
Standard TSE
Number of Boxes 8
HS 8536.90.10.00.00
Country of Origin Turkey
Document Not Found.
Certificate Not Found.
