Aluminum and Thermoplastic Junction PlugsThermoplastic Button Boxes

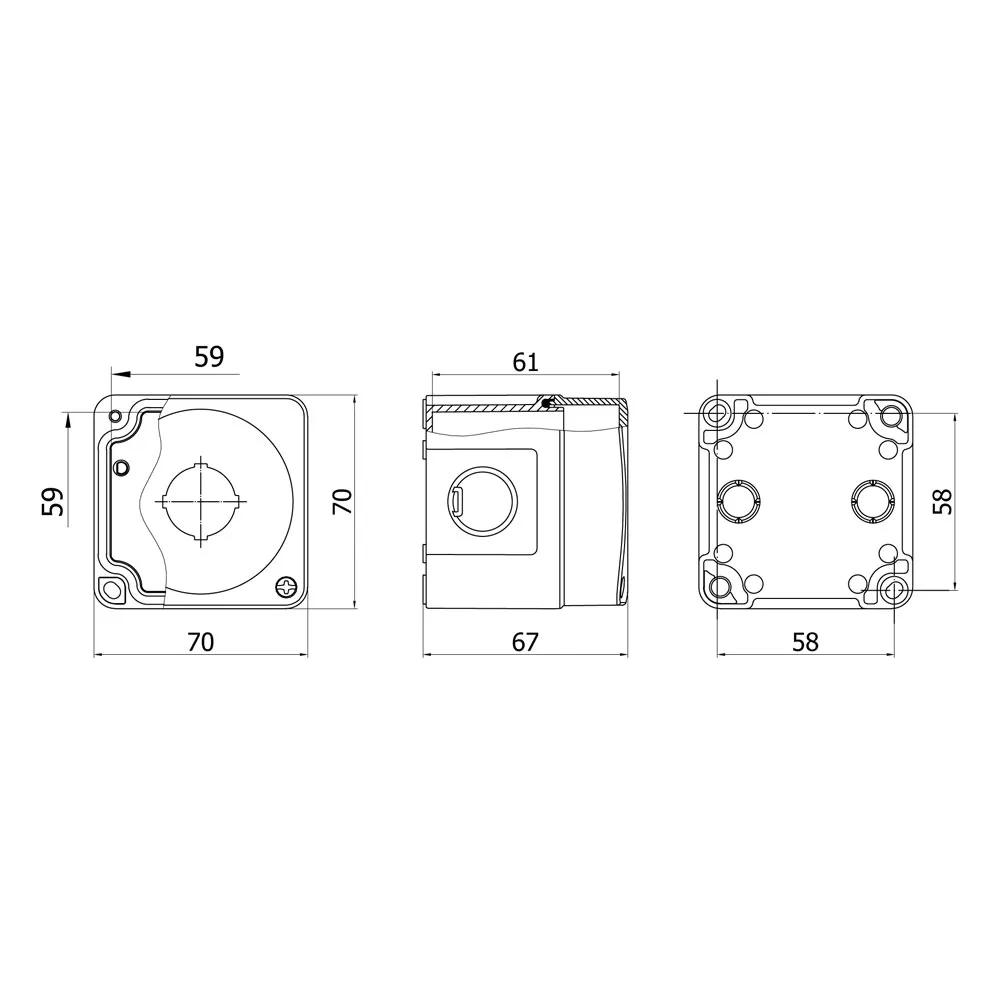

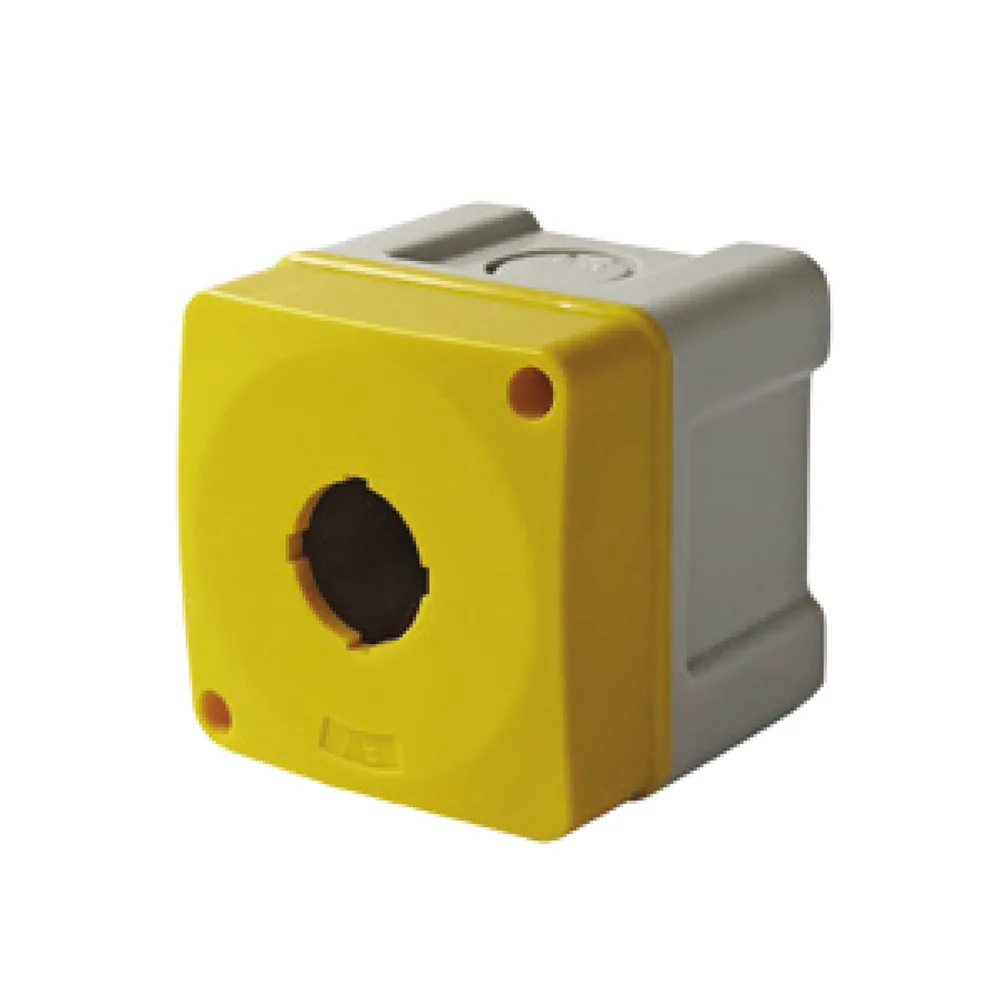

4021110508 - Thermoplastic Button Box 59x59x61mm IP67 IK06 1 Hole [1x23mmØ]

Product Code
4021110508
Product Name
Thermoplastic Button Box
Outside Dimension Width (mm)
70
Outside Dimension Length (mm)
70

Thermoplastic Button Box 59x59x61mm IP67 IK06 1 Hole [1x23mmØ] Product Name Thermoplastic Button Box External Dimension Width (mm) 70 External Dimension Length (mm) 70 External Dimension Depth (mm) 67 Internal Dimension Width (mm) 59 Internal Dimension Length (mm) 59 Internal Dimension Depth (mm) 61 Horizontal Screwing Distance (mm) 58 Vertical Screwing Distance (mm) 58 Specifications [...]

Product Code 4021110508
Product Name Thermoplastic Button Box
Outside Dimension Width (mm) 70
Outside Dimension Length (mm) 70
Outside Dimension Depth (mm) 67
Inside Dimension Width (mm) 59
Inside Dimension Length (mm) 59
Inside Dimension Depth (mm) 61
Horizontal Screwing Distance (mm) 58
Vertical Screwing Distance (mm) 58
Features 1 Hole [1x23mmØ]
Cover Connection Type Stainless Steel Screw
Protection Class IP67
Impact Protection IK06
Gasket PU
Glow Wire Test Value 650ºC
Number of Cable Entries 2
Burst Cable Entry Size PG 16
Included Accessories 1xPG16 Stepped Soft Union
Number of Modules -
Terminal Rail -
Number of Lockouts -
Color Body: GriRAL 7035 Cover: Yellow
Operating Temperature HF ABS
Body Material HF ABS
Contact Material Grey - RAL 7044
Standard TSE
Number of Boxes 16
HS 8536.90.10.00.00
Country of Origin Turkey
Document Not Found.
Certificate Not Found.
