Aluminum and Thermoplastic Junction PlugsEmpty Combination Boxes

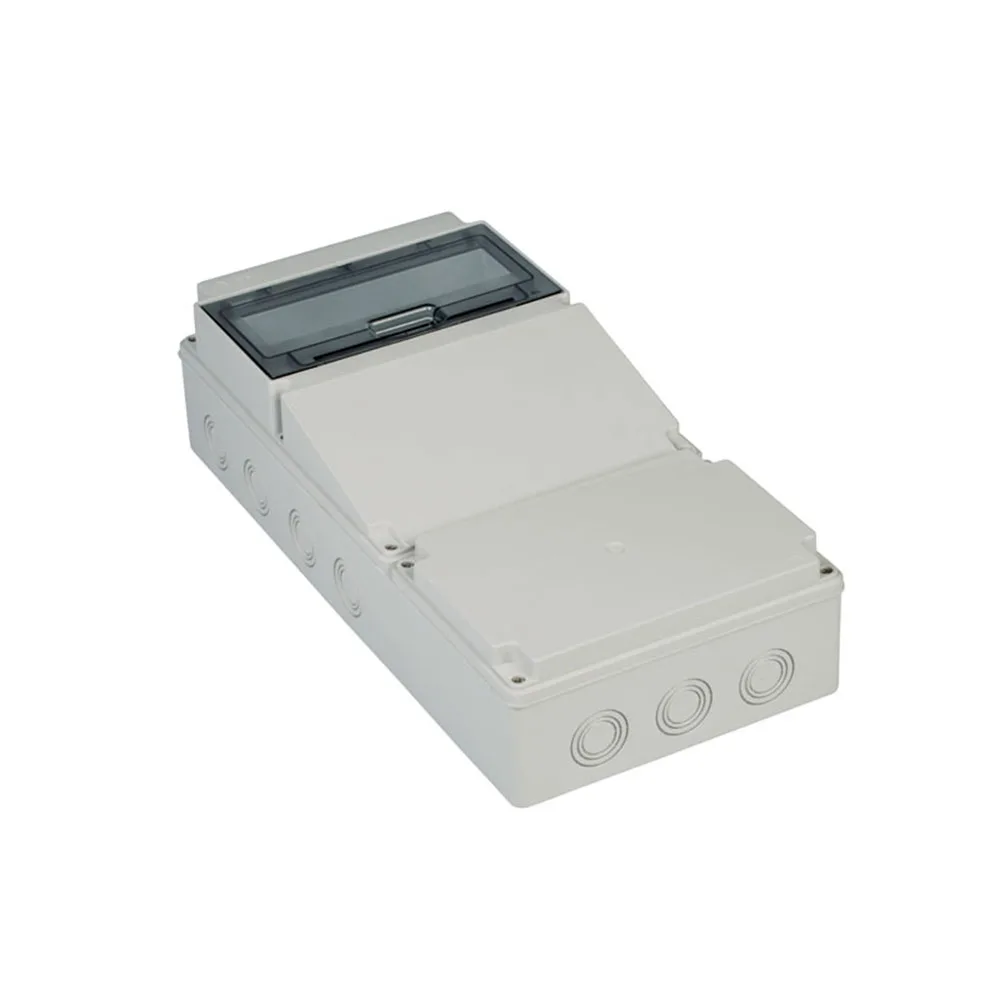

40209105 - Thermoplastic Combination Box 210x440x114mm IP66 Module No:10

Product Code
40209105
Product Name
Thermoplastic Combination Box

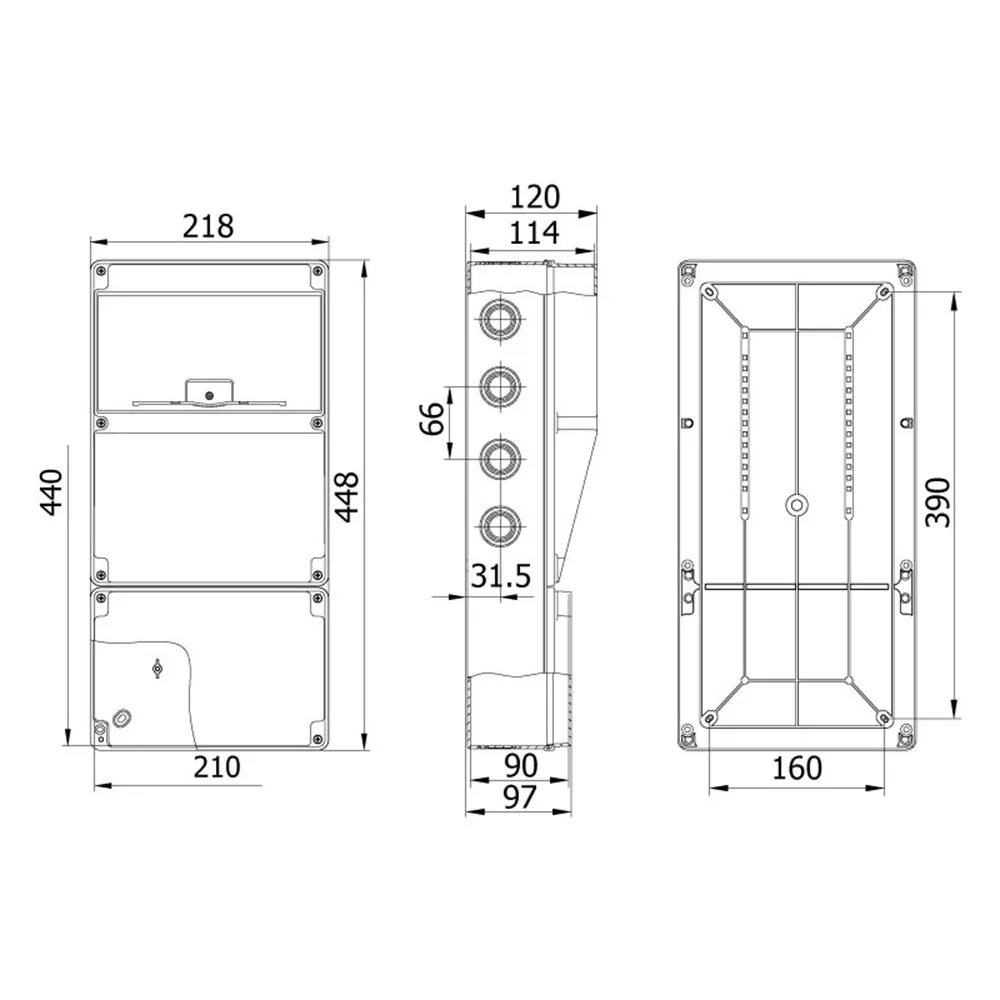

Outside Dimension Width (mm)
218
Outside Dimension Length (mm)
448

Thermoplastic Combination Box 210x440x114mm IP66 Module No:10 Product Name Thermoplastic Combination Box External Dimension Width (mm) 218 External Dimension Length (mm) 448 External Dimension Depth (mm) 120 Internal Dimension Width (mm) 210 Internal Dimension Length (mm) 440 Internal Dimension Depth (mm) 114 Horizontal Screwing Distance (mm) 160 Vertical Screwing Distance (mm) 390 Specifications 10 Module [...]

Product Code 40209105
Product Name Thermoplastic Combination Box
Outside Dimension Width (mm) 218
Outside Dimension Length (mm) 448
Outside Dimension Depth (mm) 120
Inside Dimension Width (mm) 210
Inside Dimension Length (mm) 440
Inside Dimension Depth (mm) 114
Horizontal Screwing Distance (mm) 160
Vertical Screwing Distance (mm) 390
Features 10 Modules
Cover Connection Type Stainless Steel Screw
Protection Class IP66
Impact Protection IK06
Gasket PU
Glow Wire Test Value 650ºC
Number of Cable Entries 14
Burst Cable Entry Size PG 16-21-29
Included Accessories 1xPG21+1xPG29 Soft Cable Gland
Number of Modules 10
Terminal Rail Available
Number of Lockouts -
Color Gray RAL 7035
Operating Temperature HF ABS
Body Material HF ABS+ Transparent PC
Contact Material Grey - RAL 7044
Standard TSE
Number of Boxes 6
HS 8536.90.10.00.00
Country of Origin Turkey
Document Not Found.
Certificate Not Found.
T3PS2D3NE01P
High Current Application Plugs and Sockets
T3PS2D3NE01P - Machine Socket (Flat) (Pilot Contact)
Product Code
T3PS2D3NE01P
IP
66
Kontakt
5
Voltage
380/415
T3PS2P3NE01
High Current Application Plugs and Sockets
T3PS2P3NE01 - Straight Plug
Product Code
T3PS2P3NE01
IP
66
Kontakt
5
Voltage
380/415
T3PS2C30E01P
High Current Application Plugs and Sockets
T3PS2C30E01P - Extension Socket (Pilot Contact)
Product Code
T3PS2C30E01P
IP
66
Kontakt
4
Voltage
380/415
T3PS2P3NE01P
High Current Application Plugs and Sockets
T3PS2P3NE01P - Straight Plug (Pilot Contact)
Product Code
T3PS2P3NE01P
IP
66
Kontakt
5
Voltage
380/415
T3PS2P30E01
High Current Application Plugs and Sockets
T3PS2P30E01 - Straight Plug
Product Code
T3PS2P30E01
IP
66
Kontakt
4
Voltage
380/415
T3PS2D30E01
High Current Application Plugs and Sockets
T3PS2D30E01 - Machine Socket (Straight)
Product Code
T3PS2D30E01
IP
66
Kontakt
4
Voltage
380/415
T3PS2A3NE01P
High Current Application Plugs and Sockets
T3PS2A3NE01P - Machine Plug (Pilot Contact)
Product Code
T3PS2A3NE01P
IP
66
Kontakt
5
Voltage
380/415
T3PS2A30E01P
High Current Application Plugs and Sockets
T3PS2A30E01P - Machine Plug (Pilot Contact)
Product Code
T3PS2A30E01P
IP
66
Kontakt
4
Voltage
380/415
T3PS2W
High Current Application Plugs and Sockets
T3PS2W - Wall Body (Oblique)
Product Code
T3PS2W
IP
66
Kontakt
4
Voltage
380/415
T3PS2C3NE01P
High Current Application Plugs and Sockets
T3PS2C3NE01P - Extension Socket (Pilot Contact)
Product Code
T3PS2C3NE01P
IP
66
Kontakt
5
Voltage
380/415
