Aluminium & Thermoplastic EnclosuresEmpty Combination Boxes

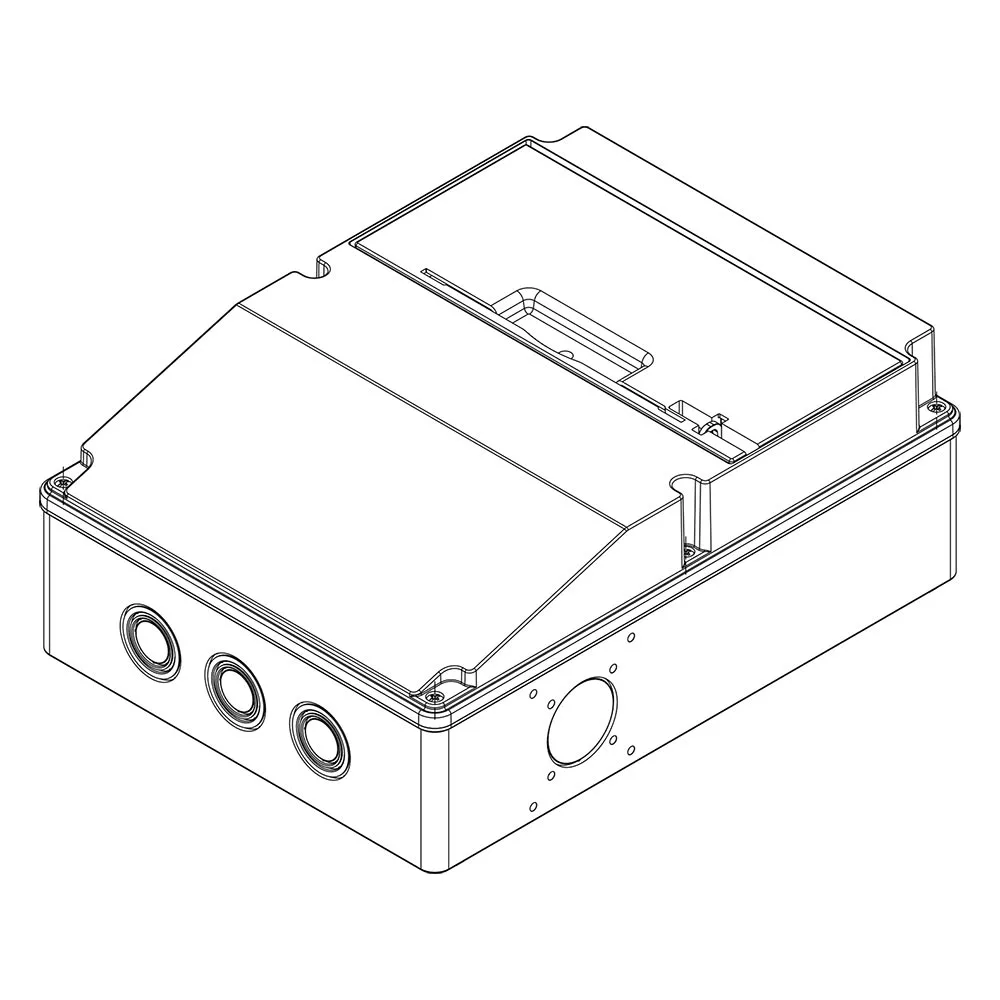

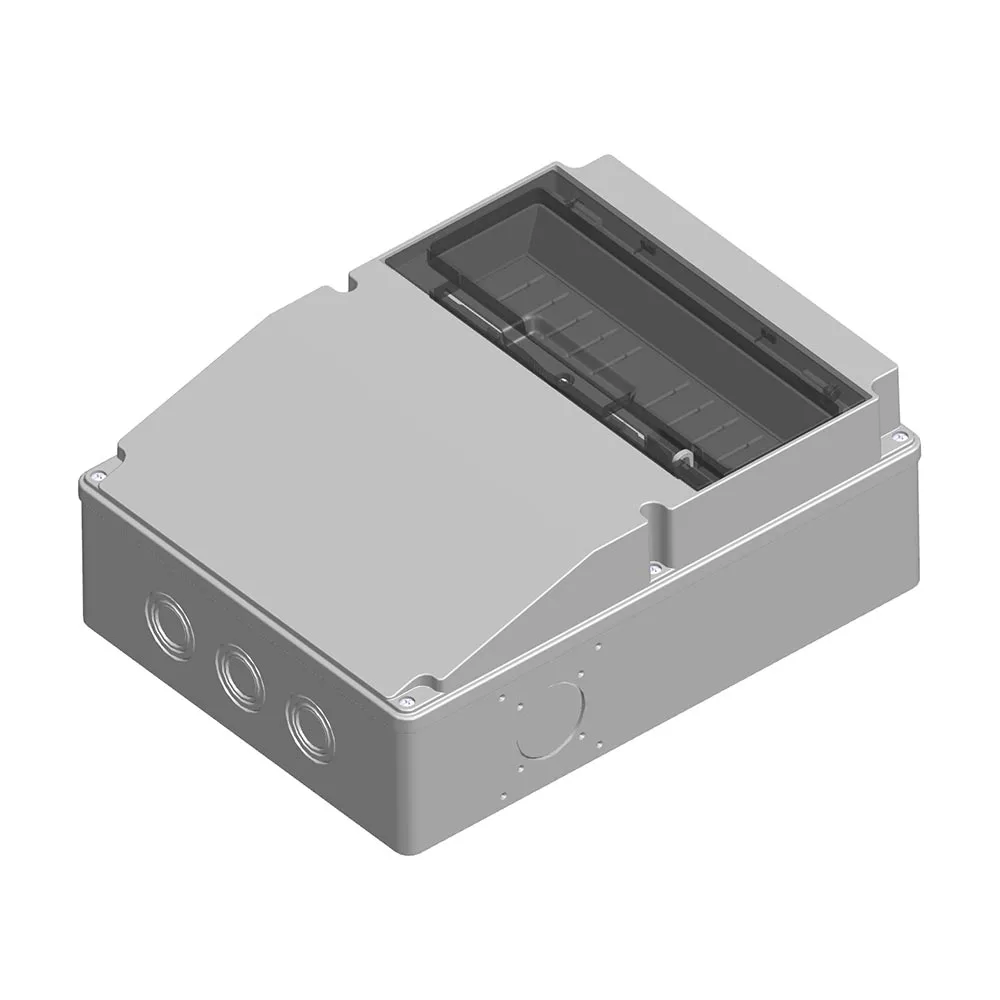

40206505 - Thermoplastic Combination Box 240x320x120 mm IP66 Number of Modules: 12

Product Code
40206505
Product Name
Thermoplastic Combination Box
Outside Dimension Width (mm)
240
Outside Dimension Length (mm)
320

Thermoplastic Combination Box 240x320x120 mm IP66 Number of Modules: 12 Product Name Thermoplastic Combination Box External Dimensions Width (mm) 240 External Dimensions Length (mm) 320 External Dimensions Depth (mm) 120 Internal Dimensions Width (mm) 248 Internal Dimensions Length (mm) 327 Internal Dimensions Depth (mm) 126 Horizontal Screwing Distance (mm) 190 Vertical Screwing Distance (mm) 270 Specifications [...]

Product Code 40206505
Product Name Thermoplastic Combination Box
Outside Dimension Width (mm) 240
Outside Dimension Length (mm) 320
Outside Dimension Depth (mm) 120
Inside Dimension Width (mm) 248
Inside Dimension Length (mm) 327
Inside Dimension Depth (mm) 126
Horizontal Screwing Distance (mm) 190
Vertical Screwing Distance (mm) 270
Features 12 Modules
Cover Connection Type Stainless Steel Screw
Protection Class IP66
Impact Protection IK06
Gasket PU
Glow Wire Test Value 650ºC
Number of Cable Entries 8
Burst Cable Entry Size PG 16-21
Included Accessories 1xPG16+1xPG21 Cable Gland
Number of Modules 12
Terminal Rail Available
Number of Lockouts -
Color Gray RAL 7035
Operating Temperature HF ABS
Body Material PC
Contact Material Grey - RAL 7044
Standard TSE
Number of Boxes 5
HS 8536.90.10.00.00
Country of Origin Turkey
Document Not Found.
Certificate Not Found.
