Aluminium & Thermoplastic EnclosuresEmpty Combination Boxes

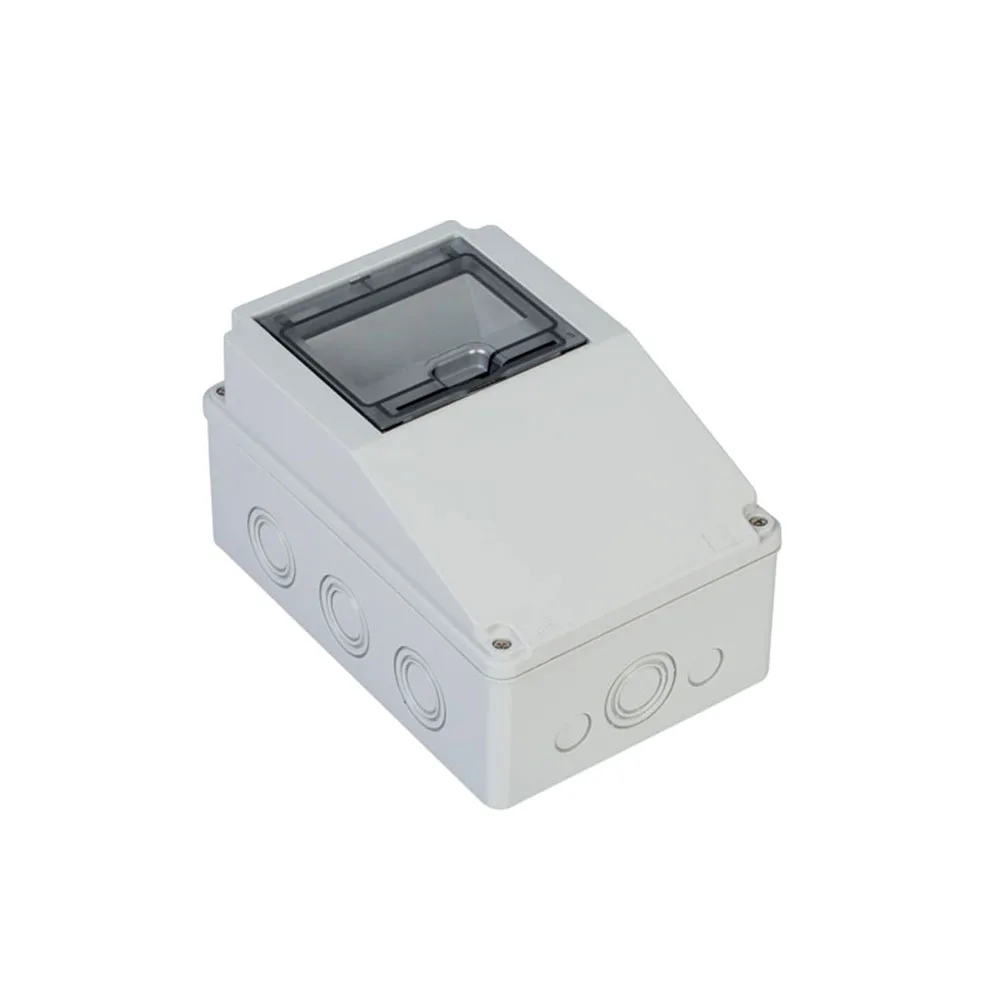

40204605 - Thermoplastic Combination Box 140x210x114mm IP66 Module No:7

Product Code
40204605
Product Name
Thermoplastic Combination Box
Outside Dimension Width (mm)
149
Outside Dimension Length (mm)
218

Thermoplastic Combination Box 140x210x114mm IP66 Module No:7 Product Name Thermoplastic Combination Box External Dimensions Width (mm) 149 External Dimensions Length (mm) 218 External Dimensions Depth (mm) 120 Internal Dimensions Width (mm) 140 Internal Dimensions Length (mm) 210 Internal Dimensions Depth (mm) 114 Horizontal Screwing Distance (mm) 91 Vertical Screwing Distance (mm) 160 Specifications 7 Module [...]

Product Code 40204605
Product Name Thermoplastic Combination Box

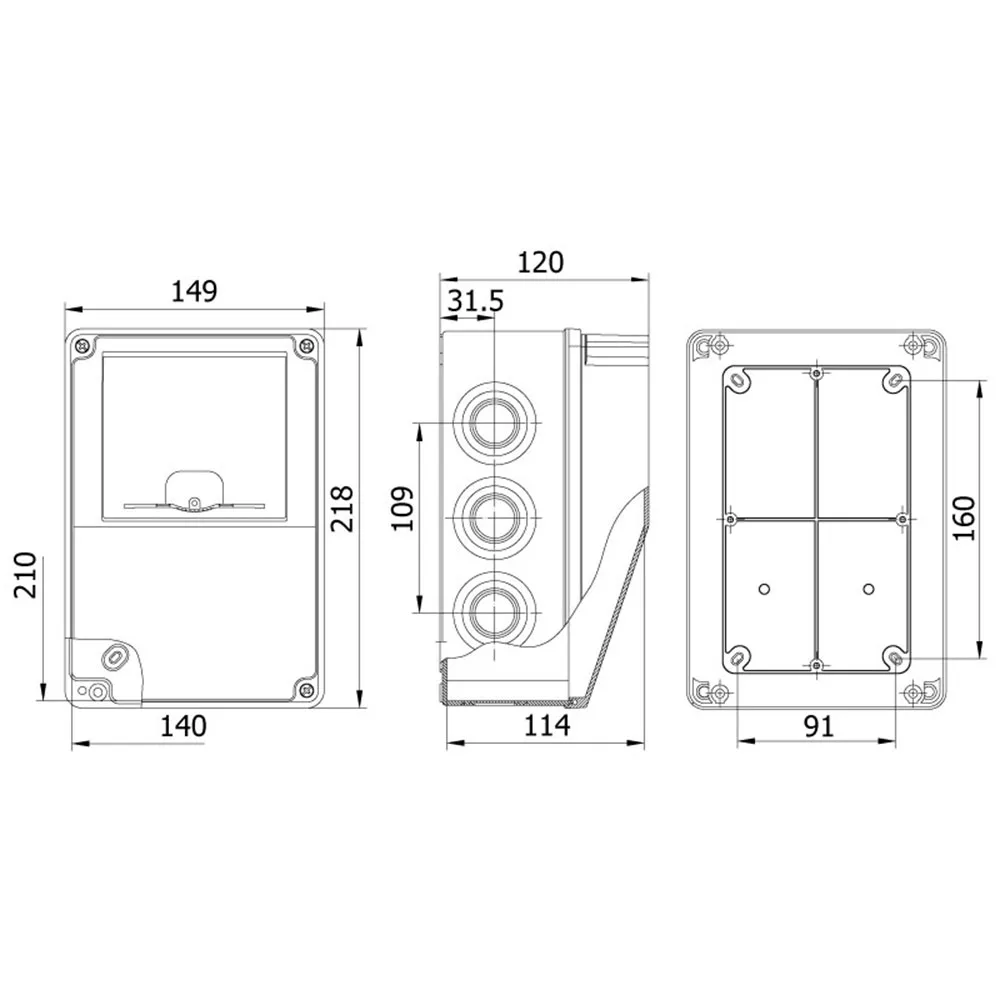

Outside Dimension Width (mm) 149
Outside Dimension Length (mm) 218
Outside Dimension Depth (mm) 120
Inside Dimension Width (mm) 140
Inside Dimension Length (mm) 210
Inside Dimension Depth (mm) 114
Horizontal Screwing Distance (mm) 91
Vertical Screwing Distance (mm) 160
Features 7 Modules
Cover Connection Type Stainless Steel Screw
Protection Class IP66
Impact Protection IK06
Gasket PU
Glow Wire Test Value 650ºC
Number of Cable Entries 8 + (4XPG11)
Burst Cable Entry Size PG 16-21-29
Included Accessories 1xPG21+1xPG29 Soft Cable Gland
Number of Modules 7
Terminal Rail Available
Number of Lockouts -
Color Gray RAL 7035
Operating Temperature HF ABS
Body Material HF ABS+ Transparent PC
Contact Material Grey - RAL 7044
Standard TSE
Number of Boxes 14
HS 8536.90.10.00.00
Country of Origin Turkey
Document Not Found.
Certificate Not Found.
