Aluminium & Thermoplastic EnclosuresEmpty Combination Boxes

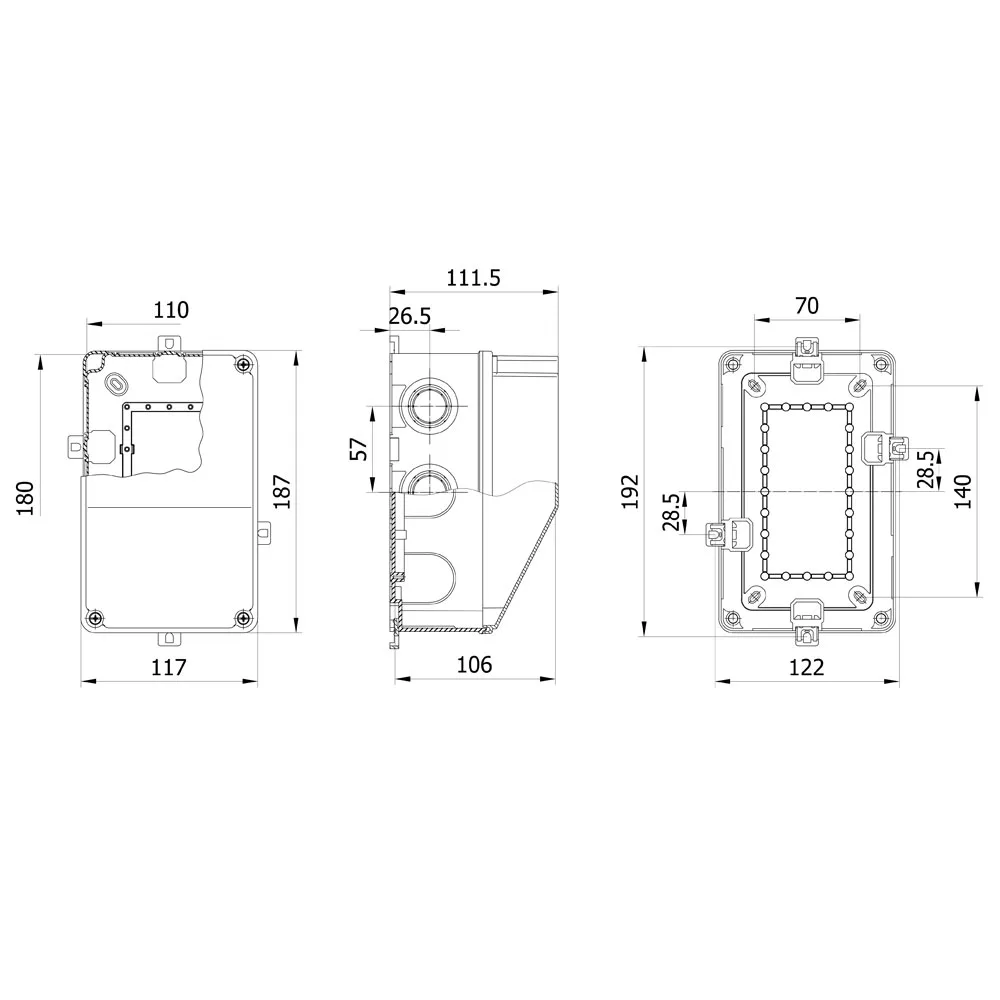

40201905 - Thermoplastic Combination Box 110x180x106mm IP66

Product Code
40201905
Product Name
Thermoplastic Combination Box
Outside Dimension Width (mm)
117
Outside Dimension Length (mm)
187

Thermoplastic Combination Box 110x180x106mm IP66 Product Name Thermoplastic Combination Box External Dimension Width (mm) 117 External Dimension Length (mm) 187 External Dimension Depth (mm) 111.5 Internal Dimension Width (mm) 110 Internal Dimension Length (mm) 180 Internal Dimension Depth (mm) 106 Horizontal Screwing Distance (mm) 70 Vertical Screwing Distance (mm) 140 Specifications 0 Module Cover Connection [...]

Product Code 40201905
Product Name Thermoplastic Combination Box
Outside Dimension Width (mm) 117
Outside Dimension Length (mm) 187
Outside Dimension Depth (mm) 111,5
Inside Dimension Width (mm) 110
Inside Dimension Length (mm) 180
Inside Dimension Depth (mm) 106
Horizontal Screwing Distance (mm) 70
Vertical Screwing Distance (mm) 140
Features 0 Module
Cover Connection Type Stainless Steel Screw
Protection Class IP66
Impact Protection IK06
Gasket PU
Glow Wire Test Value 650ºC
Number of Cable Entries 10
Burst Cable Entry Size PG 16-21
Included Accessories 1xPG16+1xPG21 Soft Cable Gland
Number of Modules 0
Terminal Rail Not Available
Number of Lockouts -
Color Gray RAL 7035
Operating Temperature HF ABS
Body Material HF ABS
Contact Material Grey - RAL 7044
Standard -
Number of Boxes 15
HS 8536.90.10.00.00
Country of Origin Turkey
Document Not Found.
Certificate Not Found.
