290223072
10 A - 250 V DD Series with 24, 42, 72, and 108 ContactsContact InsertsHeavy-Duty Connectors

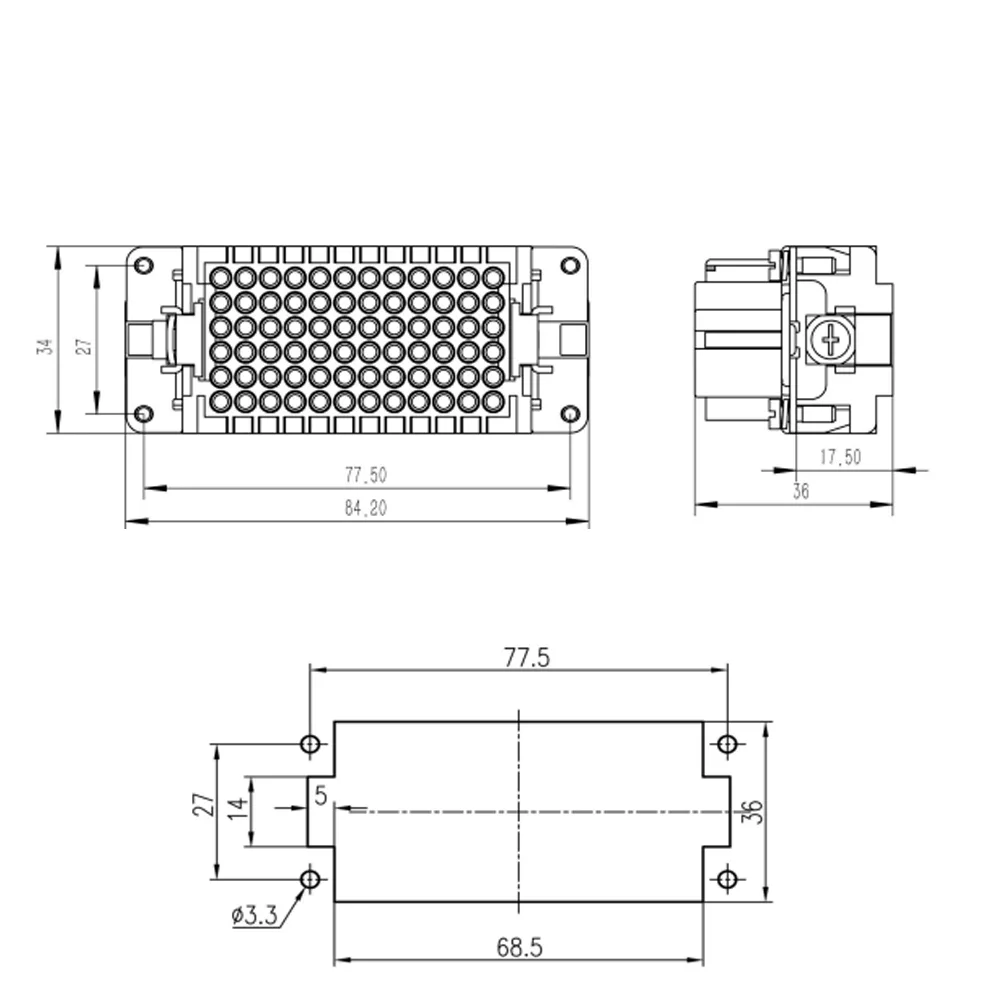

290223072 – Outlet

Connection Method
Crimped connection
Tip
Socket
Series
DD Series
Suitable Body Type
16B
Socket
Connection Method Crimped connection
Tip Socket
Series DD Series
Suitable Body Type 16B
Number of Contacts 72P+E
Conductor Cross Section 0.14 ... 2.5 mm²
Cable Entry Back
Current 10 A
Nominal Voltage Conductor-to-Ground -
Rated Voltage Conductor-to-Conductor 250 V
Nominal Impulse Voltage 4 kV
Nominal Voltage in Accordance with UL 600V
Insulation Resistance ≥1010 Ω
Contact Resistance ≤3 mΩ
Temperature Limit -40 ... +125 °C
Scraping Length 0.14 ~ 1.5 mm²: 8 mm | 2.5 mm²: 6 mm
Tightening Torque -
Matching Cycle ≥500
AWG 26-14
Pollution Level 3
Raw Material (Seed) PC
Color (Core) Gray
Raw Material (Contact) Brass (Silver plated)
Material Flammability Class in Accordance with UL 94 V-0
RoHS In accordance with the exception
Implementation Standards 0
Certificates 0
Number of Boxes 0
Net Weight 62
Country of Origin -
HS Code 8536.69.90.00.18
EAN-13 Code 0
Document Not Found.
Certificate Not Found.
