Product Code
7006505CB504
Product Name

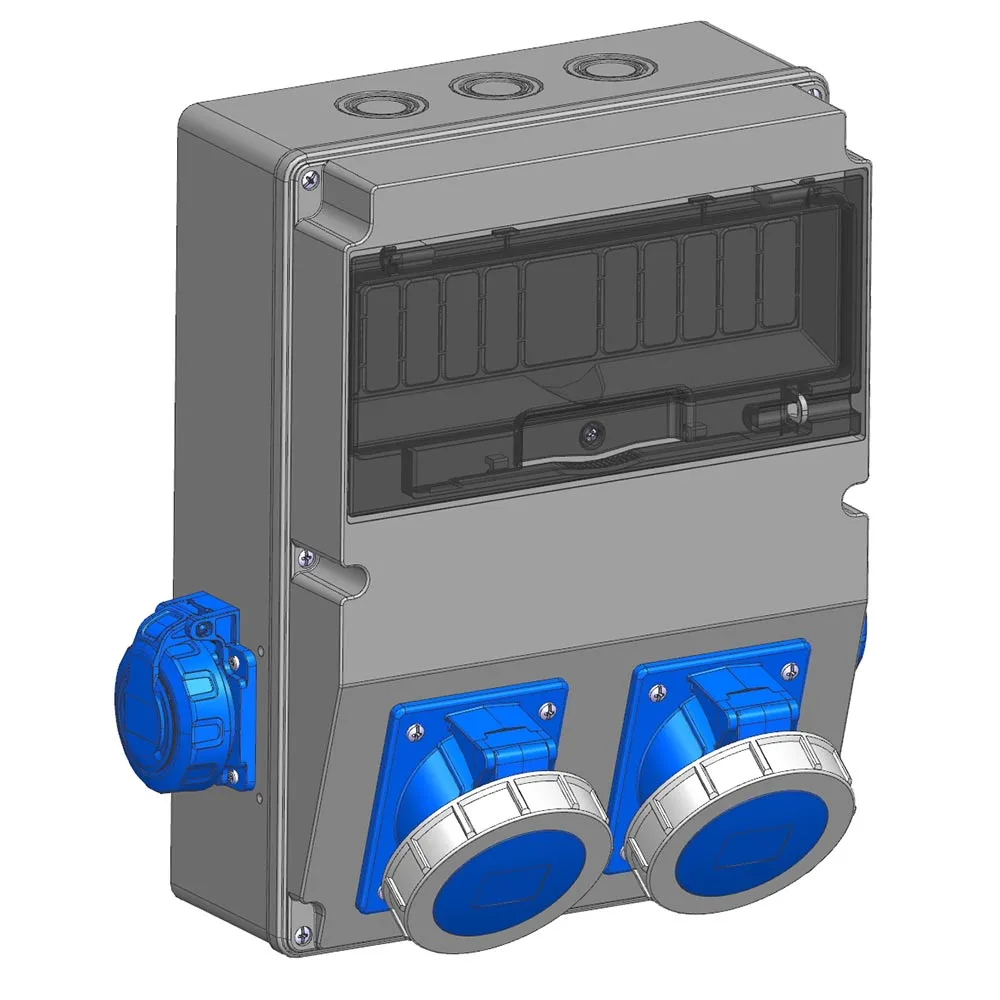

Assembled Combination Box
Front 1 - Socket
406515V 3x32A MACHINE SOCKOUT CURVED IP67 SCREW
Front 2 - Socket
406515V 3x32A MACHINE SOCKOUT CURVED IP67 SCREW
Side 1 - Socket
T13960 1x16A IP66/68 Panel Socket
Side 2 - Socket
T13960 1x16A IP66/68 Panel Socket
Outside Dimension Width (mm)
248
Outside Dimension Length (mm)
328
Outside Dimension Depth (mm)
126
Inside Dimension Width (mm)
240
Inside Dimension Length (mm)
320
Inside Dimension Depth (mm)
120
Horizontal Screwing Distance (mm)
190
Vertical Screwing Distance (mm)
270
Features
Empty Junction Code: 40206505CB
Cover Connection Type
Stainless Steel Screw
Impact Protection
IK06 for Empty Junction Box
Glow Wire Test Value
HF650 °C
Number of Cable Entries
14
Burst Cable Entry Size
PG 16-21-29
Included Accessories
1xPG16+1xPG21 Graded soft Cable Gland
Operating Temperature
HF ABS + Transparent PC
Body Material
Gray - RAL 7044
Contact Material
Grey - RAL 7044
HS
Socket: 8536.90.10.00.00 Sockets: 8536.69.90.00.18
Country of Origin
Turkey, Austria
