Product Code
70065050B003
Product Name

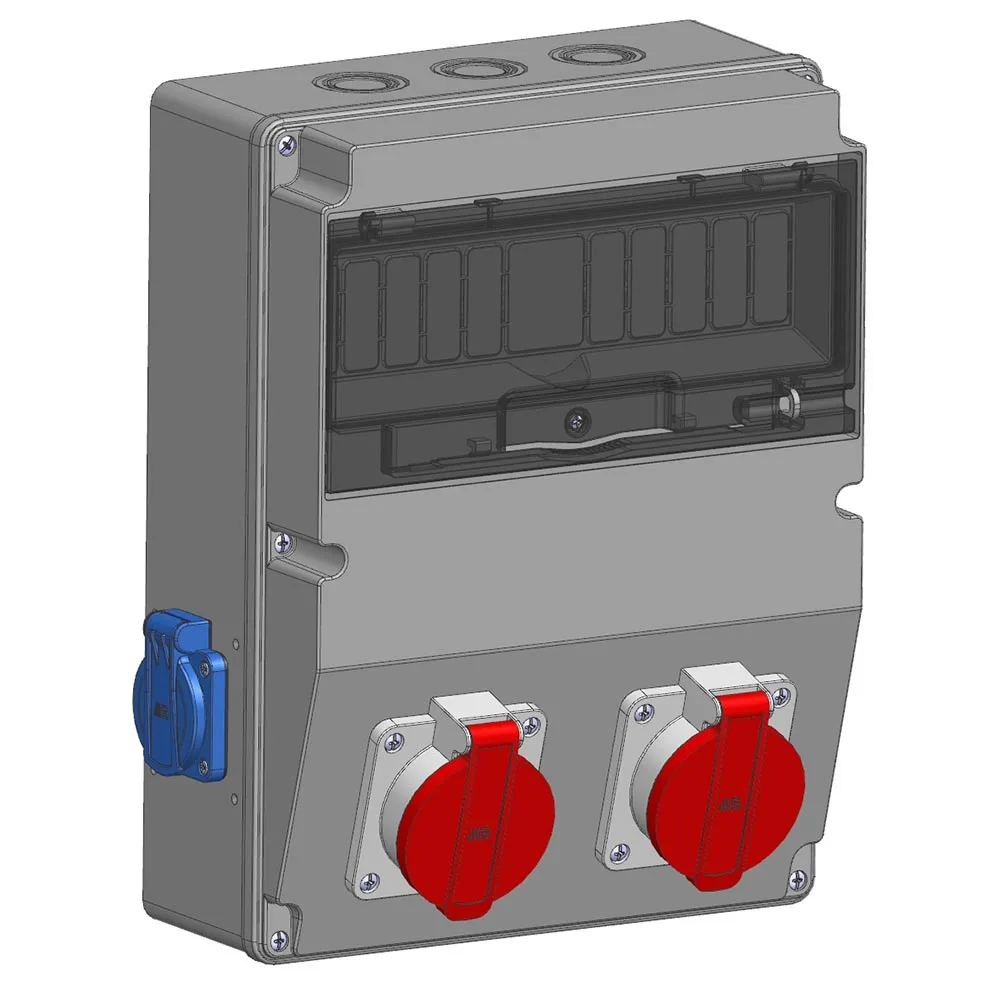

Assembled Combination Box
Front 1 - Socket
401042 3x25A MACHINE SOCKOUT
Front 2 - Socket
401042 3x25A MACHINE SOCKOUT
Side 1 - Socket
40401616ST06 1x16A Panel Socket-IP44
Side 2 - Socket
40401616ST06 1x16A Panel Socket-IP44
Outside Dimension Width (mm)
248
Outside Dimension Length (mm)
328
Outside Dimension Depth (mm)
126
Inside Dimension Width (mm)
240
Inside Dimension Length (mm)
320
Inside Dimension Depth (mm)
120
Horizontal Screwing Distance (mm)
190
Vertical Screwing Distance (mm)
270
Features
Empty Junction Code: 402065050B
Cover Connection Type
Stainless Steel Screw
Impact Protection
IK06 for Empty Junction Box
Glow Wire Test Value
HF650 °C
Number of Cable Entries
14
Burst Cable Entry Size
PG 16-21-29
Included Accessories
1xPG16+1xPG21 Graded soft Cable Gland
Operating Temperature
HF ABS + Transparent PC
Body Material
Gray - RAL 7044
Contact Material
Grey - RAL 7044
HS
Socket: 8536.90.10.00.00 Sockets: 8536.69.90.00.18
Country of Origin
Turkey, Austria
