Product Code
7003505CB506
Product Name

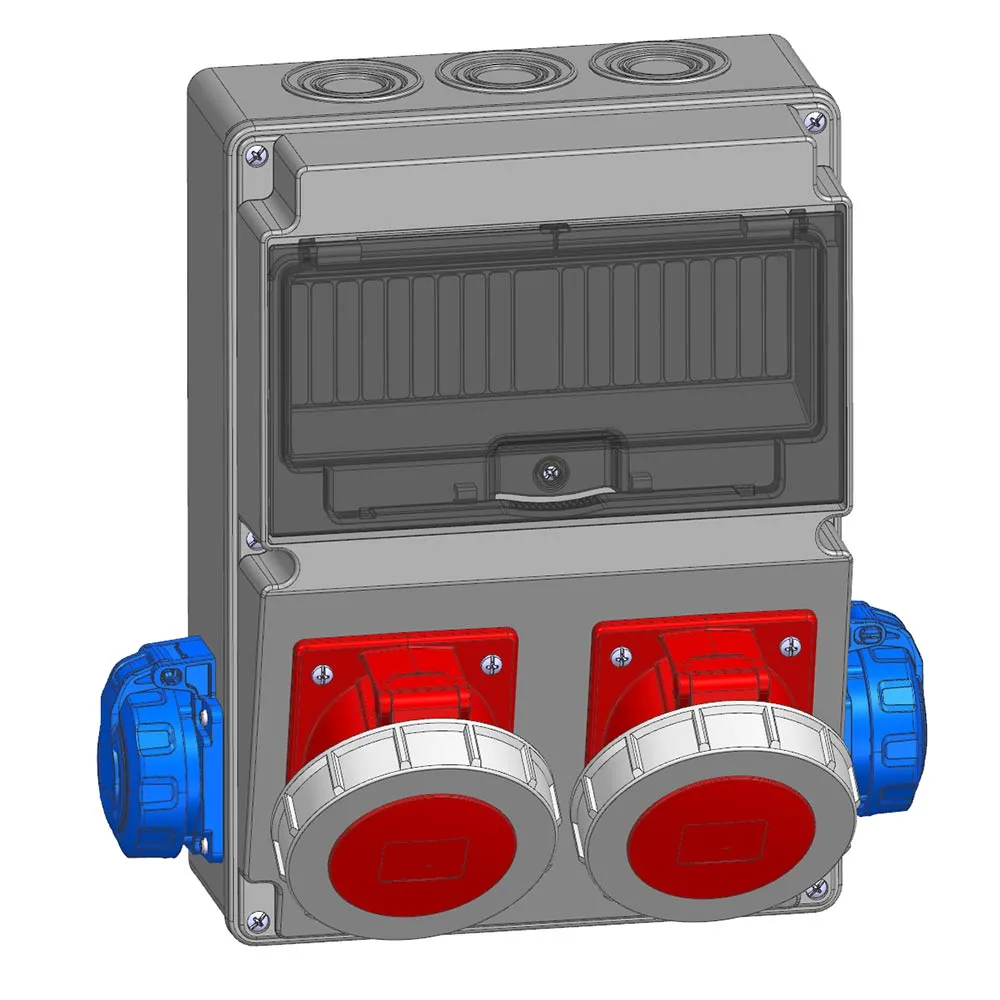

Assembled Combination Box
Front 1 - Socket
406523V 5x32A IP67 Oblique Machine Socket
Front 2 - Socket
406523V 5x32A IP67 Oblique Machine Socket
Side 1 - Socket
T13960 1x16A IP66/68 Panel Socket
Side 2 - Socket
T13960 1x16A IP66/68 Panel Socket
Outside Dimension Width (mm)
218
Outside Dimension Length (mm)
298
Outside Dimension Depth (mm)
120
Inside Dimension Width (mm)
210
Inside Dimension Length (mm)
290
Inside Dimension Depth (mm)
114
Horizontal Screwing Distance (mm)
160
Vertical Screwing Distance (mm)
240
Features
Empty Junction Code: 40203505CB
Cover Connection Type
Stainless Steel Screw
Impact Protection
IK06 for Empty Junction Box
Glow Wire Test Value
HF650 °C
Number of Cable Entries
14
Burst Cable Entry Size
PG 16-21-29
Included Accessories
1xPG16+1xPG21 Graded soft Cable Gland
Operating Temperature
HF ABS + Transparent PC
Body Material
Gray - RAL 7044
Contact Material
Grey - RAL 7044
HS
Socket: 8536.90.10.00.00 Sockets: 8536.69.90.00.18
Country of Origin
Turkey, Austria
