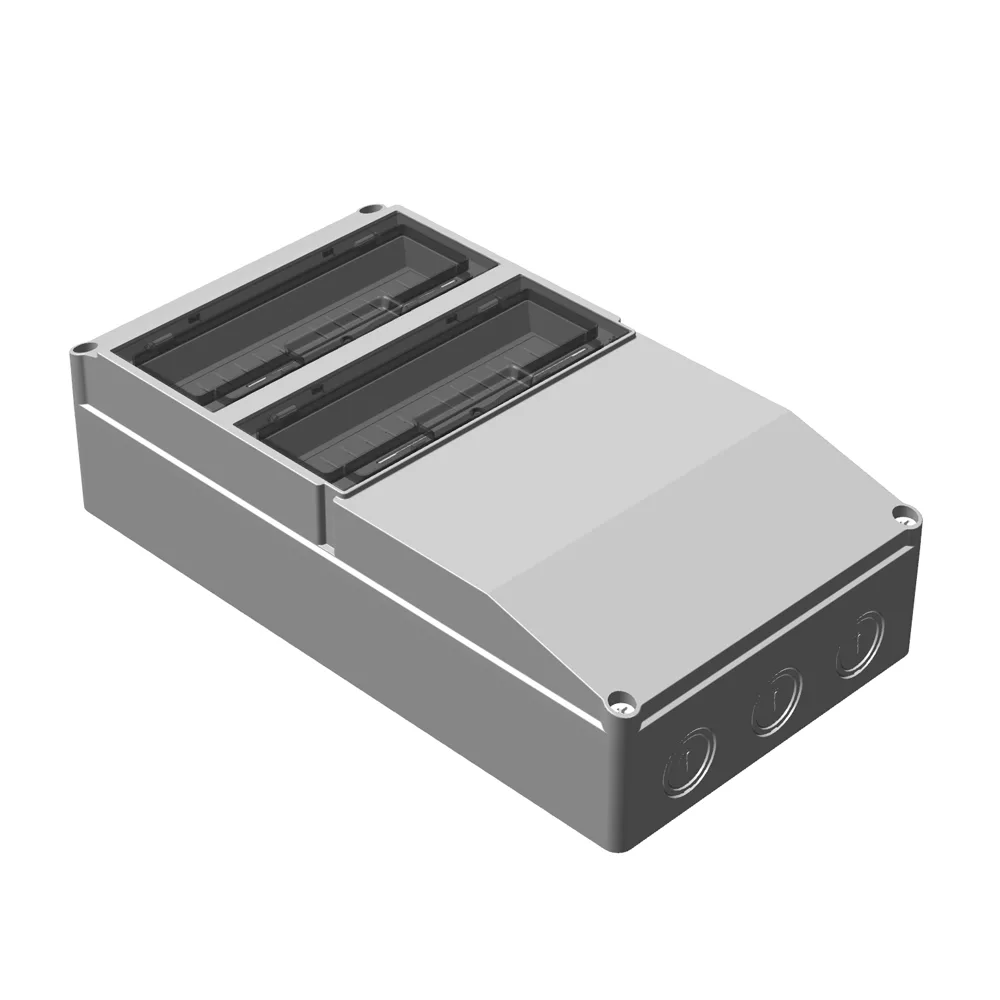

40209505 - Thermoplastic Combination Box 300x540x150mm IP66 Module No:2×14 Hinged

Product Code
40209505
Product Name
Thermoplastic Combination Box

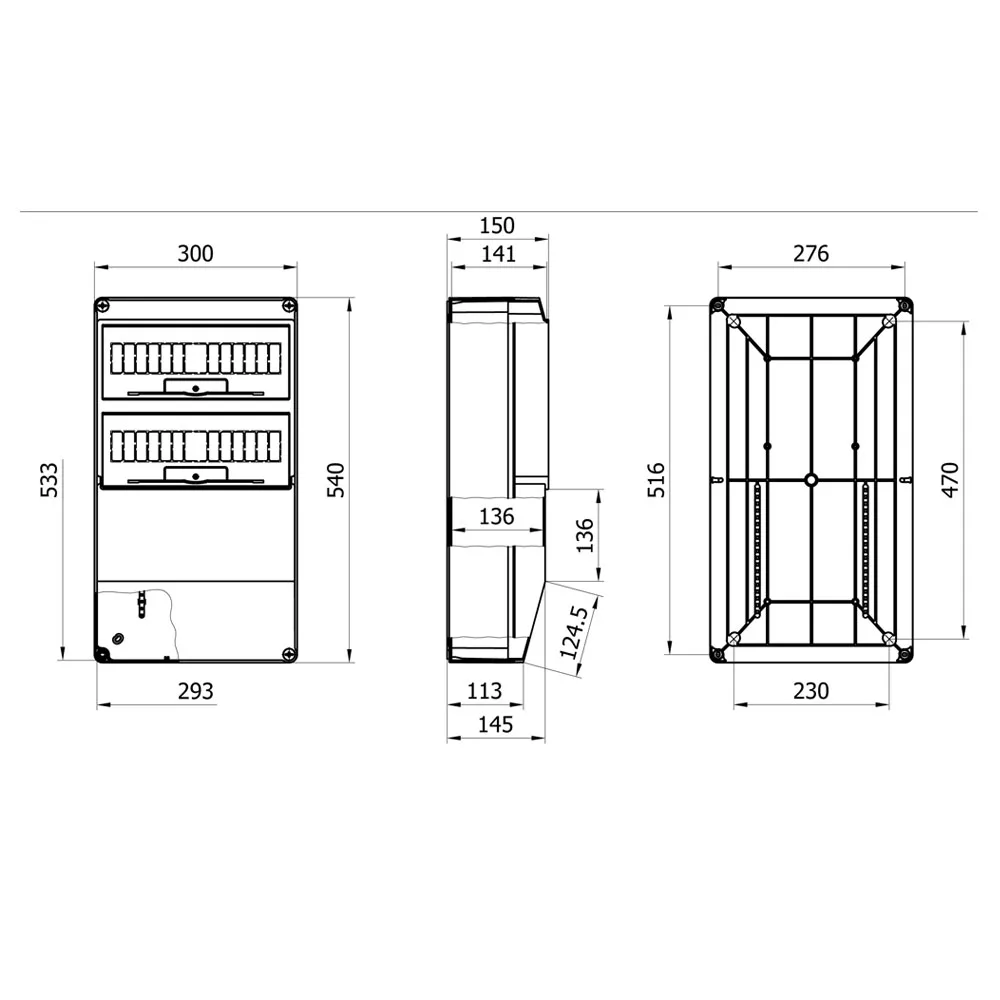

Outside Dimension Width (mm)
300
Outside Dimension Length (mm)
540

Thermoplastic Combination Box 300x540x150mm IP66 Module No:2×14 Hinged Product Name Thermoplastic Combination Box External Dimension Width (mm) 300 External Dimension Length (mm) 540 External Dimension Depth (mm) 150 Internal Dimension Width (mm) 293 Internal Dimension Length (mm) 533 Internal Dimension Depth (mm) 141 Horizontal Screwing Distance (mm) - Vertical Screwing Distance (mm) - Specifications 2×14 [...]

Product Code 40209505
Product Name Thermoplastic Combination Box
Outside Dimension Width (mm) 300
Outside Dimension Length (mm) 540
Outside Dimension Depth (mm) 150
Inside Dimension Width (mm) 293
Inside Dimension Length (mm) 533
Inside Dimension Depth (mm) 141
Horizontal Screwing Distance (mm) -
Vertical Screwing Distance (mm) -
Features 2x14 Module Hinged
Cover Connection Type Plastic Screw
Protection Class IP66
Impact Protection IK06
Gasket PU
Glow Wire Test Value 650ºC
Number of Cable Entries 6
Burst Cable Entry Size M40-50
Included Accessories -
Number of Modules -
Terminal Rail Available
Number of Lockouts -
Color Gray RAL 7035
Operating Temperature HF ABS
Body Material HF ABS+ Transparent PC
Contact Material Grey - RAL 7044
Standard -
Number of Boxes -
HS 8536.90.10.00.00
Country of Origin Turkey
Document Not Found.
Certificate Not Found.
