Aluminum and Thermoplastic Junction PlugsEmpty Combination Boxes

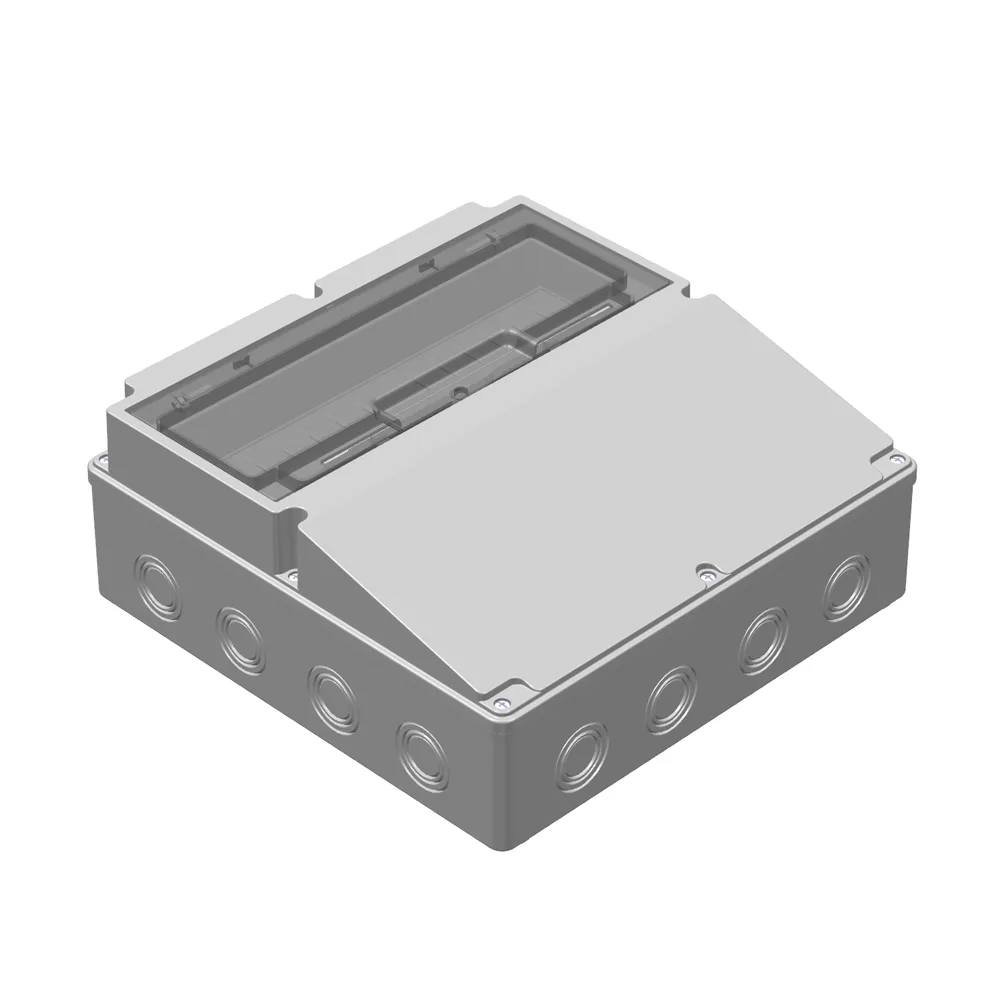

40207505 - Thermoplastic Combination Box 290x290x114mm IP66 Module No:14

Product Code
40207505
Product Name
Thermoplastic Combination Box
Outside Dimension Width (mm)
298
Outside Dimension Length (mm)
298

Thermoplastic Combination Box 290x290x114mm IP66 Module No:14 Product Name Thermoplastic Combination Box External Dimension Width (mm) 298 External Dimension Length (mm) 298 External Dimension Depth (mm) 120 Internal Dimension Width (mm) 290 Internal Dimension Length (mm) 290 Internal Dimension Depth (mm) 114 Horizontal Screwing Distance (mm) 240 Vertical Screwing Distance (mm) 240 Specifications 14 Module [...]

Product Code 40207505
Product Name Thermoplastic Combination Box

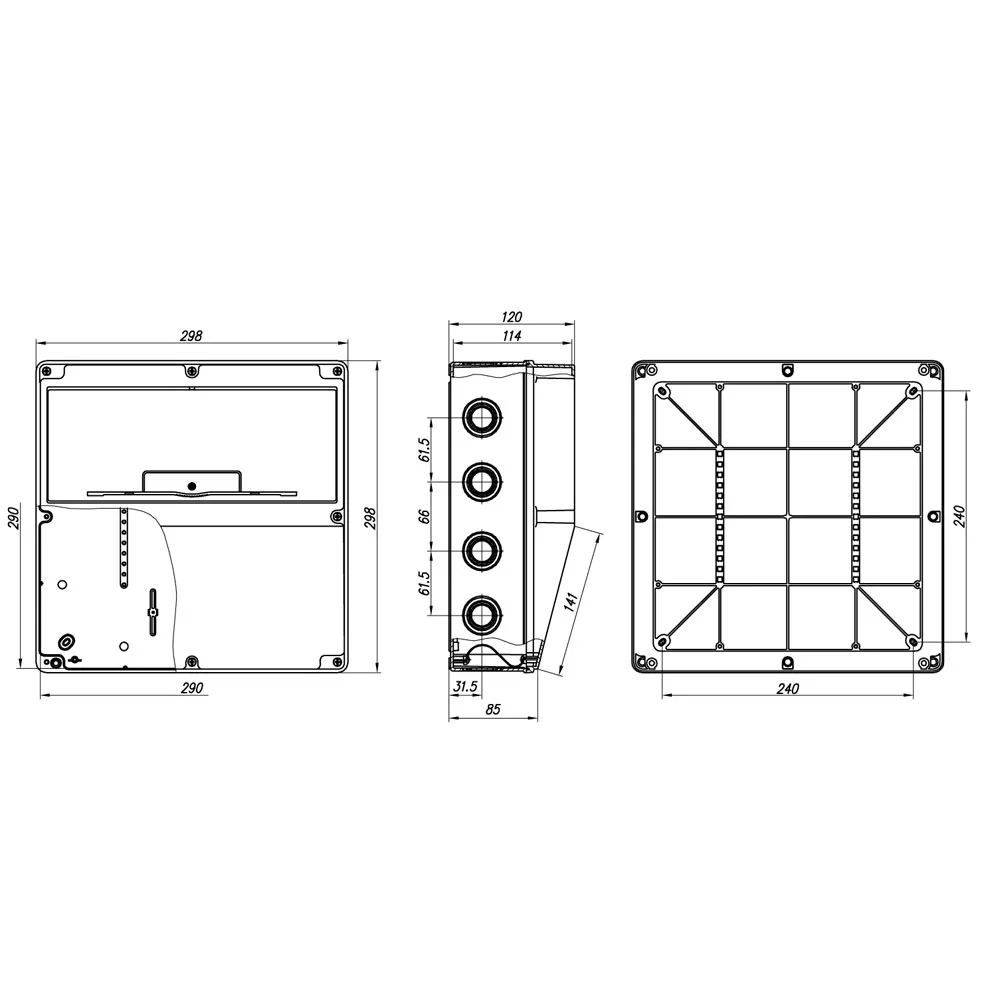

Outside Dimension Width (mm) 298
Outside Dimension Length (mm) 298
Outside Dimension Depth (mm) 120
Inside Dimension Width (mm) 290
Inside Dimension Length (mm) 290
Inside Dimension Depth (mm) 114
Horizontal Screwing Distance (mm) 240
Vertical Screwing Distance (mm) 240
Features 14 Modules
Cover Connection Type Stainless Steel Screw
Protection Class IP66
Impact Protection IK06
Gasket PU
Glow Wire Test Value 650ºC
Number of Cable Entries 16
Burst Cable Entry Size PG 16-21-29
Included Accessories 1xPG21+1xPG29 Soft Cable Gland
Number of Modules 14
Terminal Rail Available
Number of Lockouts -
Color Gray RAL 7035
Operating Temperature HF ABS
Body Material HF ABS+ Transparent PC
Contact Material Grey - RAL 7044
Standard TSE
Number of Boxes 5
HS 8536.90.10.00.00
Country of Origin Turkey
Document Not Found.
Certificate Not Found.
