Aluminum and Thermoplastic Junction PlugsSurface Mounted Fuse Boxes

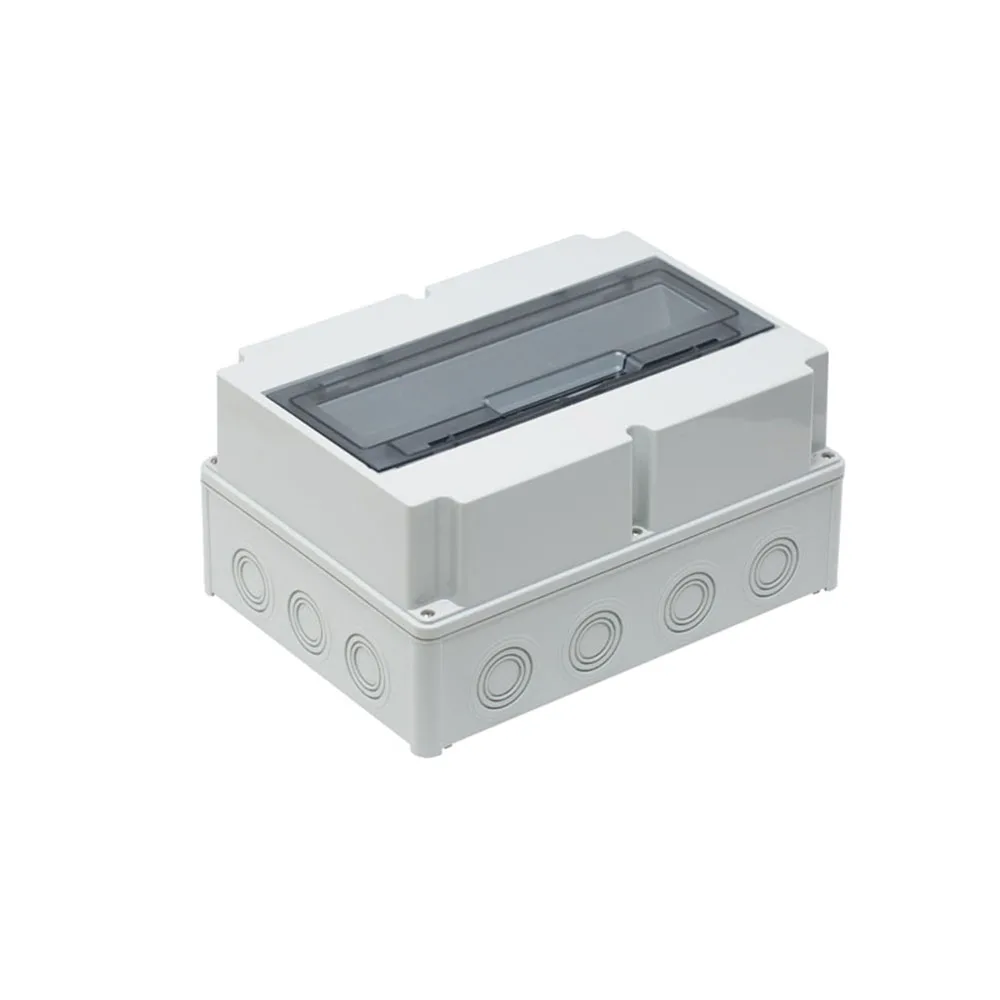

40206005 - Surface Mounted Fuse Box 210x290x140mm IP67 IK06 14 Modules

Product Code
40206005
Product Name
Surface Mounted Fuse Box

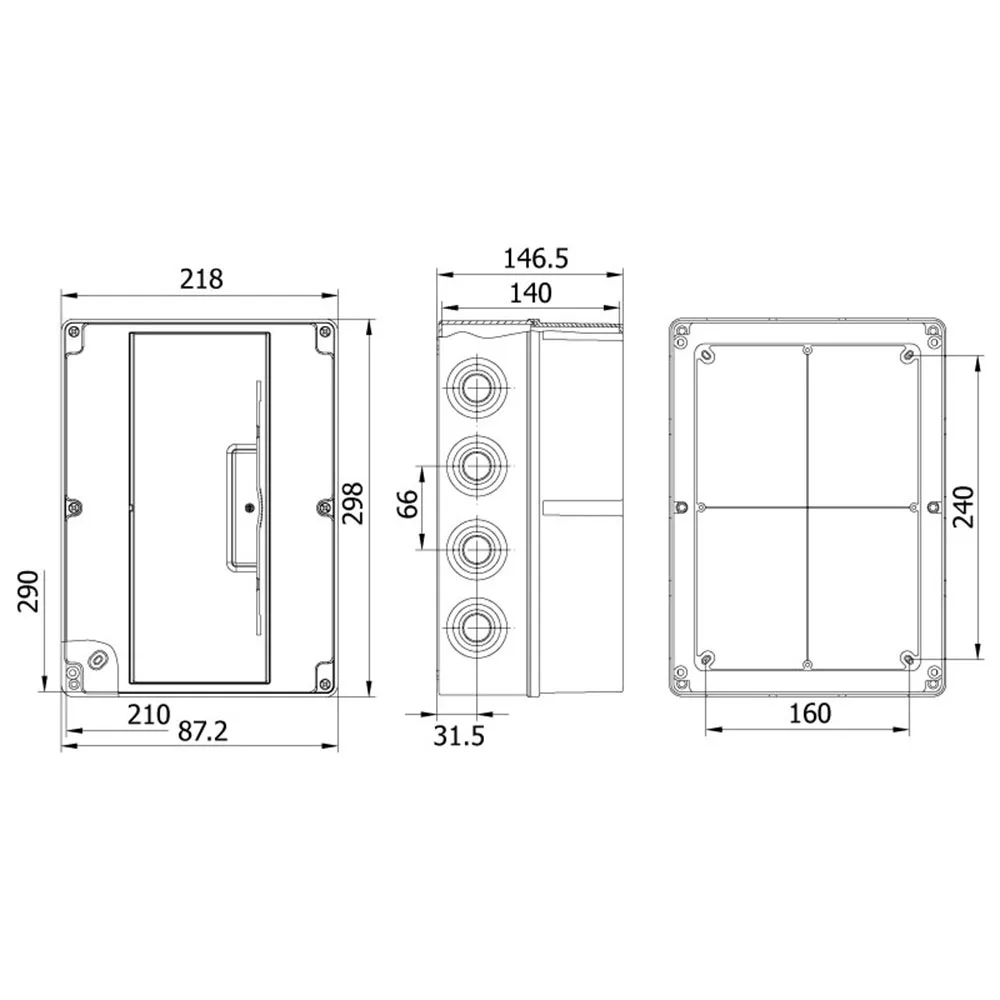

Outside Dimension Width (mm)
218
Outside Dimension Length (mm)
298

Surface Mounted Fuse Box 210x290x140mm IP67 IK06 14 Module Product Name Surface Mounted Fuse Box External Dimensions Width (mm) 218 External Dimensions Length (mm) 298 External Dimensions Depth (mm) 146.5 Internal Dimensions Width (mm) 210 Internal Dimensions Length (mm) 290 Internal Dimensions Depth (mm) 140 Horizontal Screwing Distance (mm) 160 Vertical Screwing Distance (mm) 240 [...]

Product Code 40206005
Product Name Surface Mounted Fuse Box
Outside Dimension Width (mm) 218
Outside Dimension Length (mm) 298
Outside Dimension Depth (mm) 146.5
Inside Dimension Width (mm) 210
Inside Dimension Length (mm) 290
Inside Dimension Depth (mm) 140
Horizontal Screwing Distance (mm) 160
Vertical Screwing Distance (mm) 240
Features 14 Modules
Cover Connection Type Screw
Protection Class IP67
Impact Protection IK06
Gasket PU
Glow Wire Test Value 650ºC
Number of Cable Entries 14
Burst Cable Entry Size PG 16-21-29
Included Accessories 1xPG21 + 1xPG29 Stepped Soft Union
Number of Modules 14
Terminal Rail Available
Number of Lockouts -
Color Gray RAL 7035
Operating Temperature HF ABS
Body Material HF ABS + Transparent PC
Contact Material Grey - RAL 7044
Standard TSE
Number of Boxes 6
HS 8536.90.10.00.00
Country of Origin Turkey
Document Not Found.
Certificate Not Found.
